20. AXES CONTROL

B–63682EN/01

NC FUNCTION

140

The traveling command of master axis is given to two motors of master

and slave axes in a simple synchronous control. However, no

synchronous error compensation or synchronous error alarm is detected

for constantly detecting the position deviation of the master and slave

axes to compensate the deviation.

Simple synchronous operation is allowed in the automatic operation and

in the manual operation such as manual continuous feed, manual handle

feed, incremental feed, or manual reference point return.

In the manual reference point return, the master and slave axes similarly

move until the deceleration operation is performed. After that, the

detection of grid is performed independently.

The pitch error and backlash compensation are independently performed

for the master and slave axes.

An input signal from PMC can be select whether the slave axis traveling

is carried out based on the traveling command for that axis as in normal

case or whether the slave axis traveling is carried out while synchronizing

with the traveling of the master axis.

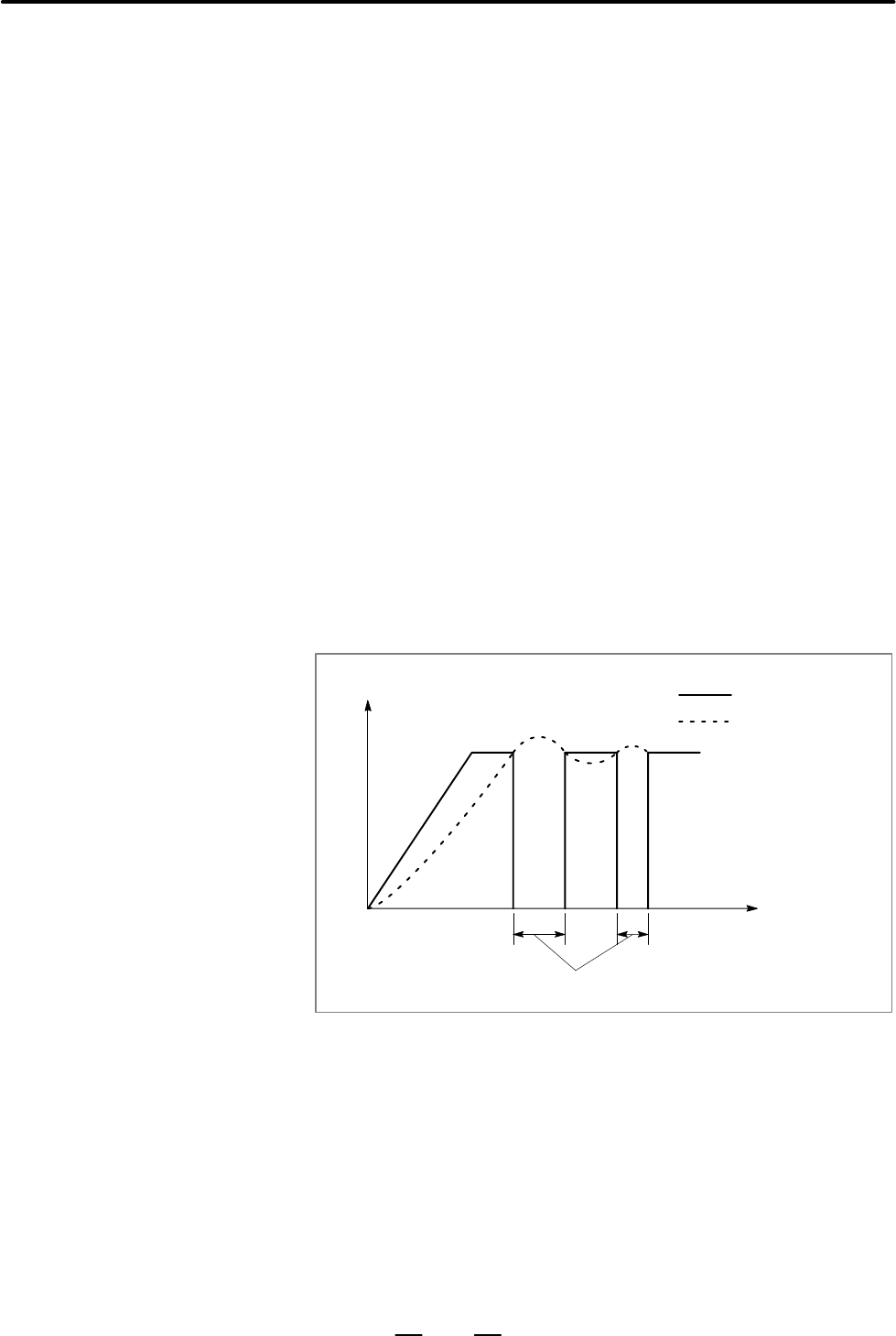

This function usually checks position deviation amount during motion.

If the amount exceeds the parameter set ”feed stop position deviation

amount”, pulse distribution and acceleration/deceleration control is

stopped for the while exceeding, and move command to the positioning

control circuit is stopped.

The overshoot at rapid feed acceleration is thus kept to a minimum.

Feed stop

Speed

Time

Specified speed

Actual speed

20.6

SIMPLE

SYNCHRONOUS

CONTROL

20.7

FEED STOP
