B–63682EN/01

20. AXES CONTROL

NC FUNCTION

141

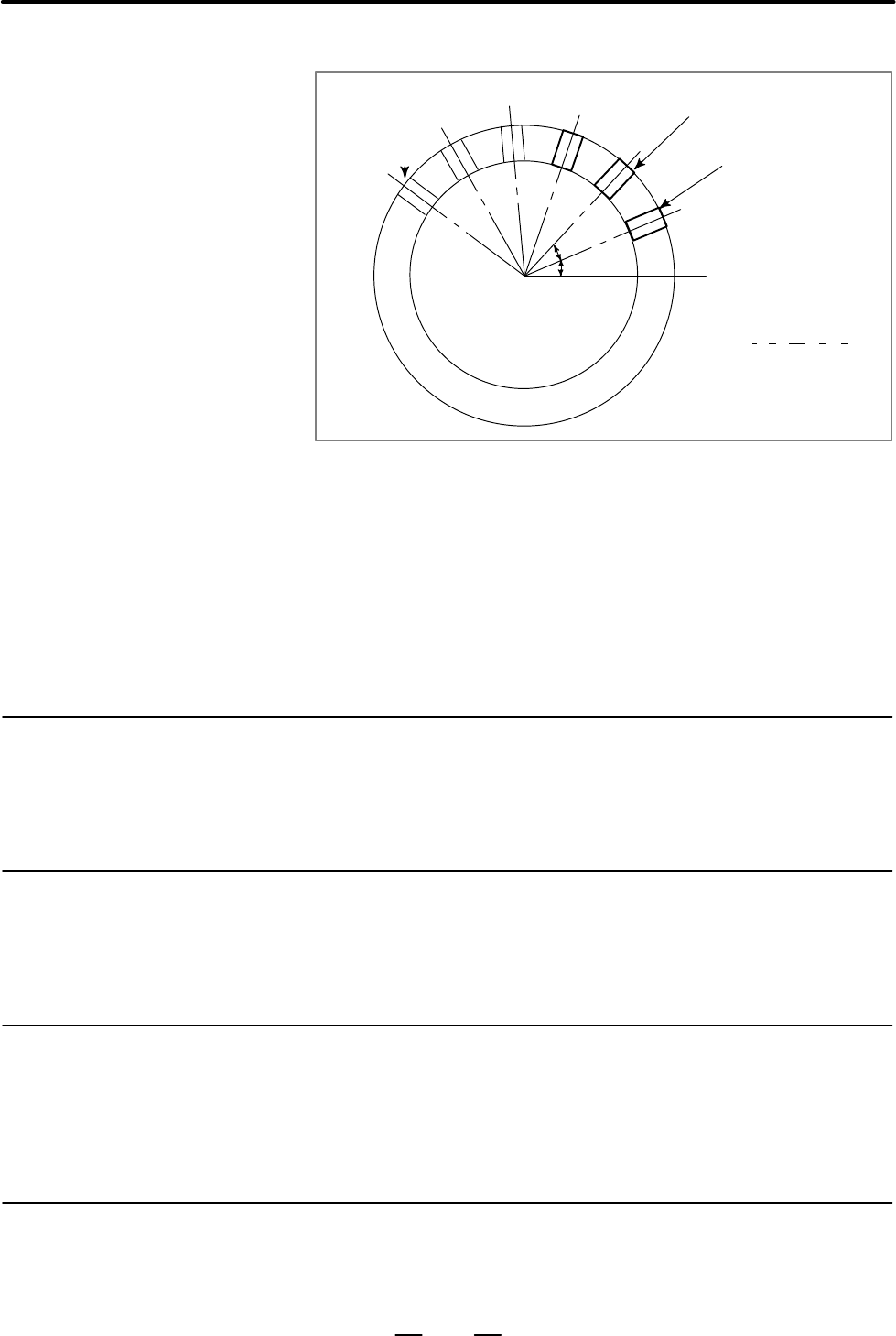

∆θ

G77Ir Jθ P∆θ Kn Cxx ;

Cxx+∆θx (n–1)

Cxx+∆θ

Cxx

The angle position of the die (Tool) can be altered by the command from

tape, memory, and MDI.

In the past, a plurality of dies were required when the location was

different, even when the die shape was the same, but one die is sufficient

by optionally changing the die angle position, and 4 corners of a work can

be chamfered with a single die, thus reducing the die change time. In the

bolt hole circle, arc pattern function, and circular nibbling, the C–axis is

controlled automatically so that one side of a die always faces the center

of the circle at each hole position.

C–axis command is always regarded as an absolute command regardless

of incremental command (G91) and absolute command (G90).

C axis can be automatically positioned to the commanded position in the

smaller rotation angle from the present position.

This function allows a T command to be executed after positioning the

C–axis to the reference point automatically when the T command is

specified on the tape, memory or MDI if the T–axis can move only when

the C–axis is at the reference point (the fixed position on the machine at

which C–axis can be reached by the manual reference point return).

Synchronous C–axis control can be performed for the punch and die by

effecting control using either the same servo motor or separate servo

motors.

20.8

C AXIS CONTROL

20.8.1

Relation with

Absolute/Incremental

Command (G90/G91)

20.8.2

Positioning to Smaller

Angle Rotation

Direction

20.8.3

Relation Between T

Command and C Axis

Command

20.8.4

Controlling the Punch

and Die
