Series 16i/18i/160i/180i-PB Descriptions Page 222

Descriptions
26. PART PROGRAM STORAGE
AND EDITING B–63682EN/01
NC FUNCTION
198

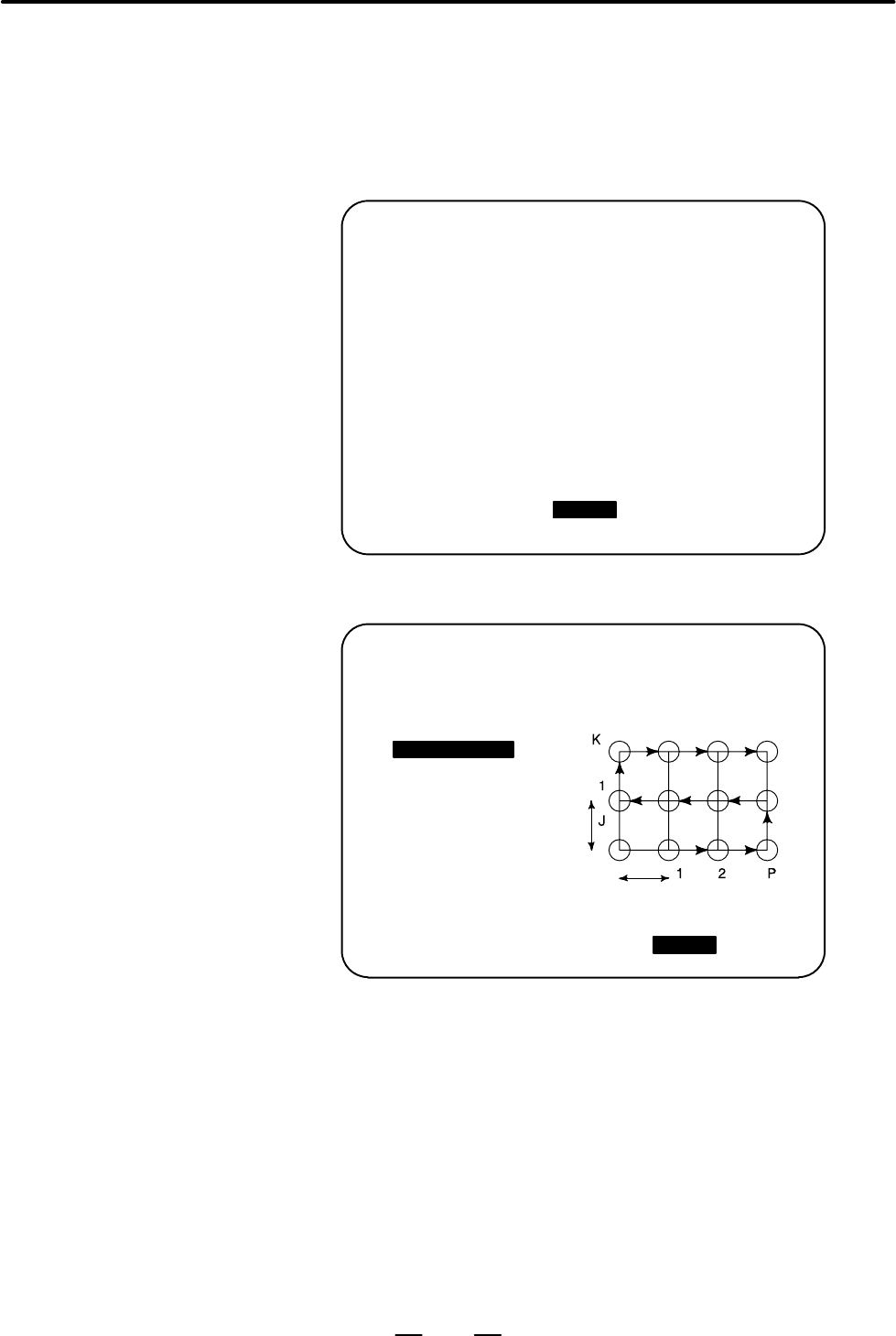

The following two screens can be displayed with graphic data for
guidance in programming in the CNC format:
D G code list
D Standard format of a G-code block
Programs can be created by referring to guidelines and entering necessary
data interactively.
± When G78 is selected
PROGRAM 03333 N00000
G72: BASE POINT COMMAND
G73: MULTI-PARTS X (O)
G74: MULTI-PARTS Y (O)
G75: AUTOMATIC REPOSITINING
G76: LINE AT ANGLE
G77: ARC
G78: GRID 1
G79: GRID 2
G84: ROTATION ON (O)
G85: ROTATION OFF (O)
G86: SHEAR PROOF
G87: SQUARE
)_
EDIT **** *** *** 15:10:08
[PRGAM ] [ ] [G.MENU.] [ BLOCK ] [ ]
PROGRAM
03333 N00000
G78: GRID 1
G78
I
P
J
K
T
C
;
EDIT **** *** *** 15:11:40
[PRGAM ] [ ] [G. MENU] [ BLOCK ] [(OPRT)]
The password function (bit 4 (NE9) of parameter No. 3202) can be locked
using parameter No. 3210 (PASSWD) and parameter No. 3211
(KEYWD) to protect program Nos. 9000 to 9999. In the locked state,
parameter NE9 cannot be set to 0. In this state, program Nos. 9000 to 9999
cannot be modified unless the correct keyword is set.
A locked state means that the value set in the parameter PASSWD differs
from the value set in the parameter KEYWD. The values set in these
parameters are not displayed. The locked state is released when the value
already set in the parameter PASSWD is also set in parameter KEYWD.
When 0 is displayed in parameter PASSWD, parameter PASSWD is not
set.
26.7
CONVERSATIONAL
PROGRAMMING OF
FIGURES
26.8
PASSWORD
FUNCTION
