10. TOOL FUNCTIONS

NC FUNCTION

The tools of a multiple–tool system are selected by turning the C axis.

A tool is selected by placing it at the tool reference position. This position

is parallel to the Y axis and on the center line of the tool holder of a

multiple–tool system.

For each tool in a multiple–tool system, the angle the tool makes with the

tool reference position is set on the tool registered screen. When the T

code of a multiple–tool system is issued, the CNC system sends an

internal command to the C axis, indicating the angle with the tool

reference position corresponding to the selected tool. The CNC system

places the selected tool in the tool reference position.

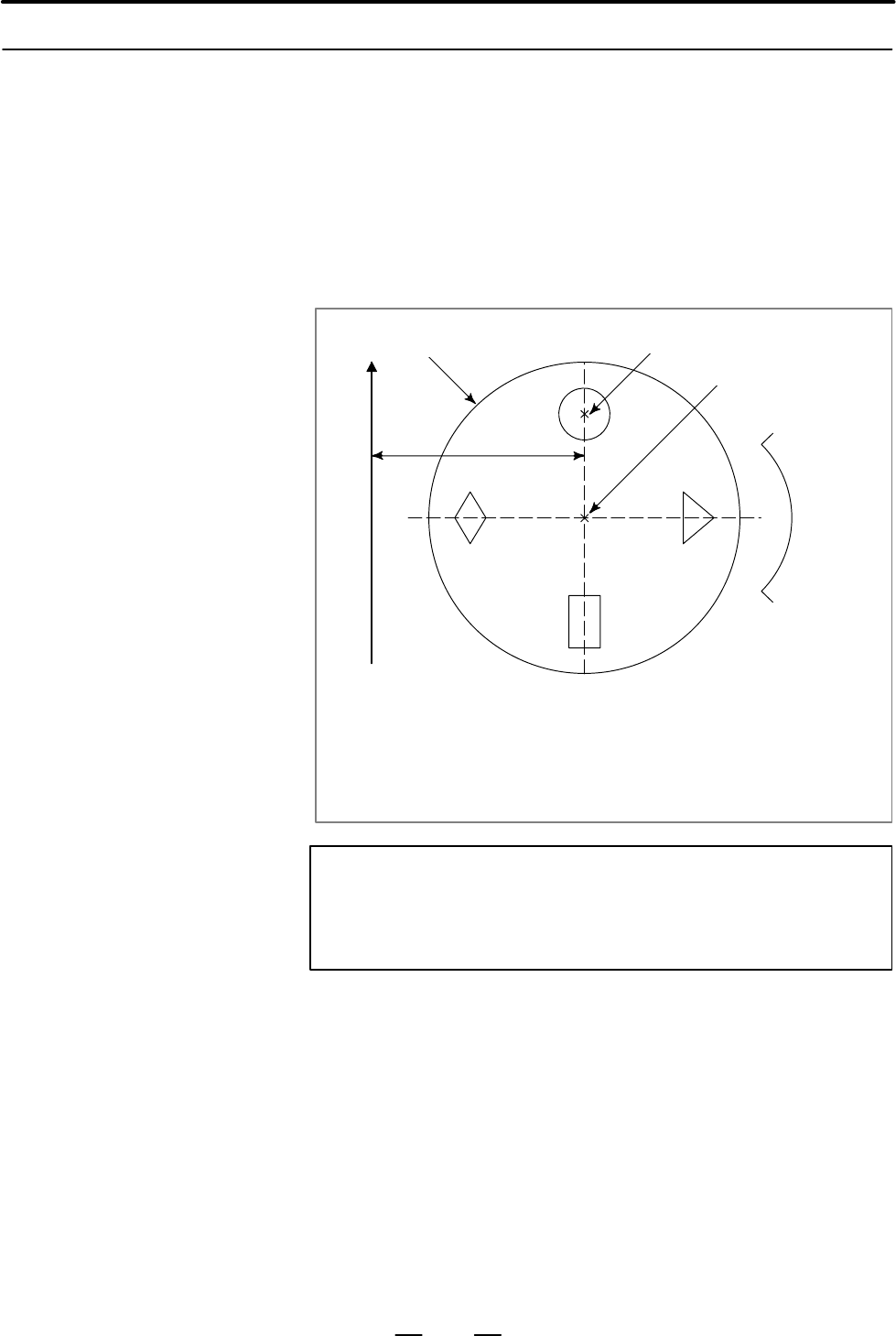

Parallel

T1104 T1102

T1103

T1101

Multiple–tool system

T11

Tool reference posi-

tion

Center of the tool

holder

Angle with the tool reference

position

T1101= 0.00°

T1102= 90.00°

T1103= 180.00°

T1104= 270.00°

–

Direction

of rotation

CAUTION

Setting the angle with the tool reference position to 0

indicates the tool that is selected when the indexing of the

multiple–tool system is finished.

10.4.2

Relationship Between

the Multiple–tool

System and the C Axis
