Servo Amplifier Unit Alpha Series Descriptions Page 89

Descriptions
B–65192EN/02
9. CONNECTION
73
(2) For connection to Series 16–A/B, Series 18–A, Series 15–B, Series
21– TA, or Power r Mate–D/F (TYPE A I/F)

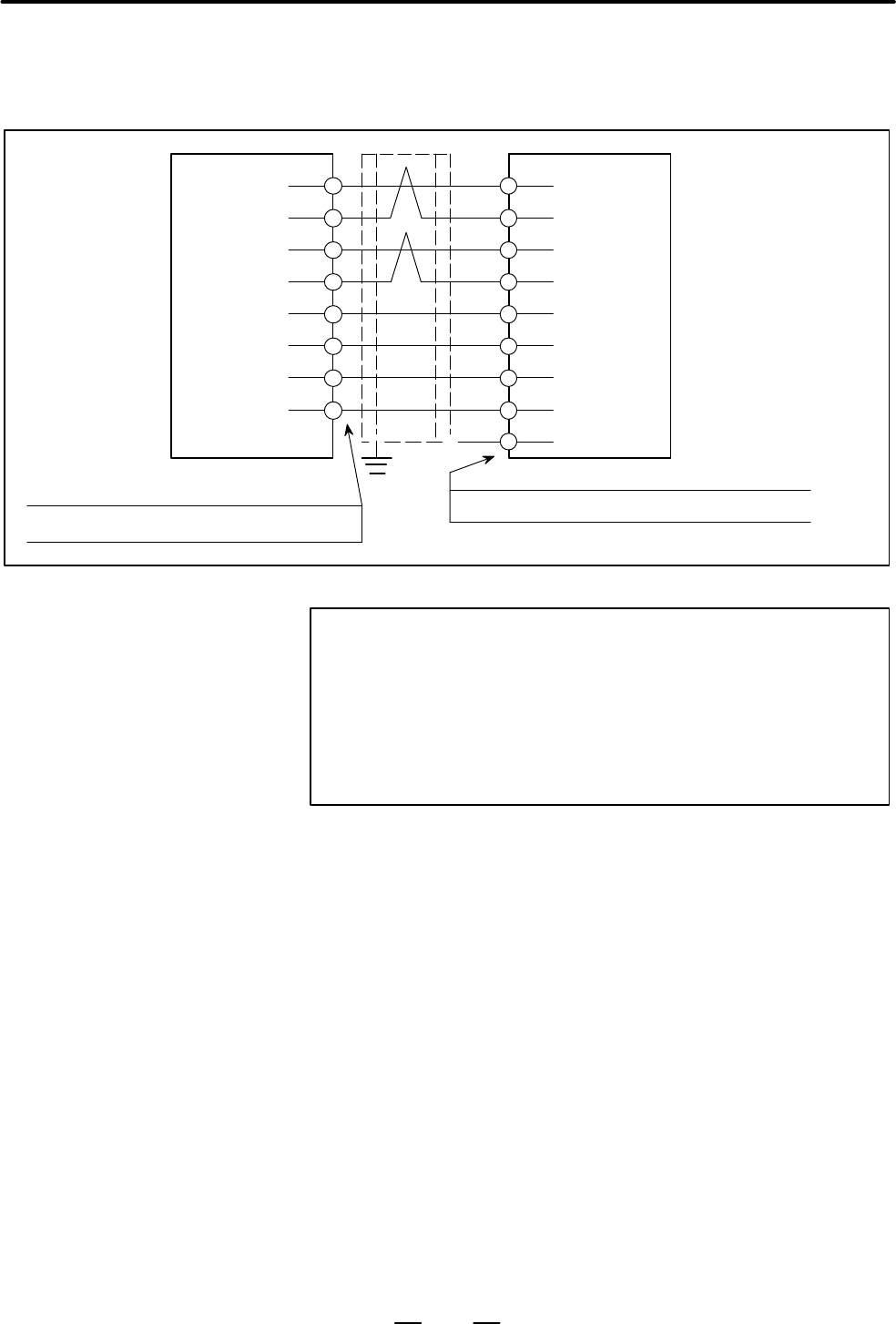

(a) For model α1/3000, α2/2000, α2/3000
NC SD (12)
(2) *SD (13)
(5) REQ (5)
(6) *REQ (6)
(9, 18, 20) +5V (8, 15)
(12, 14) 0V (1, 2, 3)
(16) 0VA (10)
Note) Note)
(7) +6VA (14)
Shield (4)
FF
Connector:
Connector: HDAB–15S (HIROSE ELECTRIC)
FI40–2015S (HIROSE ELECTRIC)
Cover : HDAW–15–CV (HIROSE ELECTRIC)
(1) Motor
Case: FI–20–CV (HIROSE ELECTRIC)
{}
NOTE
For incremental pulse coders, pins 7 and 16 of the NC and
pins 10 and 14 of the motor need not be connected.
Connecting these pins, however, will not result in any
problems. Therefore, a cable designed for use with an
absolute pulse coder can also be used with an incremental
pulse coder.
