3.INPUTTING AND OUTPUTTING PARAMETERS THROUGH THE READER/PUNCHER INTERFACE B-63950EN/02
- 6 -
3.2 INPUTTING PARAMETERS THROUGH THE
READER/PUNCHER INTERFACE
1 Place the NC in the emergency stop state.
2 Enable parameter writing.
2-1 To display the setting screen, press the
OFFSET
SETTING
function key
as many times as required, or alternatively press the
OFFSET
SETTING
function key once, then the [SETING] section select soft
key. The first page of the setting screen appears.
2-2 Position the cursor on "PARAMETER WRITE" using the
cursor move keys.
2-3 Press the [(OPRT)] soft key to display operation select soft
keys.
2-4 To set "PARAMETER WRITE=" to 1, press the [ON:1]
soft key, or alternatively enter 1, then press the [INPUT]
soft key. From now on, parameters can be set.
At the same time an alarm condition (SW0100
PARAMETER WRITE ENABLE) occurs in the NC.
3 To select the parameter screen, press the
SYSTEM
function key as
many times as required, or alternatively press the
SYSTEM
key
once, then [PARAM] soft key.
4 Press the [(OPRT)] soft key to display operation select keys, then
press the forward menu key located at the right-hand side of the
soft keys to display another set of operation select soft keys
including [READ].

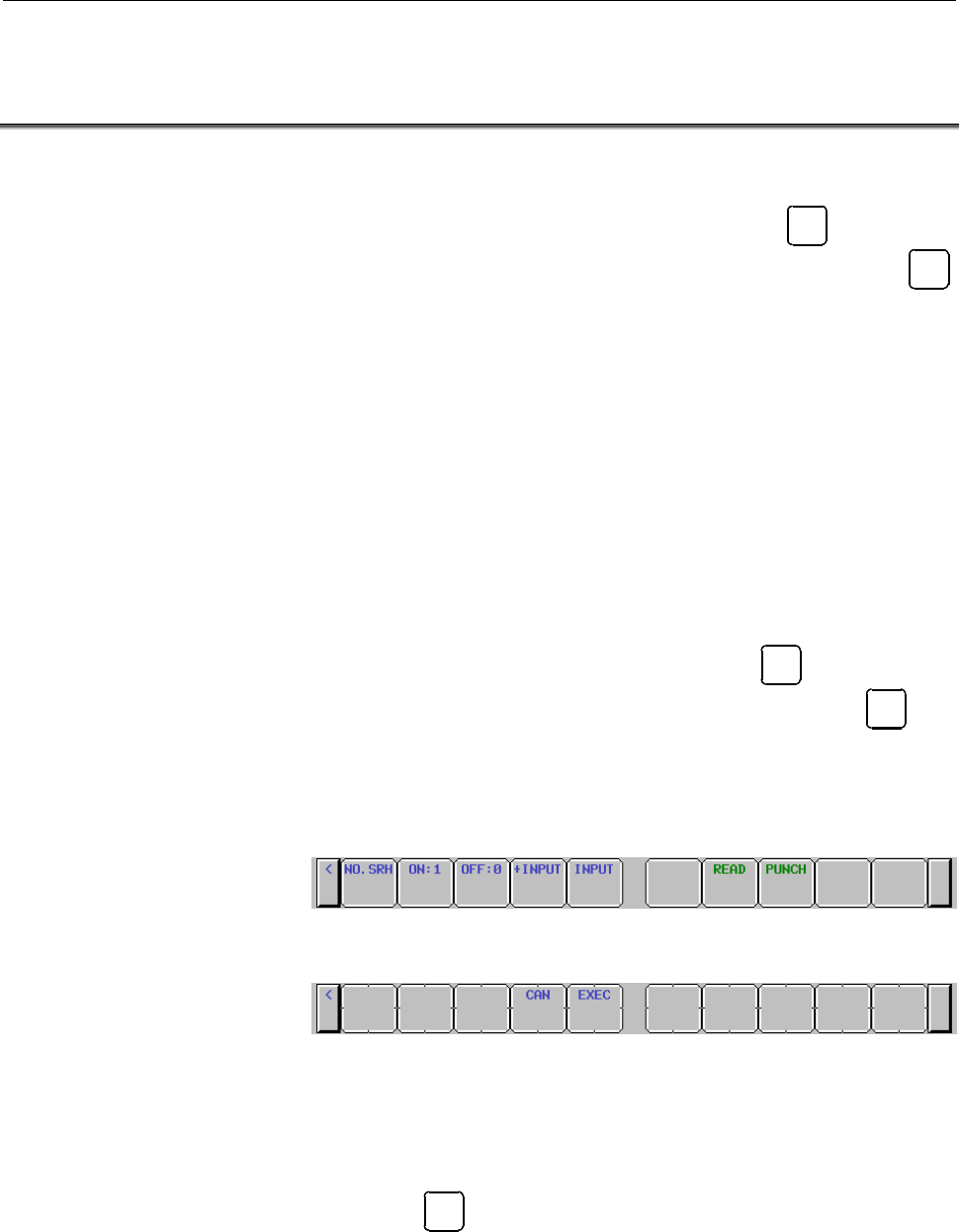

5 Pressing the [READ] soft key changes the soft key display as
shown below:
6 Press the [EXEC] soft key to start inputting parameters from the
input/output device. When parameters are being input,
"READ" blinks in the state display field on the lower part of the
screen.
7 When parameter input terminates, "READ" stops blinking. Press
the
RESET
key to interrupt parameter input.
8 When parameter read terminates, "INPUT" stops blinking, and
an alarm condition (PW0100) occurs in the NC. Turn it off
before continuing operation.
