4.DESCRIPTION OF PARAMETERS B-63950EN/02
- 196 -
3735
Minimum clamp speed of the spindle motor
[Input type] Parameter input
[Data type] Word path
[Valid data range] 0 to 4095
Set the minimum clamp speed of the spindle motor.
Setting value =
(Minimum clamp speed of the spindle motor / Maximum spindle
motor speed) × 4095
3736
Maximum clamp speed of the spindle motor
[Input type] Parameter input
[Data type] Word path
[Valid data range] 0 to 4095
Set the maximum clamp speed of the spindle motor.
Setting value =
(Maximum clamp speed of the spindle motor / Maximum spindle
motor speed) × 4095

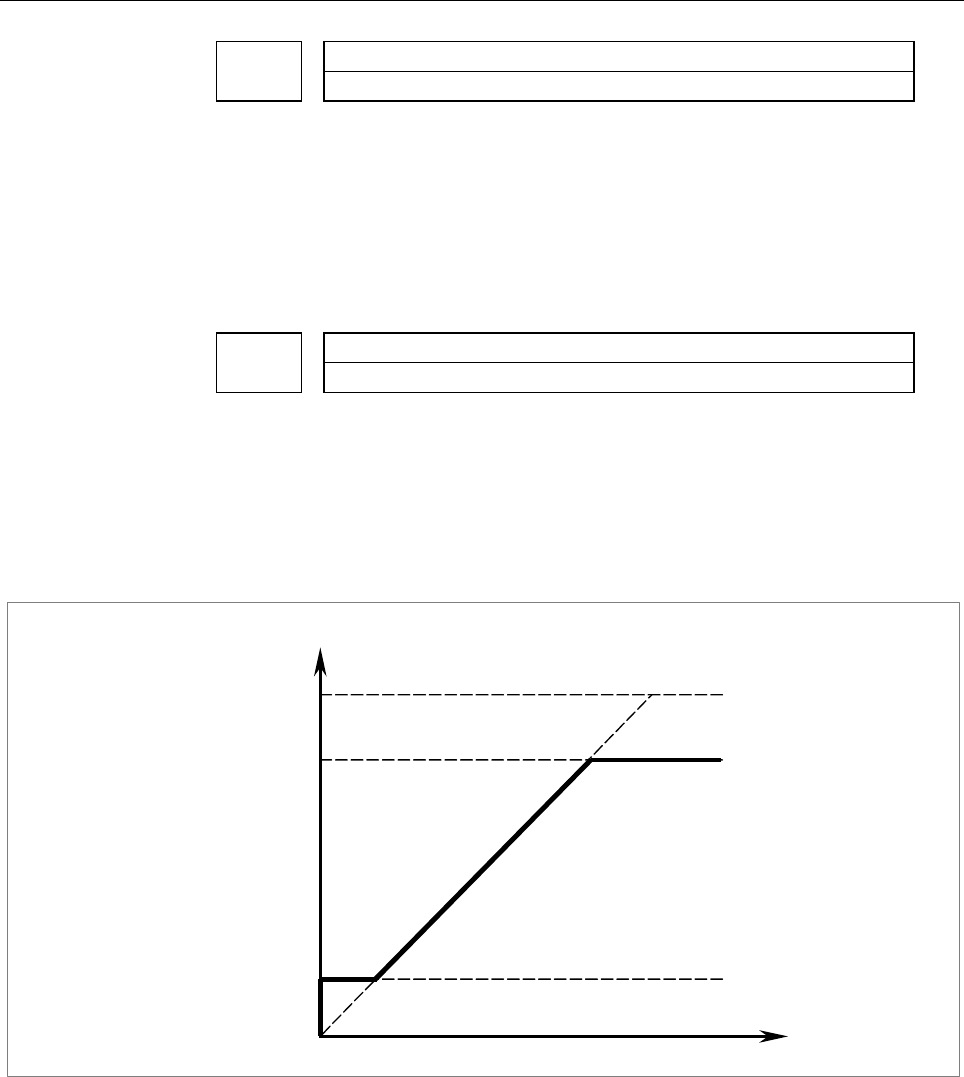

Spindle motor max. clamp speed
(Parameter No.3736)
Spindle speed
(S command)
Max. speed (4095, 10V)
Spindle motor minimum clamp speed
(Parameter No.3735)
Spindle motor speed
