B-63950EN/02 4.DESCRIPTION OF PARAMETERS

- 531 -

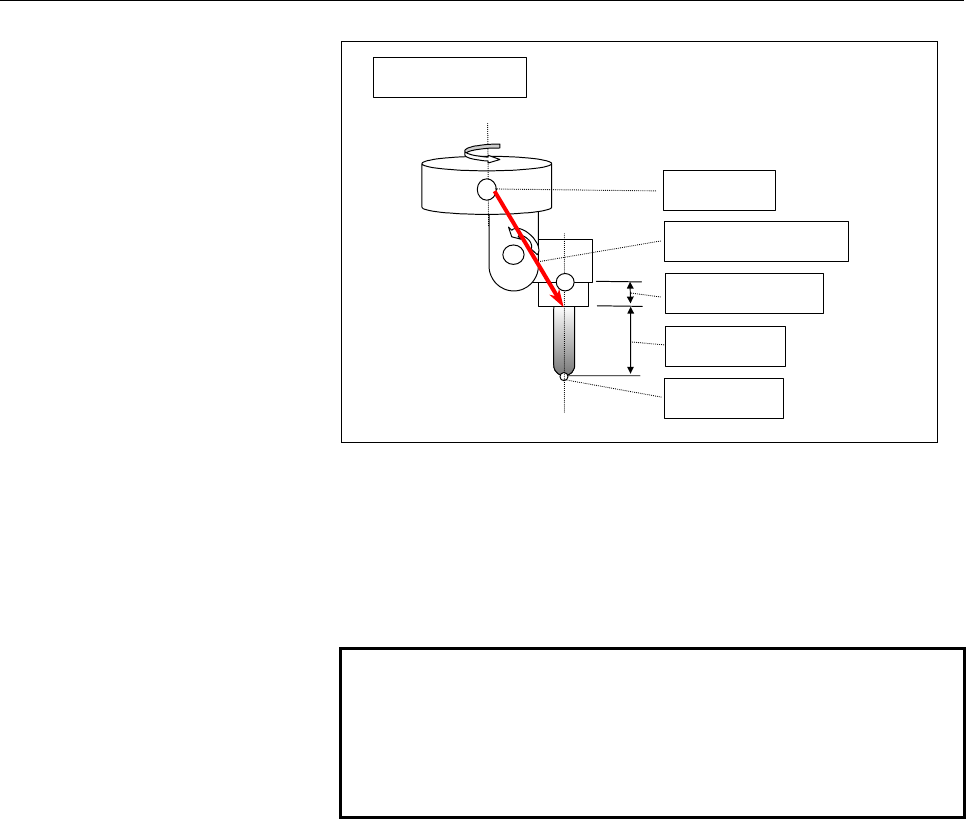

Shift of controlled point

Tool length offset

Tool holder offset

Controlled-point shift vector

Tool center point

Controlled point

Second rotary axis of tool

First rotary axis of tool

[Controlled-point shift vector when automatically calculated]

# 5 SVC The controlled point is:

0: Not shifted.

1: Shifted.

The method of shifting is specified by bit 4 (SPR) of parameter No.

19665.

NOTE

When the machine has no rotation axis for

rotating the tool (when parameter No. 19680 is set

to 12 to specify the table rotation type), the

controlled point is not shifted regardless of the

setting of this parameter.

# 7 ETH The tool holder offset function in tool length compensation is:

0: Disabled.

1: Enabled.
