30i/300i/300is-Model A, 31i/310i/310is-Model A and A5, Parameter manual Page 546

Parameter manual

Page of 581

/ 581

4.DESCRIPTION OF PARAMETERS B-63950EN/02

- 534 -

19681 Controlled-axis number for the first rotation axis

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0 to Number of controlled axes

Set the controlled-axis number for the first rotation axis.

For a hypothetical axis (when bit 0 (IA1) of parameter No. 19696 is 1),

set 0.

19682 Axis direction of the first rotation axis

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0 to 6

Specify the axis direction of the first rotation axis.

1: On X-axis

2: On Y-axis

3: On Z-axis

4: On an axis tilted a certain angle from the X-axis from the

positive X-axis to positive Y-axis

5: On an axis tilted a certain angle from the Y-axis from the

positive Y-axis to positive Z-axis

6: On an axis tilted a certain angle from the Z-axis from the positive

Z-axis to positive X-axis

(A value 4 to 6 is to be set when the inclined rotation axis control

function is used.)

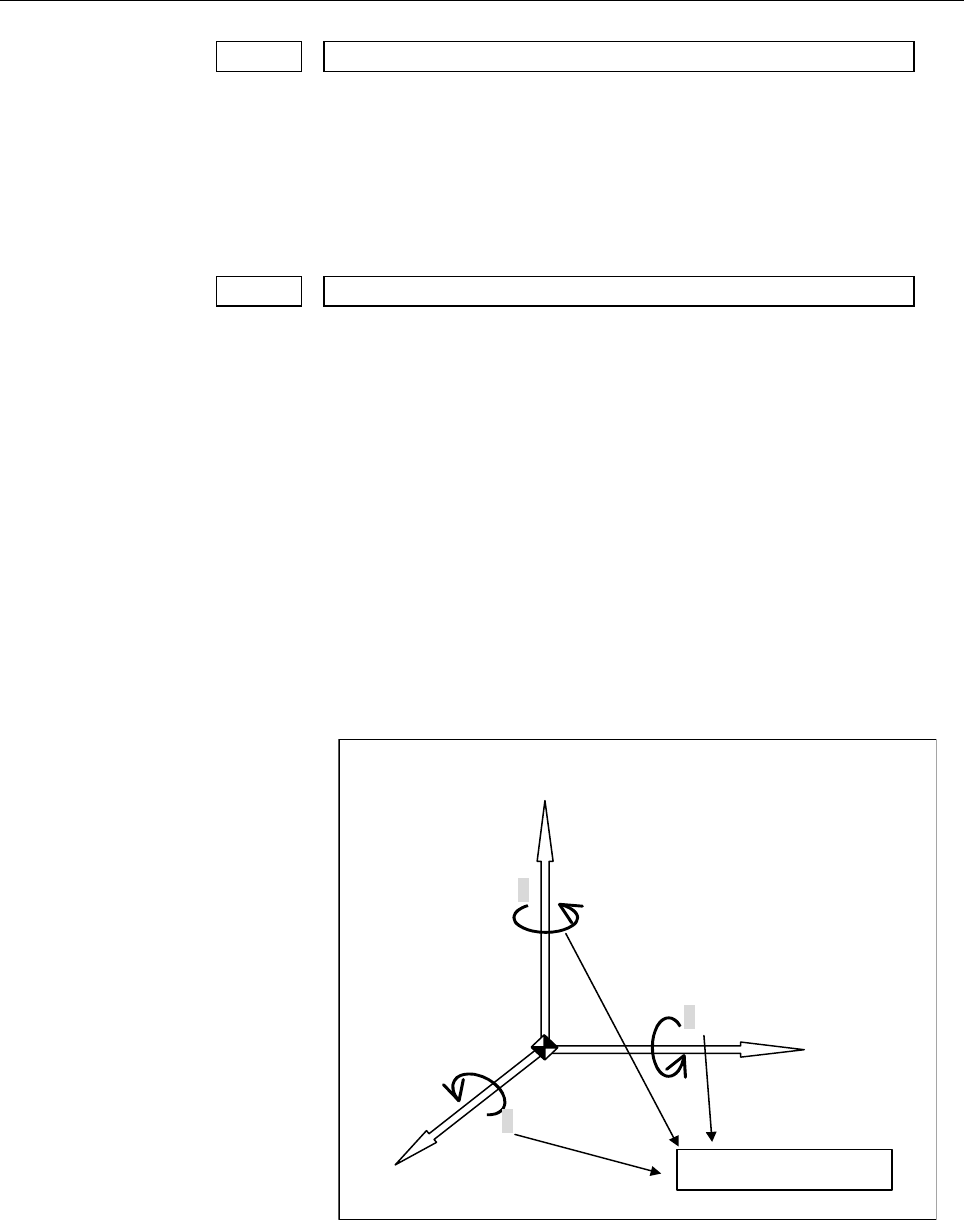

Parameter No.19682

Contents Summary of 30i/300i/300is-Model A, 31i/310i/310is-Model A and A5, Parameter manual

Page 1FANUC Series 30*/300*/300*s-MODEL A FANUC Series 31*/310*/310*s-MODEL A5 FANUC Series 31*/310*/310*s-MODEL A FANUC Series 32*/320*/320*s-MODEL A PARAMETER MANUAL B-63950EN/02
Page 2• No part of this manual may be reproduced in any form. • All specifications and designs are subject to change without notice. The export of this product is subject to the authorization of the government of the country from where the product is exported. In this manual we have tried as much as possi
