Fanuc PMC-Model SD7 Programming Manual Additional Manual Page 11

Additional Manual
FANUC PMC-MODEL SD7
Programming Manual
01 01.11.26
Hanaoka
New
A-78550E
EDIT DATE DESIG.
DESCRIPTION
10/
316
TITLE
DRAW.NO.
1 OVERVIEW

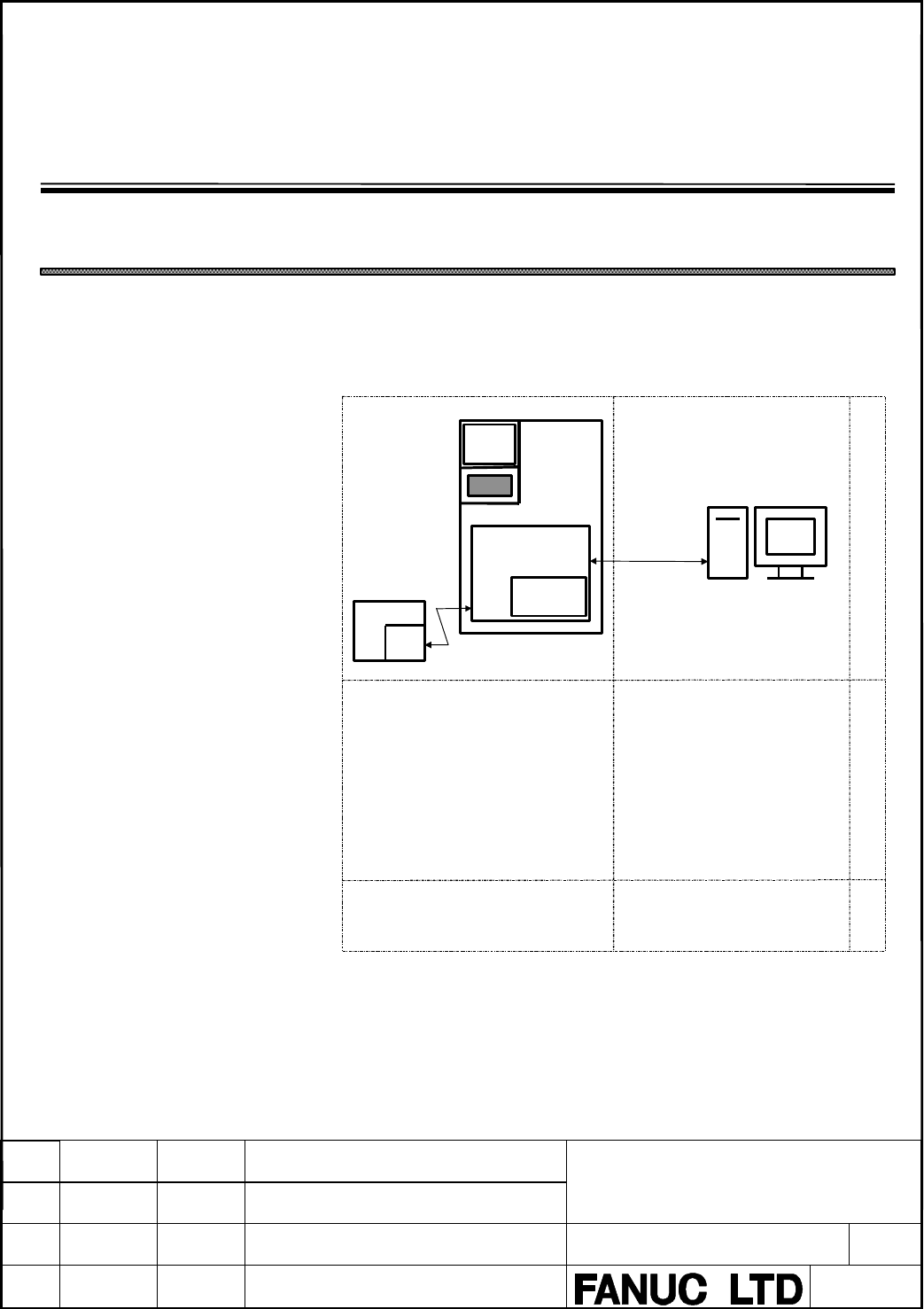

1.1 System Configuration
The PMC-SD7 is used to create and execute sequence programs conforming
to the IEC61131-3 standard. The system requires the following hardware
and software (development software, etc.).
DI/DO
Machine tool
CNC
Built-in PMC
PC
Program
•
Sequence program start/stop
•
Communication service
(up- and down-loading, online monitor)
•
Reference table display/setting
•
Writing of sequence program into flash
memory
•
Sequence program editing, compiling,
down-/up-loading, start/stop
•
Online monitor
•
Reference table display/setting
•
Writing of sequence program into flash
memory
•
Printing
FANUC PMC control software
FAPT LADDER-IIIC integrated in
CIMPLICITY Machine Edition.
Software Function Hardware
Ethernet
RS-232-C
