5.3 Displaying PMC Input/ Output Signals And Internal Relay

(PMCDGN)

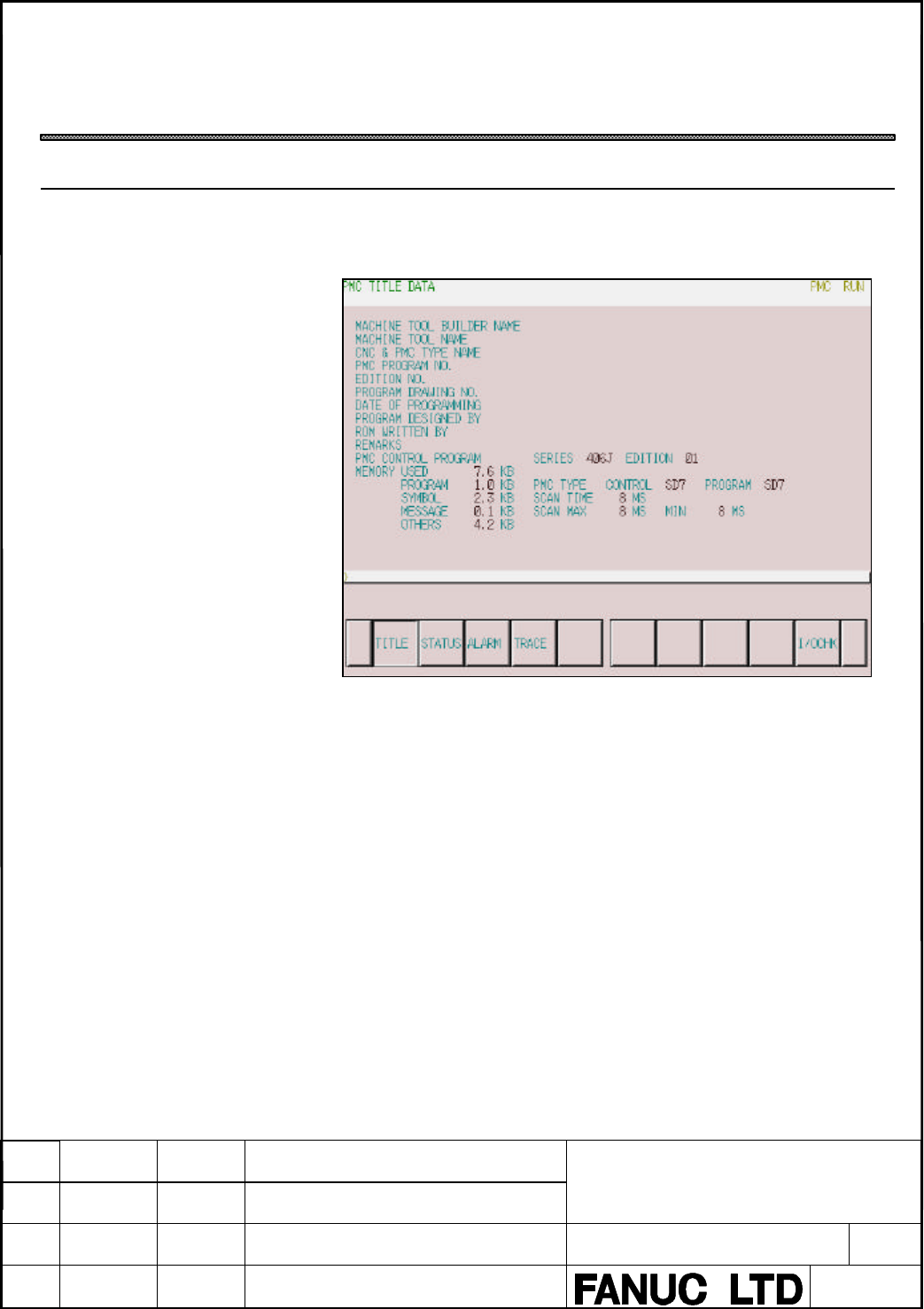

5.3.1 Title Data Display (TITLE)

The title data corresponds to the title of a sequence program. It consists of

the following items:

- Machine tool builder name (32 characters)

- Machine name (32 characters)

- CNC/PMC type (32 characters)

- Sequence program number (4 characters)

- Edition (2 characters)

- Sequence program drawing (32 characters)

- Sequence program creation date (16 characters)

- Sequence program creator name (32 characters)

- ROM writer operator name (32 characters)

- Comment (32 characters)

In addition, the following data is displayed:

- PMC basic software series and edition

- Amount of memory occupied by each set of sequence data

- PMC basic software type and sequence program PMC type

- Current, maximum, and minimum execution time of the ladder program
