Fanuc PMC-Model SD7 Programming Manual Additional Manual Page 241

Additional Manual

Page of 317

/ 317

FANUC PMC-MODEL SD7

Programming Manual

01 01.11.26

Hanaoka

New

A-78550E

EDIT DATE DESIG.

DESCRIPTION

240/

316

TITLE

DRAW.NO.

- SAMPLING TIME

This parameter is displayed when “TIME CYCLE” is set on “SAMPLING

MODE”. The execution time of trace is inputted. The value of “SAMPLING

SESOLUTION” or the number of specified signal address changes the range

of the value that is able to input. The range is displayed on the right of the

edit box.

- SAMPLING FRAME

This parameter is displayed when “SIGNAL TRANSITION” is set on

“SAMPLING MODE”. The number of sampling is inputted. The value of

“SAMPLING SESOLUTION” or the number of specified signal addresses

changes the range of the value that is able to input. The range is displayed

on the right of the edit box.

- STOP CONDITION

Determines the condition to stop the trace. Select one by cursor key or soft

key.

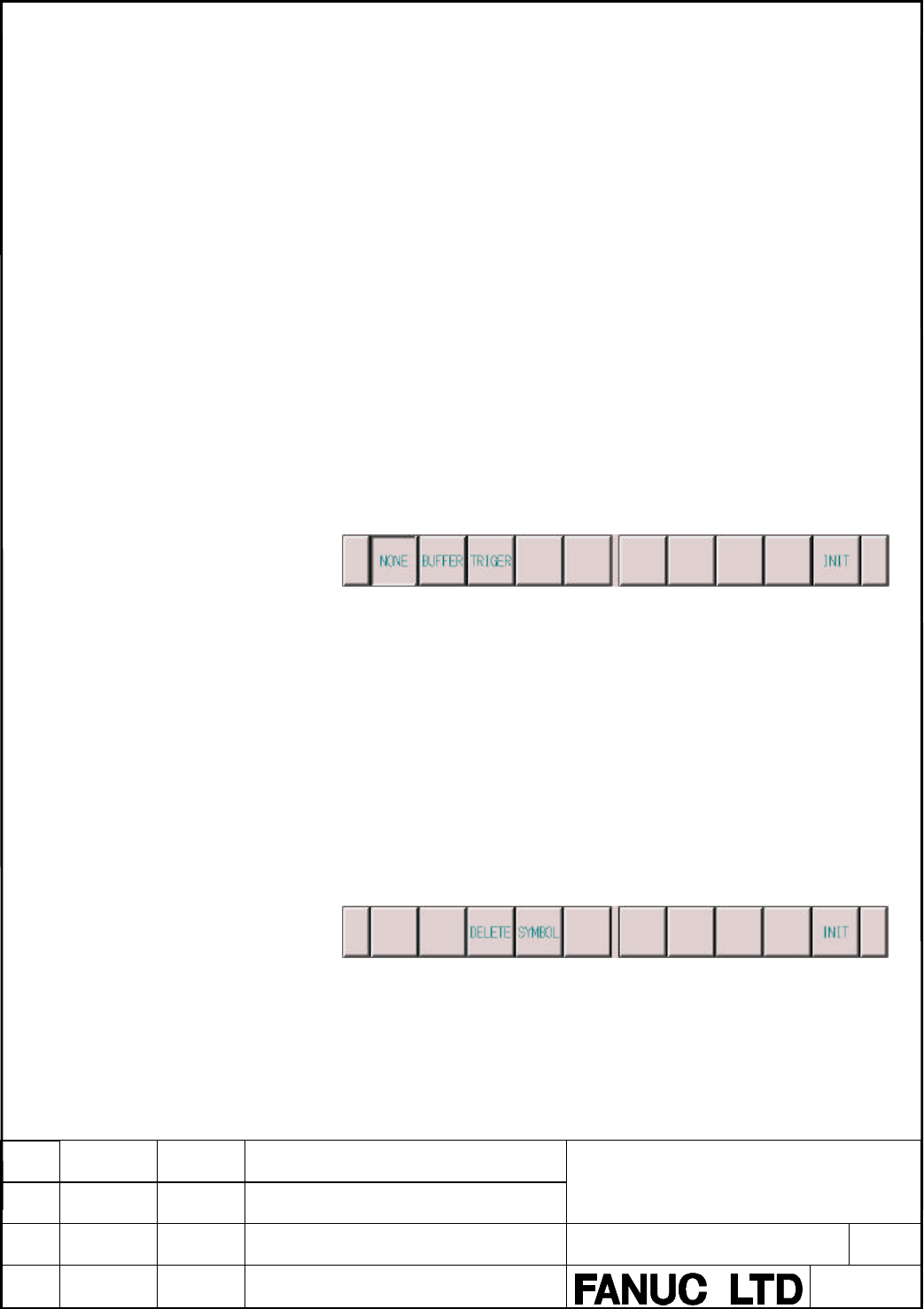

Soft keys display when the cursor is put on “STOP CONDITION”.

Explanation:

NONE Does not stop the tracing automatically.

BUFFER FULL Stops the tracing when the buffer becomes full.

TRIGGER Stops the tracing by trigger

- STOP CONDITION TRIGGER ADDRESS

When “TRIGGER” is set on “STOP CONDITION”, this parameter is

enabled. Input signal address or symbol name as stop trigger.

Only bit address or corresponding symbols can be inputted. Byte address

cannot be inputted.

Soft keys display when the cursor is put on “STOP CONDITION

TRIGGER ADDRESS”.

Explanation:

DELETE Clears the value in the edit box.

SYMBOL Changes the address display to the symbol name display and

changes the soft key to [ADDRESS]. After that, following

soft keys are displayed.
