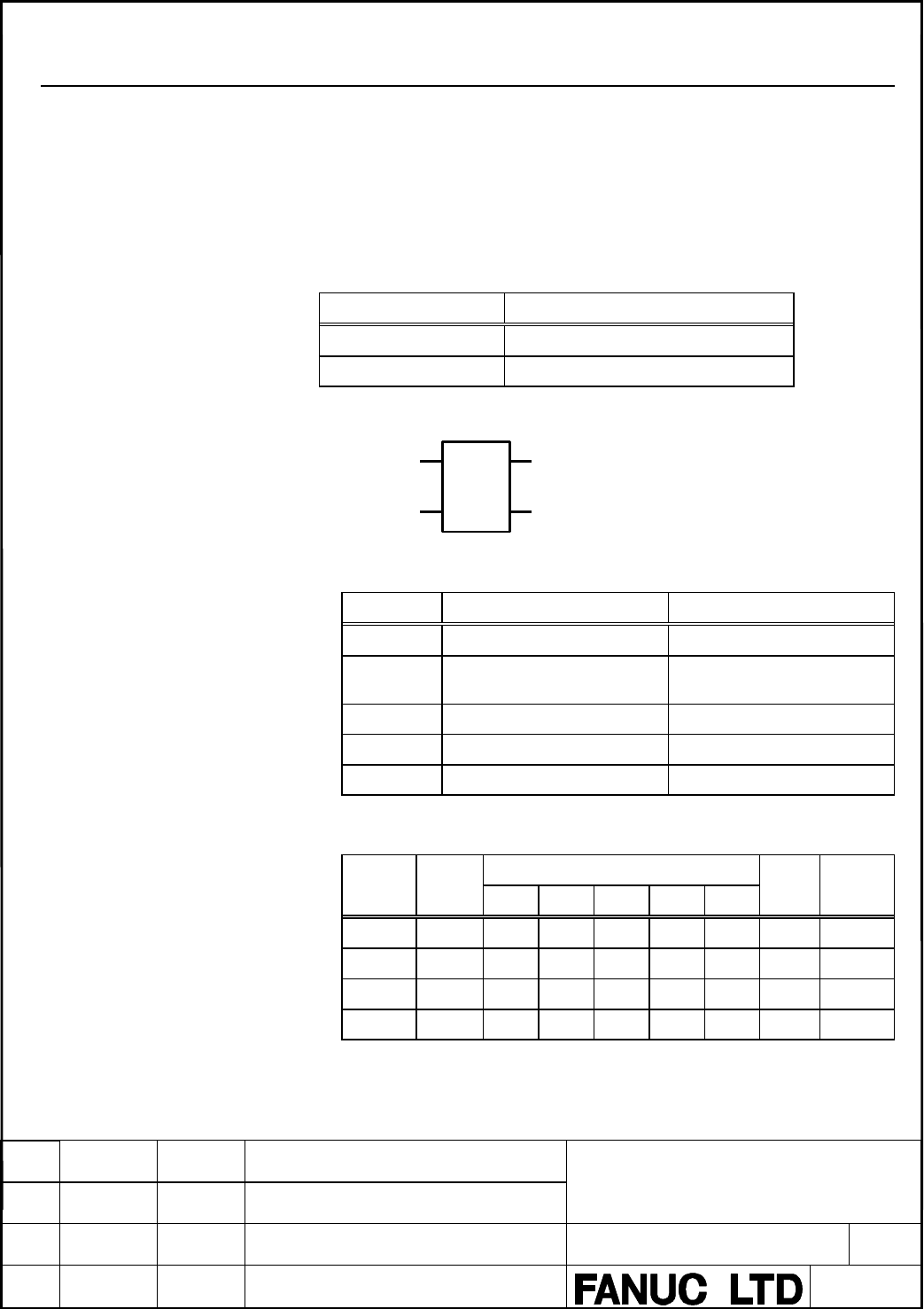

3.6.2 SWAP_(type)

Function

When EN is set to ON and is receiving the power flow, SWAP swaps

either WORD data in input parameter IN in BYTE units, or DWORD

data in WORD units, and outputs the result to output parameter Q.

SWAP_(type) instructions

Name Explanation

SWAP_WORD Swap of WORD data

SWAP_DWORD Swap of DWORD data

Format

SWAP

(type)

IN Q

(EN) (ENO)

??????? ???????

LEN

Parameters

Parameter Data type Meaning

EN BOOL Execution of logical operation

LEN Constant The number of data in the string.

1<=LEN<=256

IN WORD, DWORD Input data

ENO BOOL Returns the value of EN

Q WORD, DWORD Result of operation

Memory Type

Memory

Flow %I* %Q* %M* %S* %R

Constant

Omissible

EN o o o o o

IN o o o o o o

ENO o o o Note o

Q o o Note o

Note Only %SK can be specified.
