Servo Amplifier Unit Alpha Series Maintenance manual Page 37

Maintenance manual
6. SERVO CHECK BOARD
B–65195EN/01

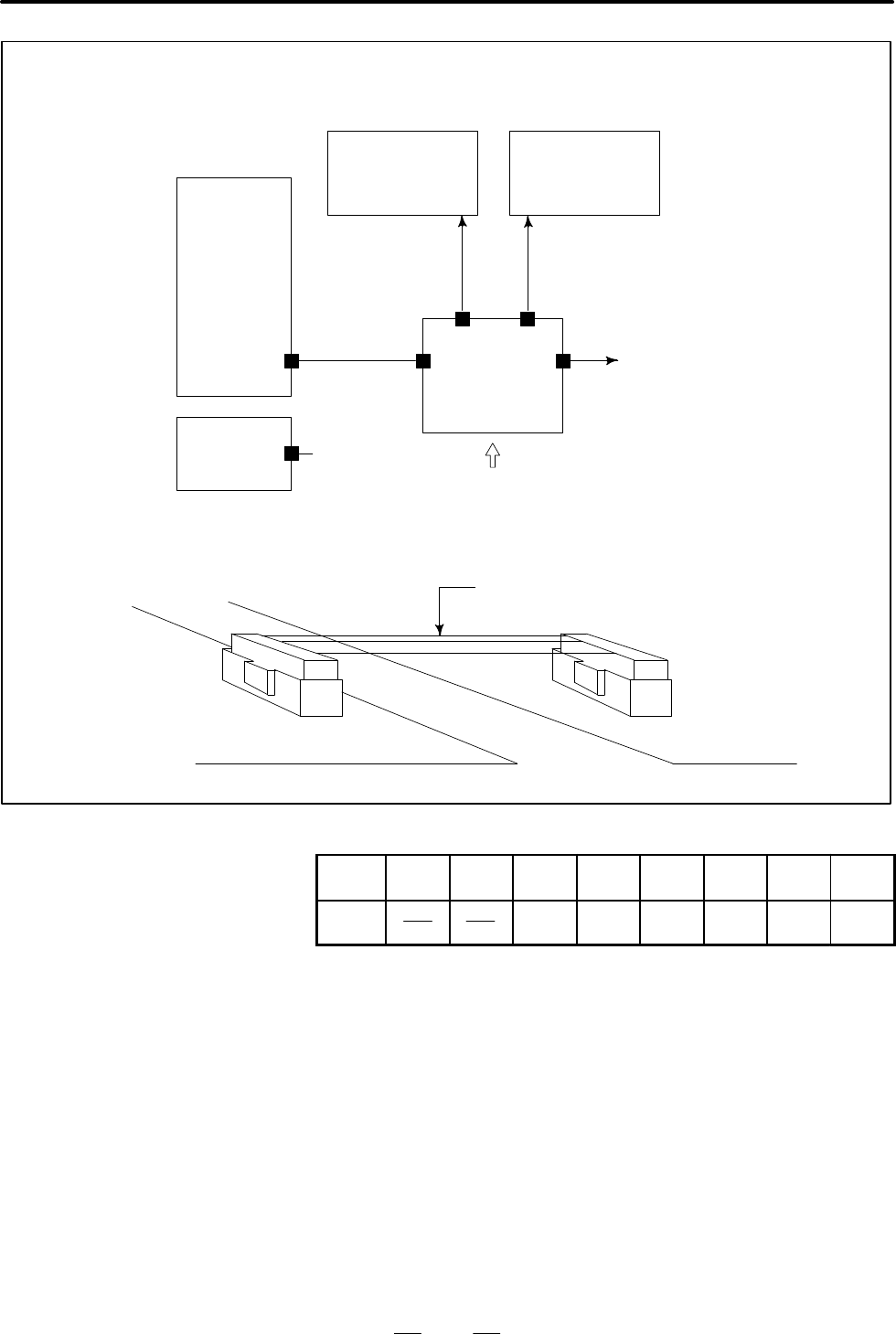

START-UP PROCEDURE
32
NC
MAIN CPU
Connector
JA8A
Adaptor
cable
Servo check
board first and
second axes
Servo check
board third and
fourth axes
OPTION–2
JA8B
Preventing reverse
insertion cable
To the analog spindle
Adaptor board
Fifth to eight axes
Do not mix up CN0 with CN1.
Axis control board
Servo check board
TEST1 TEST2
CN0 CN1
Preventing reverse
insertion cable
S Series 15–B, 16, 18, 20, 21, Power Mate MODEL D, Power Mate MODEL F
S Series 0–C, 15–A
(4) Location of signal output
Check
pin
TSAL TSAM CH1 CH2 CH3 CH4 CH5 CH6
Signal
L axis
VCMD
L axis
TCMD
M axis
VCMD
M axis
TCMD
L axis
TSA
M axis
TSA
(Check terminal TSAL or TSAM is not used.)
(5) VCMD signal
The VCMD signal is used to output a speed command. It can also be
used to measure a very small vibration or uneven movement of the
motor. The VCMD signal conversion mode can be switched by a
parameter. Because the VCMD signal is clamped at +5 V, the
waveform may become difficult to observe. In such a case, switch for
easier observation.
