Series 0i - Model A Maintenance manual Page 123

Maintenance manual
B63505EN/02
2. HARDWARE
105

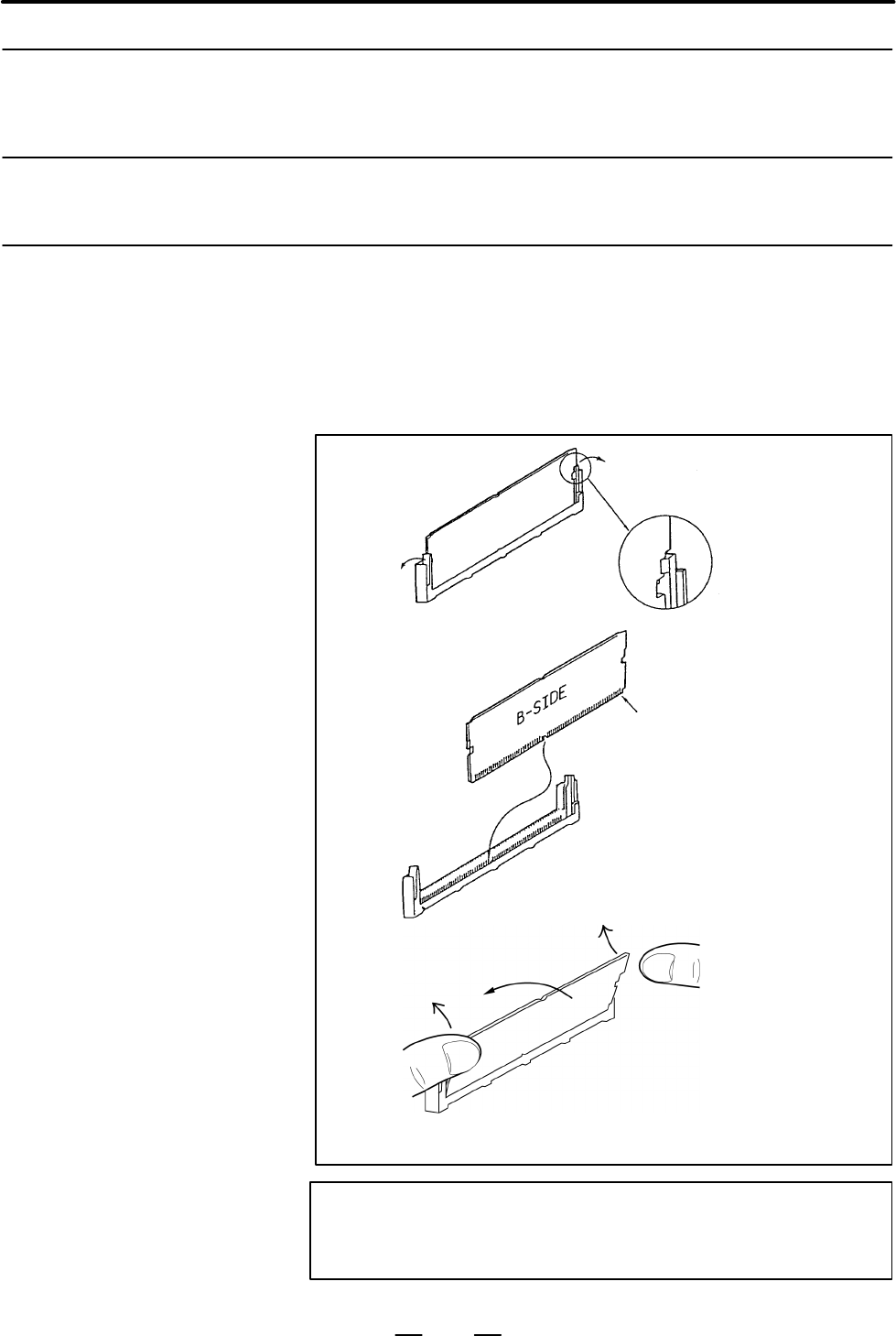

(1)Pull the latches of the module socket outwards. (Fig.(a))
(2)Pull out the module upward. (Fig.(b))
(1)Insert the new module board diagonally with BSIDE outward.
(Fig.(b))
(2)While pushing on the upper edge of the module board, raise it until it
is locked. (Fig.(c))
Be sure to push both upper edges of the module board with your
thumbs.
Do not push the center of the module board.
(a)
No.1 pin
(b)
(c)
CAUTION
Do not touch the contact pad on the module board or parts
installed on it inadvertently.
2.4.2
How to Replace the
Modules
2.4.2.1
Removing
2.4.2.2
Insertion
