FS 16i/18i-TB Compound Machining Function Additional Manual Page 62

Additional Manual
A-78656E/01 FANUC Series 16i/18i-TB Compound Machining Function
61/127
Nov.14.2001 Edition 1

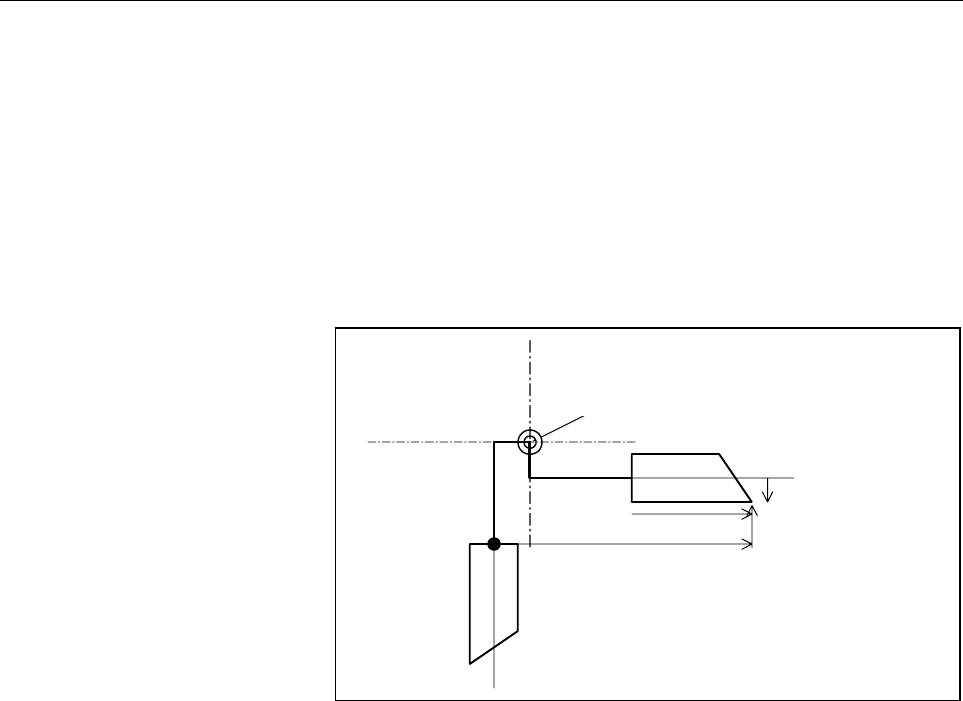

Conversion into
rightward (B90°)
1.
B axis is rotated to 90 degrees.
2.
The bit 2 of R address of this signal specified with the parameter
13040 is set to “1”. The bit 0 and 1 of it is set to “0”.
3.
T-code is commanded in MDI or MEM mode.
When T-code is executed, the tool geometry offset value is converted
into the value for the right and the direction of the imaginary tool
nose is converted into “4”.
OFSx = -419.980 = -500.000 + 0.020 + 80.000
OFSz = -380.010 = -0.010 - 250.000 - 130.000
XZRT
→
G01 -419.980 -380.010 0.000 4
Conversion of Wear Offset
As for the conversion of the wear offset, the distance between the B-
axis rotation center point and the base of the tool is not considered.
The diameter/radius and the negative/positive sign are only
considered.
XZRT
←
W01 1.000 2.000 0.000 2 (B-90
°
)
XZRT
↓
W01 4.000 0.500 0.000 3 (B0
°
)
XZRT
→
W01 -1.000 -2.000 0.000 4 (B90
°
)
130.000
250.000
500.000
(Diameter)
0.020(Diameter)
0.010
80.000(Diameter)
-380.010
-419.980
