0i/0i Mate - Model C Maintenance manual Page 226

Maintenance manual

Page of 683

/ 683

2. HARDWARE

B–64115EN/01

202

WARNING

Only those personnel who have received approved safety

and maintenance training may perform this replacement

work.

When opening the cabinet and replacing a unit, be careful

not to touch the high–voltage circuits (marked and fitted

with an insulating cover).

Touching the uncovered high–voltage circuits presents an

extremely dangerous electric shock hazard.

CAUTION

Before starting replacement work, back up the contents

(such as parameters and programs) of the SRAM memory

of the CNC. Otherwise, the contents of the SRAM memory

may be lost during replacement work.

Backlight

Ordering

information

Individual ordering

information

For 7.2

″

LCD

Made by Hitachi

A02B-0236-K112

A61L-0001-0142#BL

For 7.2″ LCD

Made by Sharp

A02B-0236-K112

A61L-0001-0142#BLS

For 8.4″ LCD A02B-0236-K119 A61L-0001-0176#BL

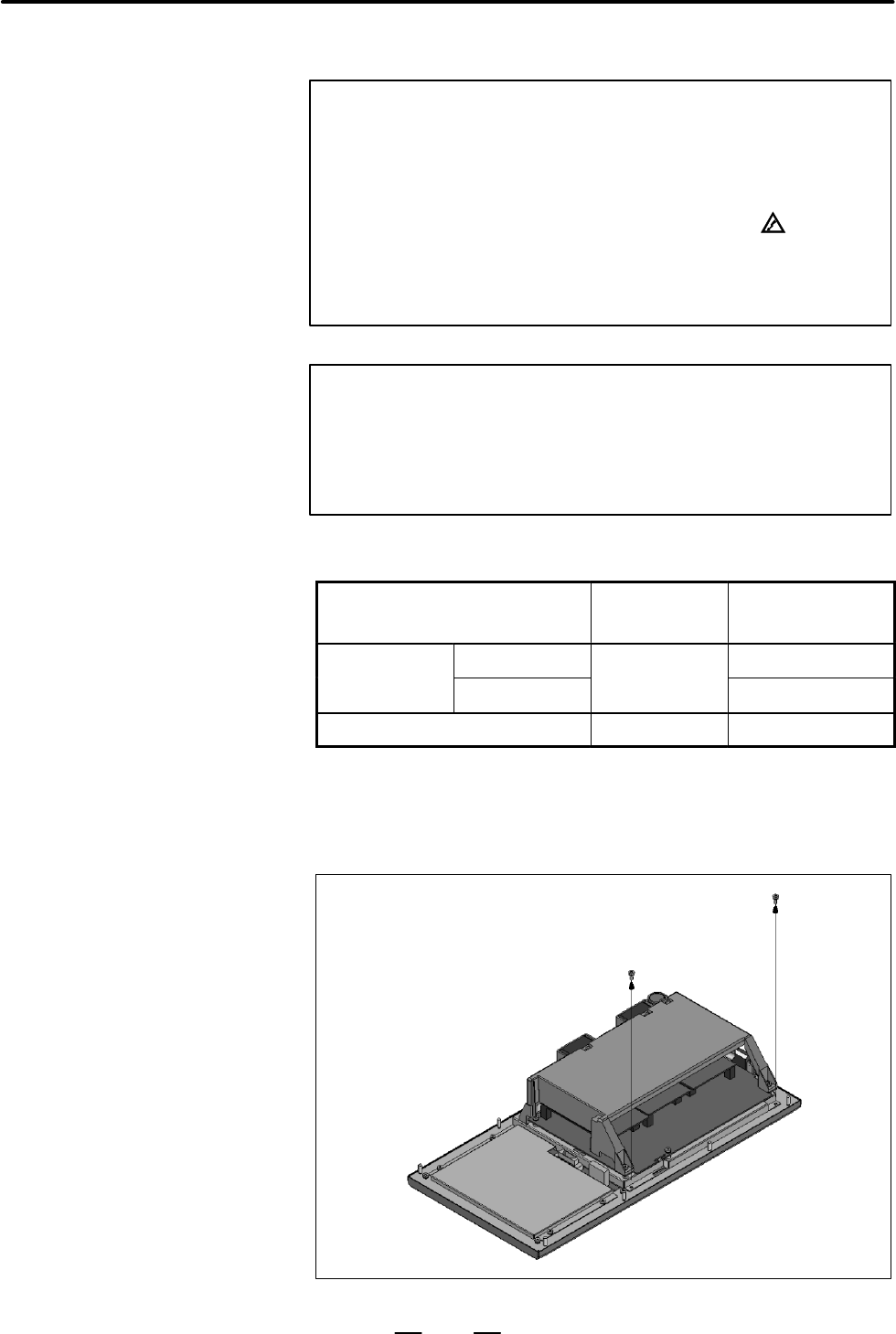

Replacing a horizontal type LCD/MDI unit

6) Detach the soft key and memory card cables from the main board.

Remove the two screws shown below. (If it is hard to detach the

memory card cable, detach the basic unit case before it.)

2.12

REPLACING LCD

BACKLIGHT

D Backlight ordering

information

D Replacement procedure
