4. INTERFACE BETWEEN CNC AND PMC
B–64115EN/01
294
• LED DO ADDRESS :
Set the start address of an external DO actually connected.
• KEY BIT IMAGE ADDRESS :
Set the start address of a key image referenced by a user
program. Usually, set an arbitrary internal relay (R) area.
• LED BIT IMAGE ADDRESS :
Set the start address of an LED image generated by a user
program. Usually, set an arbitrary internal relay (R) area.
(a) Soft key
• [EMG ST] : Terminates communication forcibly. Use this key if
communication becomes abnormal and the
connection cannot be terminated normally.
• [INIT] : Initializes the parameters to their default values.
(b)Setting
• CPU ID : Displays a CPU ID value. However, do not
modify this item.
• RS–232C : Enables communication setting in the case of
connection via RS–232C. However, do not
modify the items of TIMER 1, TIMER 2,
TIMER 3, and MAX PACKET SIZE.
• HIGH SPEED I/F : Enables setting for connection via a
high–speed interface (HSSB, Ethernet).

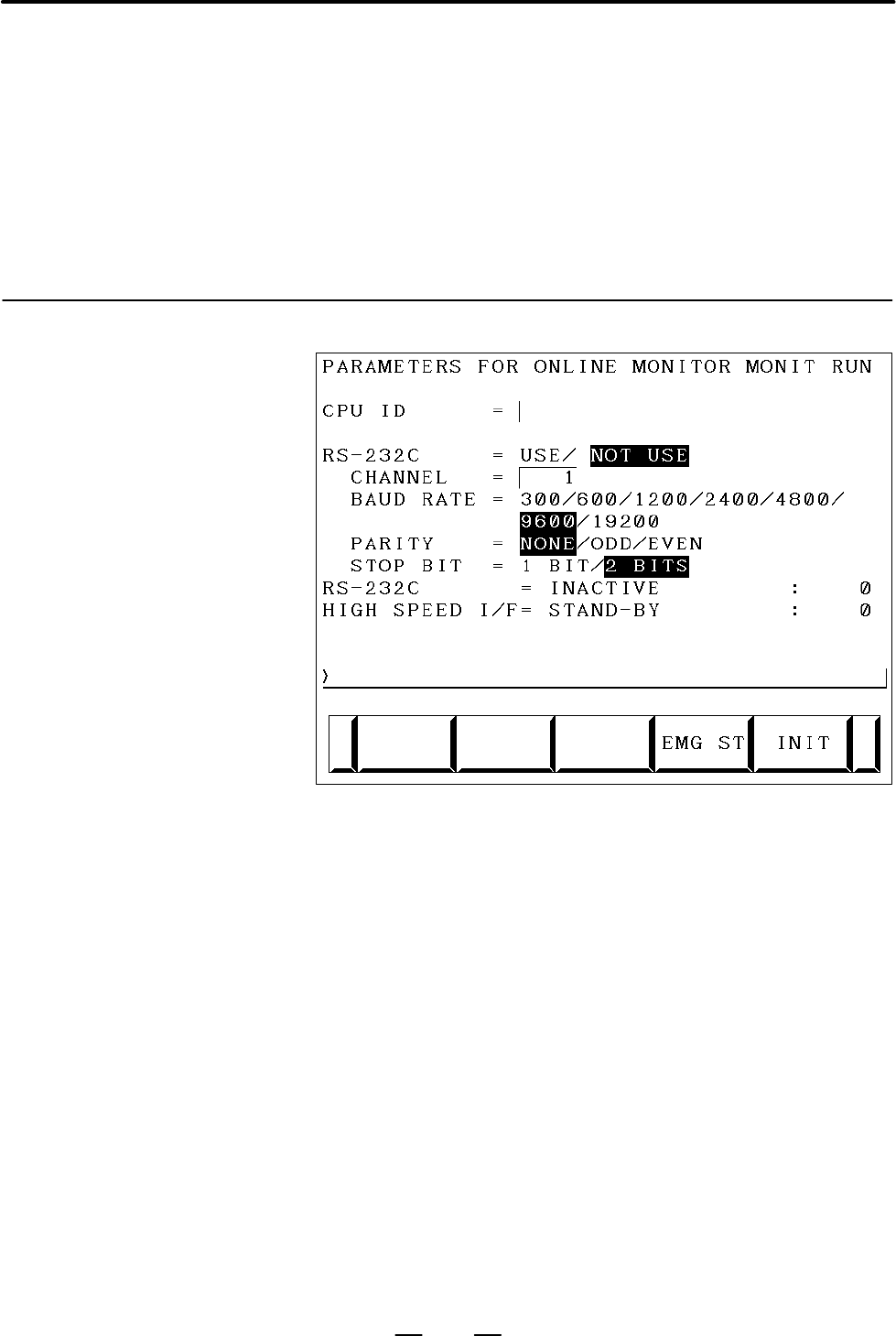

4.3.7
Online Monitor Setting
Screen
Previous page
Next page
