4. INTERFACE BETWEEN CNC AND PMC
301

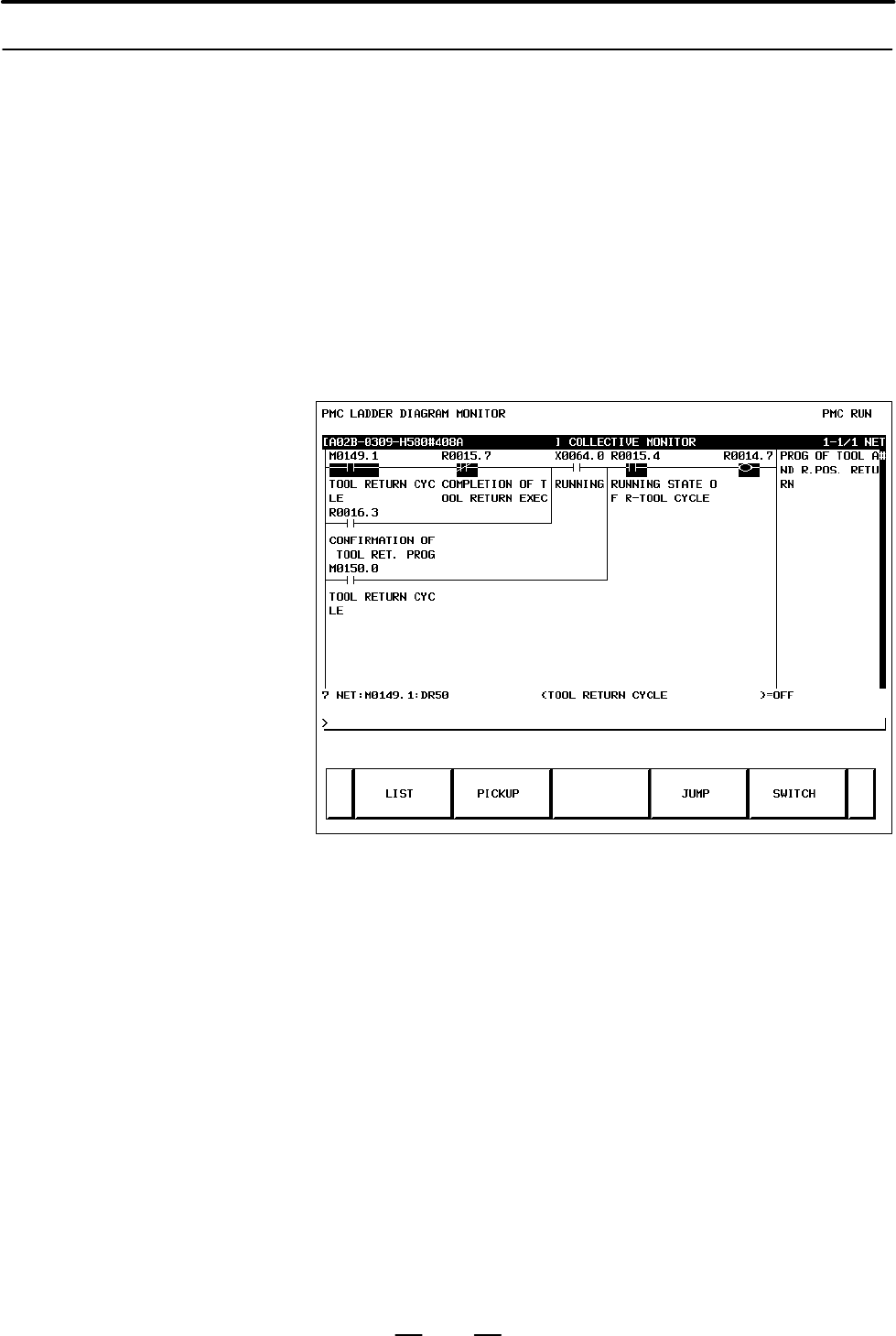

On the selection monitor screen, only a ladder net including a coil to be
monitored can be specified for ladder net monitoring.
(1)Display method
(a) Calling the screen from the program list display screen
<1> Display the program list screen.
<2> Move the cursor to the “COLLECT”.
<3> Press the [ZOOM] soft key.
(b)Calling the screen from the ladder diagram display screen
<1> Display the ladder diagram display screen.
<2> Press the [SWITCH] soft key.
(2)Display information
(3)Specifying a ladder net to be monitored [PICKUP]
By using the method described below, a ladder net to be monitored on
the selection monitor screen can be read for display.
(a) Specifying a desired ladder net on the selection monitor screen
D Typing the address used with the coil to read the net
<1> Enter the address to be monitored.
<2> Press the [PICKUP] soft key.
<3> The net that uses the address specified by <1> with a coil
is read to the top of the screen.
D Specifying the ladder net on the selection monitor screen
<1> Move the cursor to the relay in the ladder net that uses an
address to be monitored.
<2> Press the [PICKUP] soft key.
<3> The net that uses the address specified by <1> with a coil
is read to the top of the screen, and the cursor moves to the
coil position.
4.4.2.2
Selection monitor screen
