0i/0i Mate - Model C Maintenance manual Page 400

Maintenance manual
5. FOCAS1/ETHERNET PARAMETER SETTING
B–64115EN/01
376

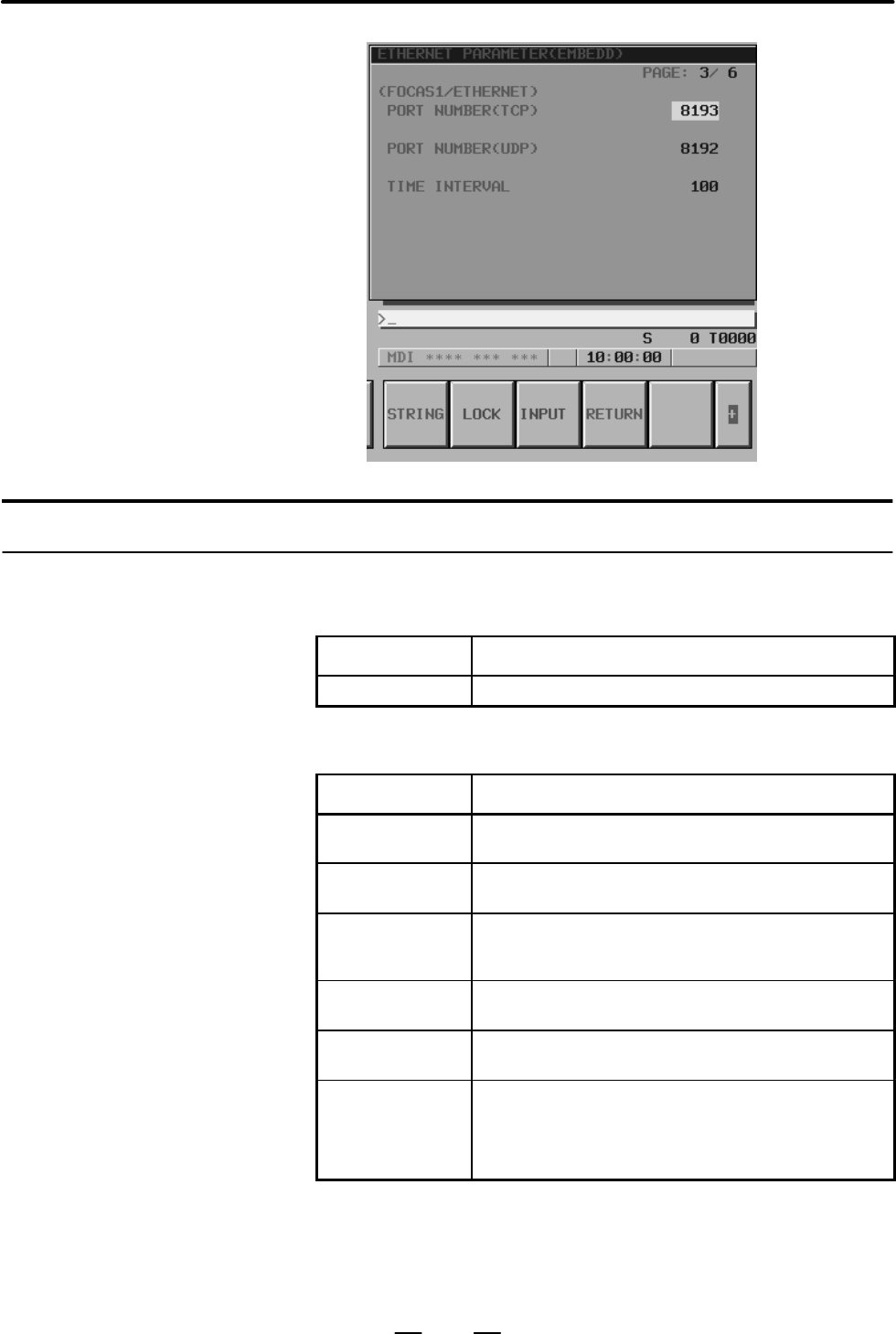

Display item and setting items
The item related to the PCMCIA LAN card is displayed.
Item Description
MAC ADDRESS PCMCIA LAN card MAC address
Set the TCP/IP–related items of the embedded Ethernet.
Item Description
IP ADDRESS Specify the IP address.
(Example of specification format: “192.168.1.1”)
SUBNET MASK Specify a mask address for the IP addresses of the network.
(Example of specification format: “255.255.255.0”)
ROUTER IP
ADDRESS
Specify the IP address of the router.
Specify this item when the network contains a router.
(Example of specification format: “192.168.1.254”)
PORT NUMBER
(TCP)
Specify a port number. The valid input range is 5001 to 65535.
Usually set 8193.
PORT NUMBER
(UDP)
Specify a UDP port number for transmitting UDP broadcast
data. Set 0.
TIME INTERVAL Specify a time interval at which UDP broadcast data specified
above with a UDP port number is transmitted.
The unit is 10 ms. The valid input range is 10 to 65535. This
means that a value less than 100 ms cannot be specified. Set
0.
Display item
Setting items
