0i/0i Mate - Model C Maintenance manual Page 649

Maintenance manual
B–64115EN/01
E. FSSB START–UP PROCEDURE/
MATERIALS
APPENDIX
625
Step 6 Press function key
SYSTEM
.
Step 7 Pressing the continuous menu key
several times displays
[FSSB].
Step 8 Pressing soft key [FSSB] switches the screen display to the
amplifier setting screen, and displays the following soft keys:
[ AMP ][ AXIS ][ MAINT ][ ][ (OPRT) ]
Step 9 Press soft key [AXIS].
Step 10 Press soft key [(OPRT)] without entering any data, then press soft
key [SETING].
Step 11 Turn off then on the power to the CNC. This completes the
setting.
Separate setector
interface unit
3 Servo Amplifiers
Machine side
Z–axis
A–axis
X–axis
Y–axis
Connector1 (CN1)
Connector1 (CN2)
Scale
Scale
Step 1 Set the following with parameter No. 1023:
X : 1
Y : 2
Z : 3
A : 4
Step 2 Initialize the servo parameters for each axis.
Step 3 Turn on then off the power to the CNC.
Step 4 Enter the axis numbers on the amplifier setting screen.
E.3.2

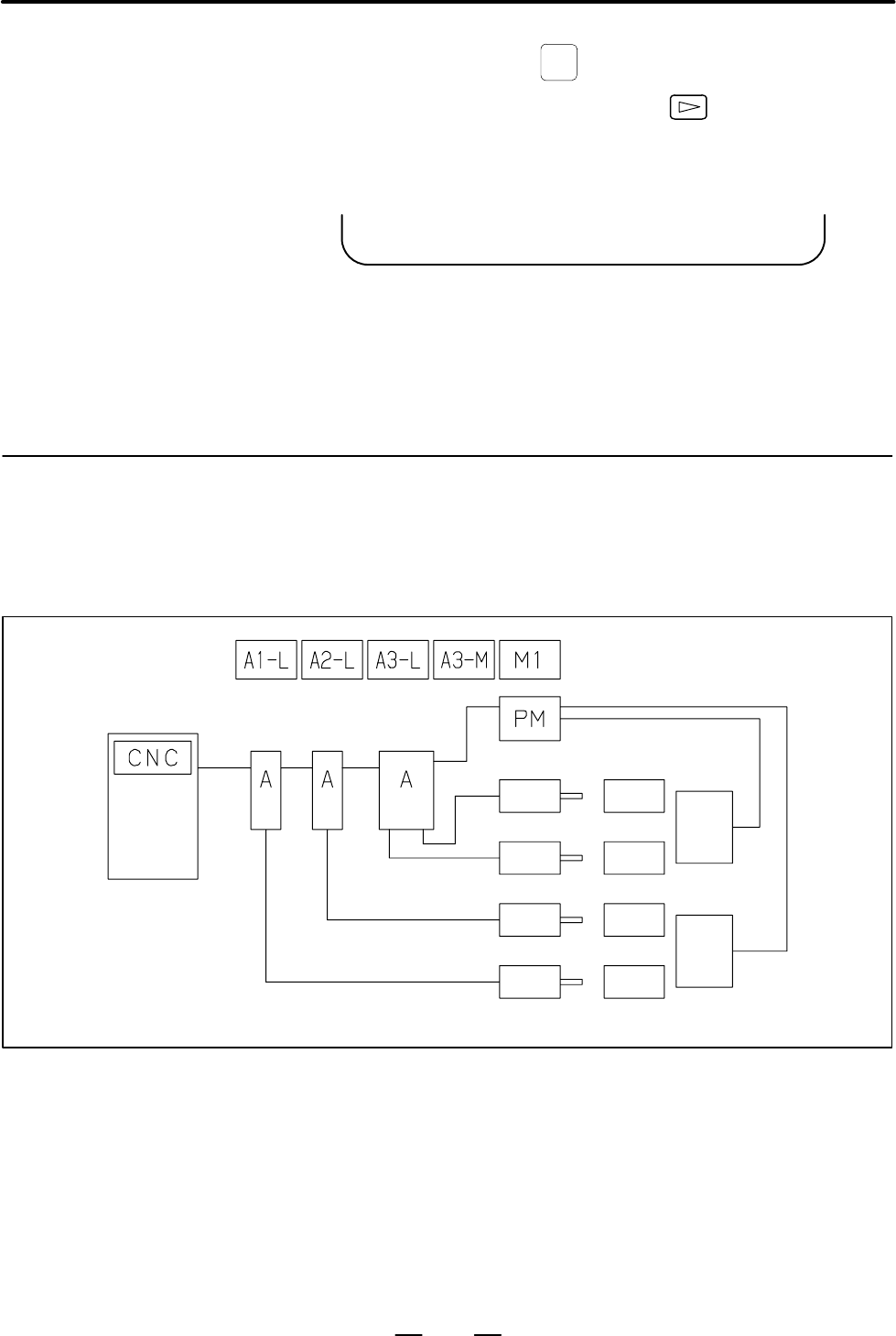

[Sample Setting 2]
General Configuration
(Closed Loop)
