Alpha i Servo/Spindle System Supplement to Manual Page 5

Supplement to Manual
2001/07/18 T.Inagaki
A-78519E
FANUC Series 16i/18i/21i –TB/MB
αi servo/spindle system
Title
Drawing No.
Page
Description
Date
5/11

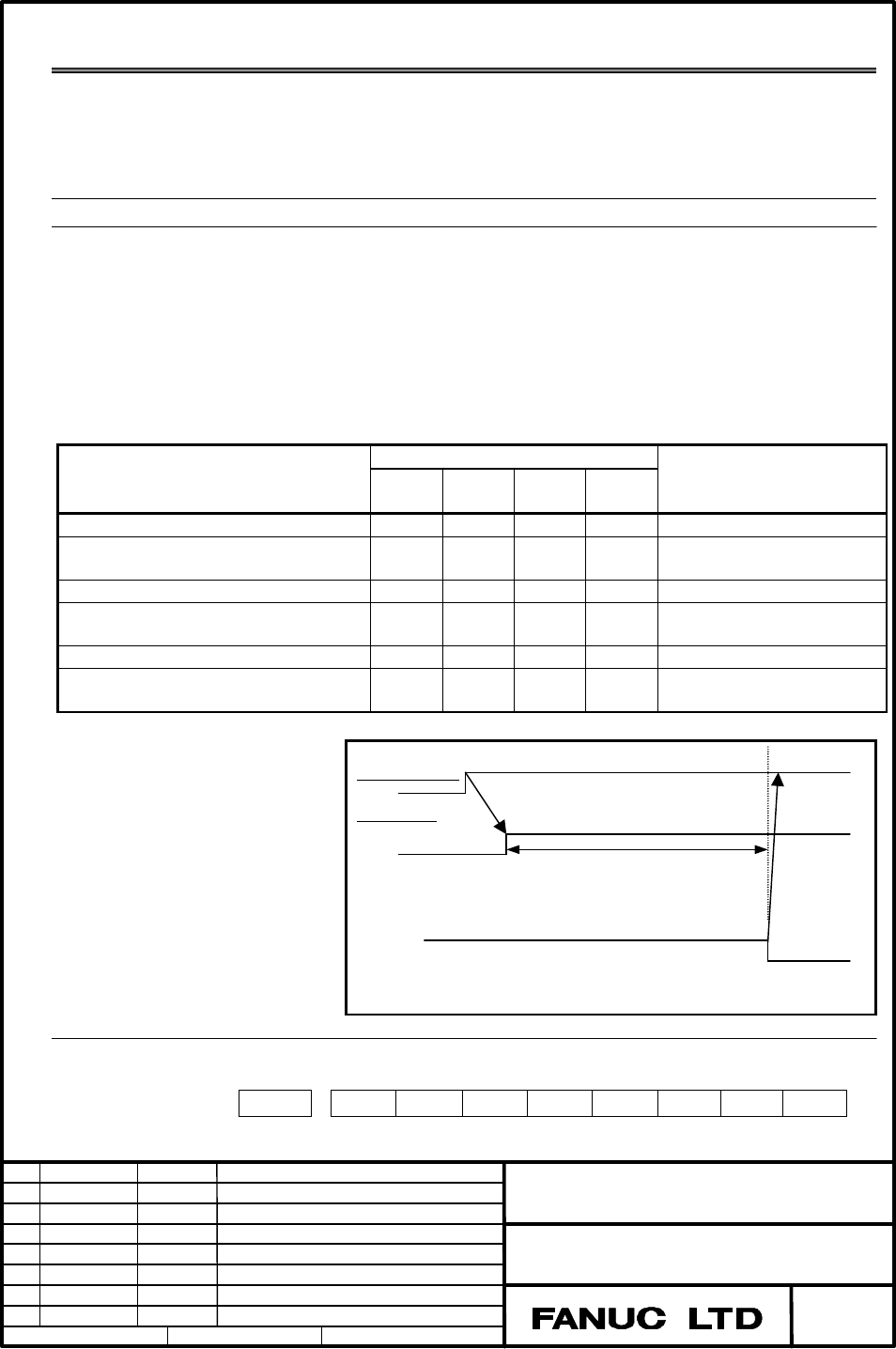

1.3 Warning interface of αi servo motor
Outline The αi series servo amplifier provides PMC signal that indicates a warning state
before an alarm is issued.
This signal allows the operator to retract the tool to a safe location from the time a
warning state is indicated until a servo alarm is issued.
Signals
Servo warning details signal SVWRN1 … 4<F093#4 … #7>
[Classification] Output signal
[Function] Before one of the following alarms is issued, this signal reports the
occurrence of a warning state via the following warning interface
independent of the conventional alarm interface.
[Output condition] The state of servo amplifier warning is shown the corresponding warning
signal in the following.
Warning state signals (F093) Corresponding alarm message
SVWRN4
(#7)
SVWRN3
(#6)
SVWRN2
(#5)
SVWRN1
(#4)
Time to issue alarm after
warning signal is generated
444 n AXIS:INV. COOLING FAN FAILURE 1 0 0 0 1 minute
601 n AXIS:INV. RADIATOR FAN FAILURE 1 0 0 1 Time to issue overheating
(undecided)
443 n AXIS:CNV. COOLING FAN FAILURE 1 1 0 0 1 minute
606 n AXIS:CNV. RADIATOR FAN FAILURE
1 1 0 1 Time to issue overheating
(undecided)
431 n AXIS:CNV. OVERLOAD 1 1 1 0 1 minite
607 n AXIS:CNV. SINGLE PHASE FAILURE
1 1 1 1 PSMR: 5 seconds
PSM: 1 minute
Timing chart of servo warning is as follows:
Warning generation
Servo amplifier
SVWRN1-4
(Warning)
Deceleration stop, single block stop and
so on can be executed by PMC for stopping
the process without damage. The time
required depends on the kind of warning.
Excitation
Alarm corresponding to warning
occurrence. And stop
Signal address
#7 #6 #5 #4 #3 #2 #1 #0
F093 SVWRN4
SVWRN3
SVWRN2
SVWRN1
