Alpha i Servo/Spindle System Supplement to Manual Page 6

Supplement to Manual
2001/07/18 T.Inagaki
A-78519E
FANUC Series 16i/18i/21i –TB/MB
αi servo/spindle system
Title
Drawing No.
Page
Description
Date
6/11
1.4 ID information screen
1.4.1 αi servo information screen
Outline
On αi servo system, ID information can be output from each connected
equipment to CNC screen. In the equipment with ID information is as follows:
l Servo motor
l Pulsecoder
l Servo amplifier
l Power supply module
Displaying servo information screen
1. Press the function key

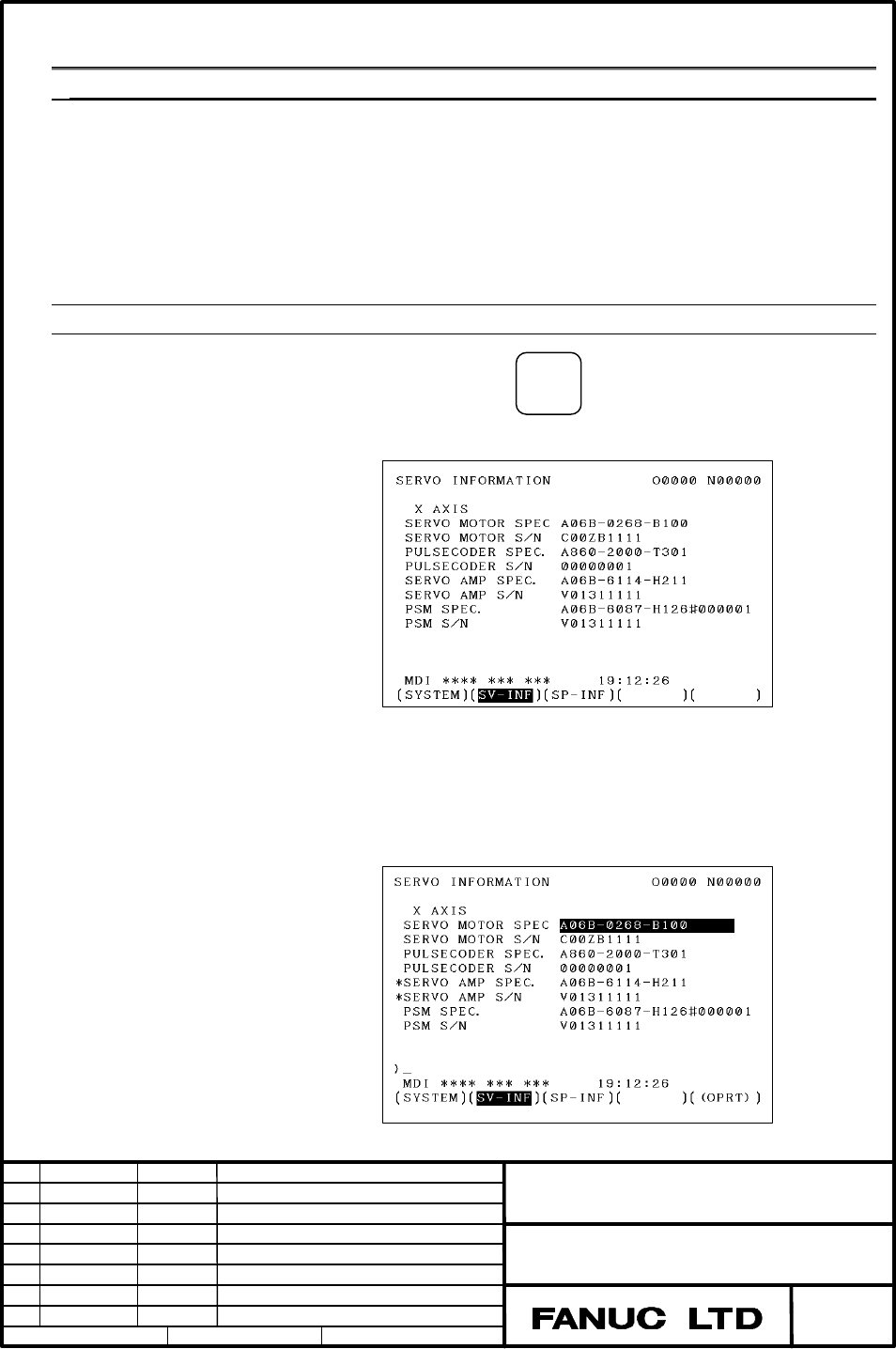

2. When the soft key [SV-INF] is pushed, the following screen is displayed.
Ø Servo information is saved on the FLASH-ROM module. If there is a
difference between servo information on FLASH-ROM and servo
information on servo I/F, for example servo amplifier is exchanged for
different one, '*' is displayed on the left side as follows.
SYSTEM
Previous page
Next page
