B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 6.BUILT-IN BRAKE

- 101 -

6.2 CONNECTING A BRAKE

6.2.1 Layout of Connector Pins

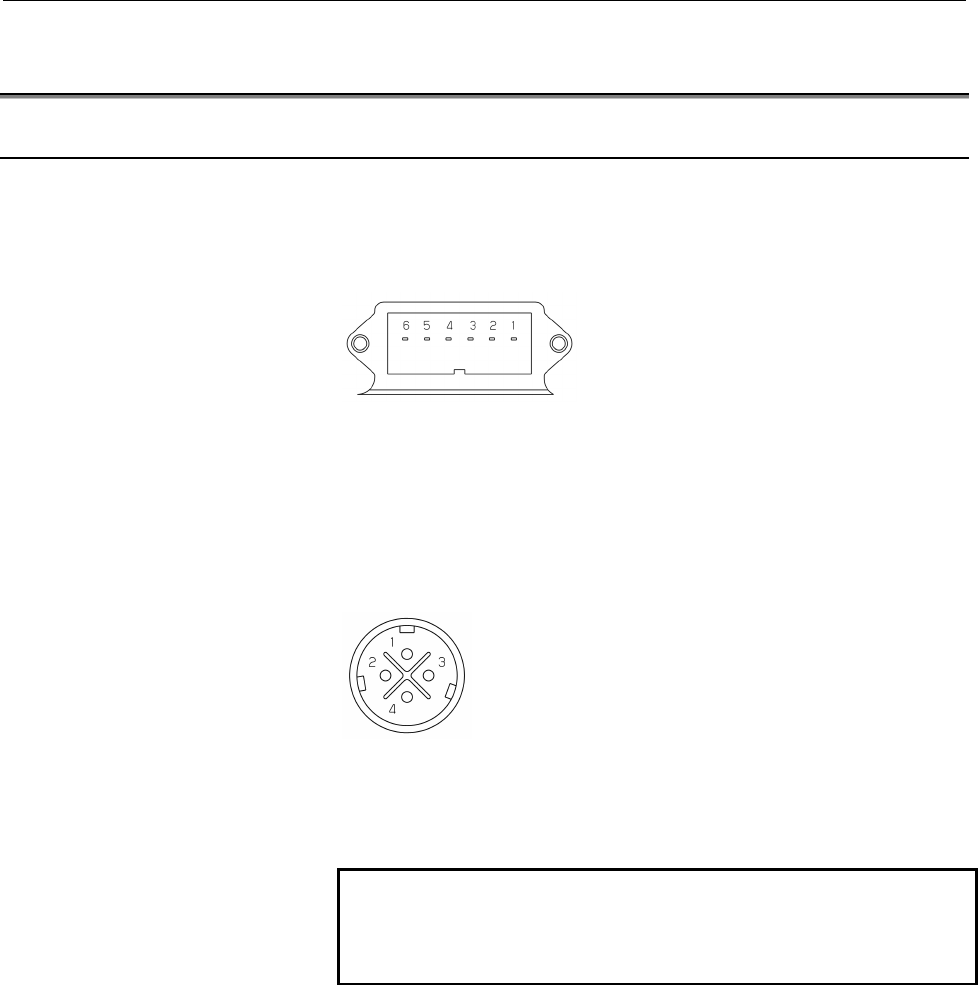

The following shows the shape and pin arrangement of the brake

connectors.

Models α

αα

α2is to α

αα

α4is and α

αα

α1i to α

αα

α2i

Connections: 5=BK, 6=BK

(Connect to inside of power connector.)

(1=U, 2=V, 3=W, 4=GND)

* BK indicates a power supply (24 VDC, 0 VDC) for the brake.

The brake is nonpolarized.

Models α

αα

α8is to α

αα

α200is and α

αα

α4i to α

αα

α40i

Connections: 1=BK, 2=BK, 3=NC(Not Connected), 4=GND

(Note)

* BK indicates a power supply (24 VDC, 0 VDC) for the brake.

The brake is nonpolarized.

NOTE

Since pin 4 is connected to the brake cabinet, it can

be used when the shield wire of a brake cable needs

to be connected.
