B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 6.BUILT-IN BRAKE

- 105 -

6.4 REDUCING THE BRAKE SHAFT FALL AMOUNT

During use of a motor with a brake, the amount of falling along an

axis at a power failure or emergency stop, or when the CNC power

supply is turned off during excitation of the motor may become an

issue. To operate the brake immediately and reduce the amount of

falling along an axis to a minimum, note the following points:

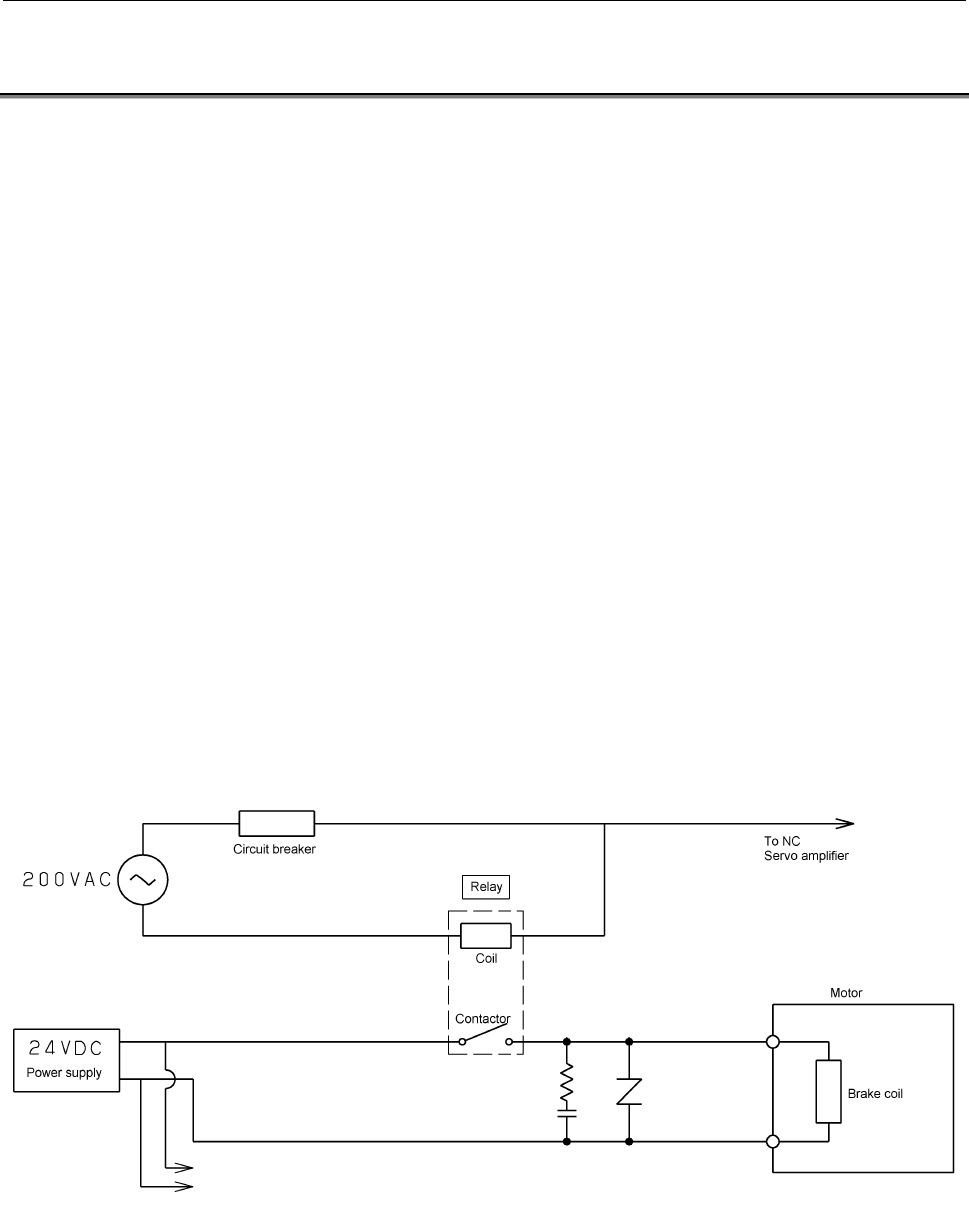

(1) To operate the brake immediately, the switch and relay for

controlling on and off must be installed on the DC side (at the

position shown in the following figure) of the break circuit.

If the contact is installed on the AC side (between the

transformer's secondary side and rectifier), it takes time until

braking starts because of the current returned to the rectifier

diodes.

(2) To reduce the amount of falling along a vertical axis, the switch

or relay must be turned off at a power failure as soon as possible.

To turn the relay off immediately at a power failure, it is

effective to supply the relay driving power from the main power

supply whenever possible as shown in the following figure.

(3) To prevent the shaft from falling during an emergency stop, it is

sometimes effective to use the "brake control function" in the

servo software. This function enables continuous excitation of

the motor until the motor built-in brake operates.

For details, see Parameter Manual (B-65270EN).

To other 24 VDC peripheral devices

(such as a relay and solenoid)

(CNCs and amplifiers not included)
