3.SPECIFICATIONS AND CHARACTERISTICS FANUC AC SERVO MOTOR αiS SERIES B-65262EN/03

- 134 -

odel Specificatio

A06B-0292-B

□

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 300 Nm

3060 kgfcm

Stall Current

(*)

Is 193 A (rms)

Rated Output

(*)

Pr 52 kW

70 HP

Rating Speed

Nr 2000

min

-1

Maximum Speed

Nmax 2000

min

-1

Maximum Torque

(*)

Tmax 750 Nm

7650 kgfcm

Rotor Inertia

Jm 0.0787

kgm

0.803

kgfcms

Rotor Inertia (with Brake)

Jm -

kgm

kgfcms

Torque constant

(*)

Kt 1.56 Nm/A (rms)

15.9 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 54

V (rms)/1000 min

-1

Kv 0.52 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.012

Mechanical time constant tm 0.001 s

Thermal time constant tt 150 min

Static friction Tf 4 Nm

41 kgfcm

Weight w180 kg

Weight (with Brake) w- kg

Maximum Current of Servo Amp. Imax 360×2 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

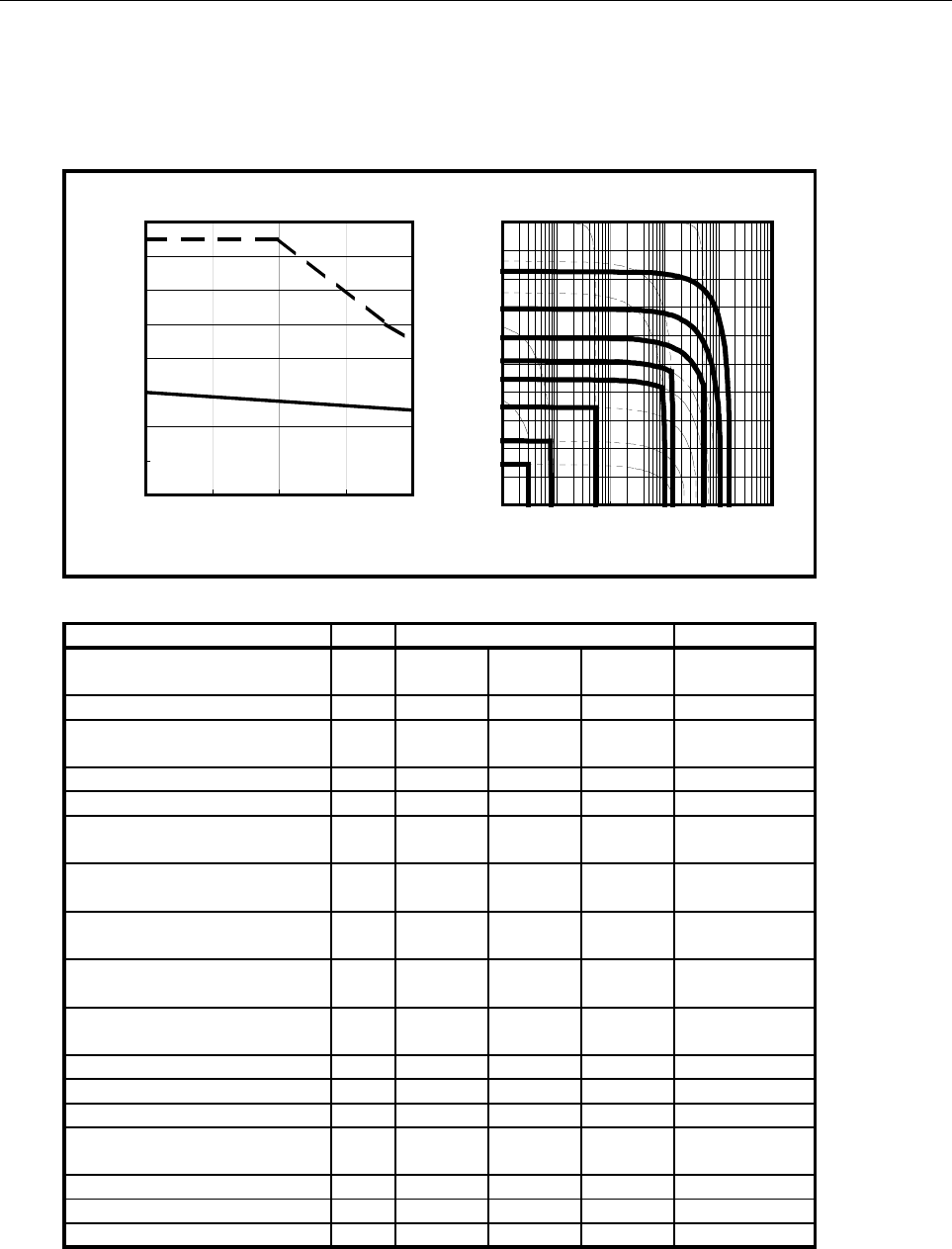

@300/2000*s

Over Load Duty

100

1 10 100 1000 10000 100000

"On" time (sec)

Duty (time%)

Speed-Torque Characteristics

100

200

300

400

500

600

700

800

0 500 1000 1500 2000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
