3.SPECIFICATIONS AND CHARACTERISTICS FANUC AC SERVO MOTOR αi SERIES B-65262EN/03

- 172 -

odel Specificatio

A06B-0243-B

□

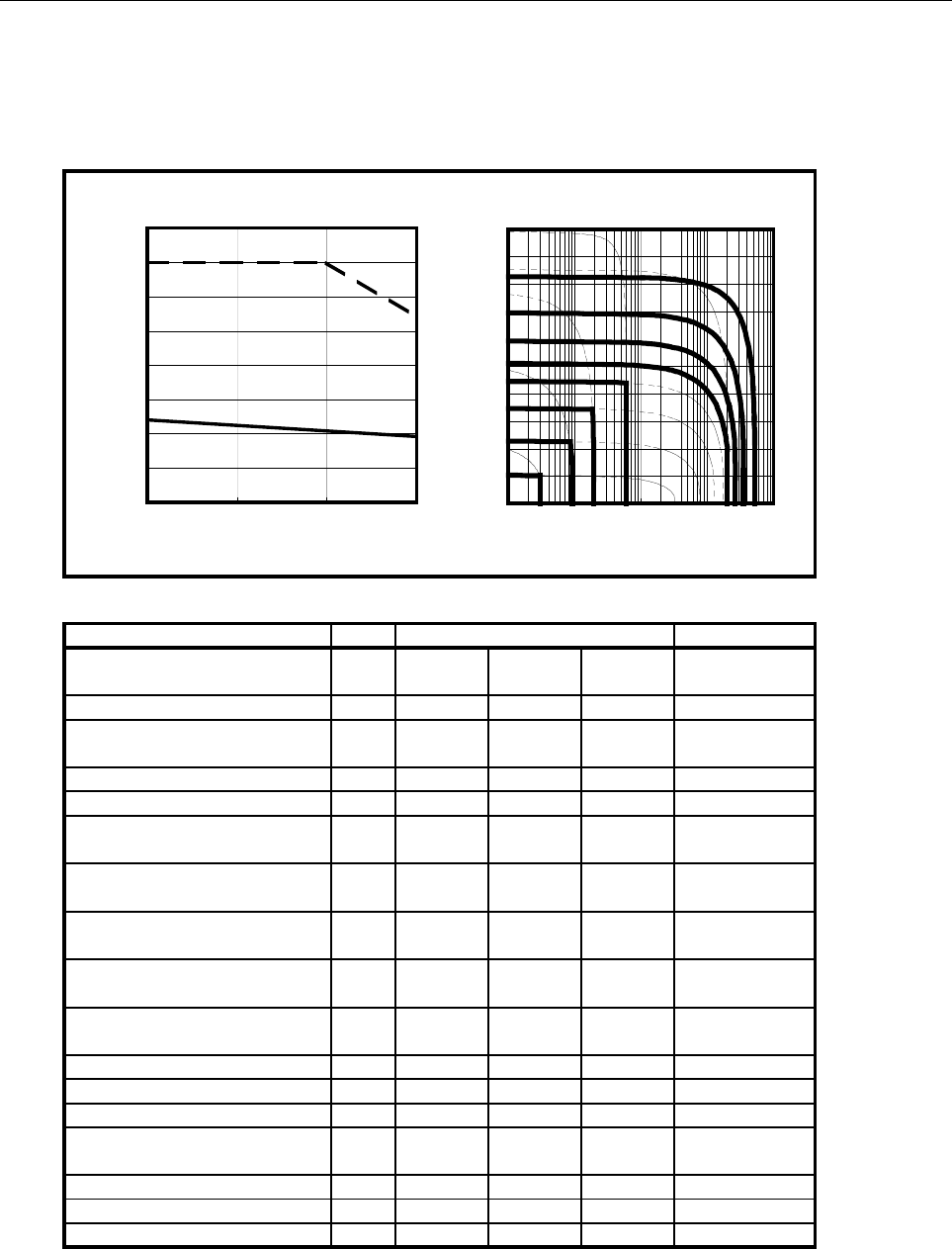

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 12 Nm

122 kgfcm

Stall Current

(*)

Is 18.1 A (rms)

Rated Output

(*)

Pr 3.0 kW

4.0 HP

Rating Speed

Nr 3000

min

-1

Maximum Speed

Nmax 3000

min

-1

Maximum Torque

(*)

Tmax 35 Nm

357 kgfcm

Rotor Inertia

Jm 0.0062

kgm

0.0633

kgfcms

Rotor Inertia (with Brake)

Jm 0.0068

kgm

0.0694

kgfcms

Torque constant

(*)

Kt 0.66 Nm/A (rms)

6.8 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 23

V (rms)/1000 min

-1

Kv 0.22 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.16

Mechanical time constant tm 0.007 s

Thermal time constant tt 50 min

Static friction Tf 0.8 Nm

8kgfcm

Weight w18 kg

Weight (with Brake) w24 kg

Maximum Current of Servo Amp. Imax 80 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

@12/3000*

Over Load Duty

100

1 10 100 1000 10000

"On" time (sec)

Duty (time%)

Speed-Torque Characteristics

0 1000 2000 3000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
