1.GENERAL SPECIFICATIONS FOR THE αiS/αi SERIES B-65262EN/03

- 4 -

1.1 FEATURE

The FANUC AC Servo Motor αis series and αi series has been

designed for machine tool feed axis applications. This servo motor αi

series has the following features:

Smooth rotation

The special magnetic pole shape minimizes torque ripples which,

when combined with precise current control and accurate Pulsecoder

feedback, enables extremely smooth motor rotation.

Excellent acceleration

The use of a special rotor shape results in motors that are smaller and

lighter than previous models, but which can develop a high level of

torque. These motors, therefore, provide excellent acceleration

characteristics.

High reliability

A totally-enclosed, friction-free brushless design is used. This allows

the servo motors to be used in demanding environments with no need

for special checks or maintenance.

Built-in, high-precision sensor

A low-indexing-error optical encoder (Pulsecoder) is built into the

motors. This Pulsecoder enables precise positioning.

Pulsecoders that output 1,000,000 or 16,000,000 pulses per rotation

are available. As such, the a series motors can be used for positioning

applications ranging from simple positioning to those requiring a high

degree of precision.

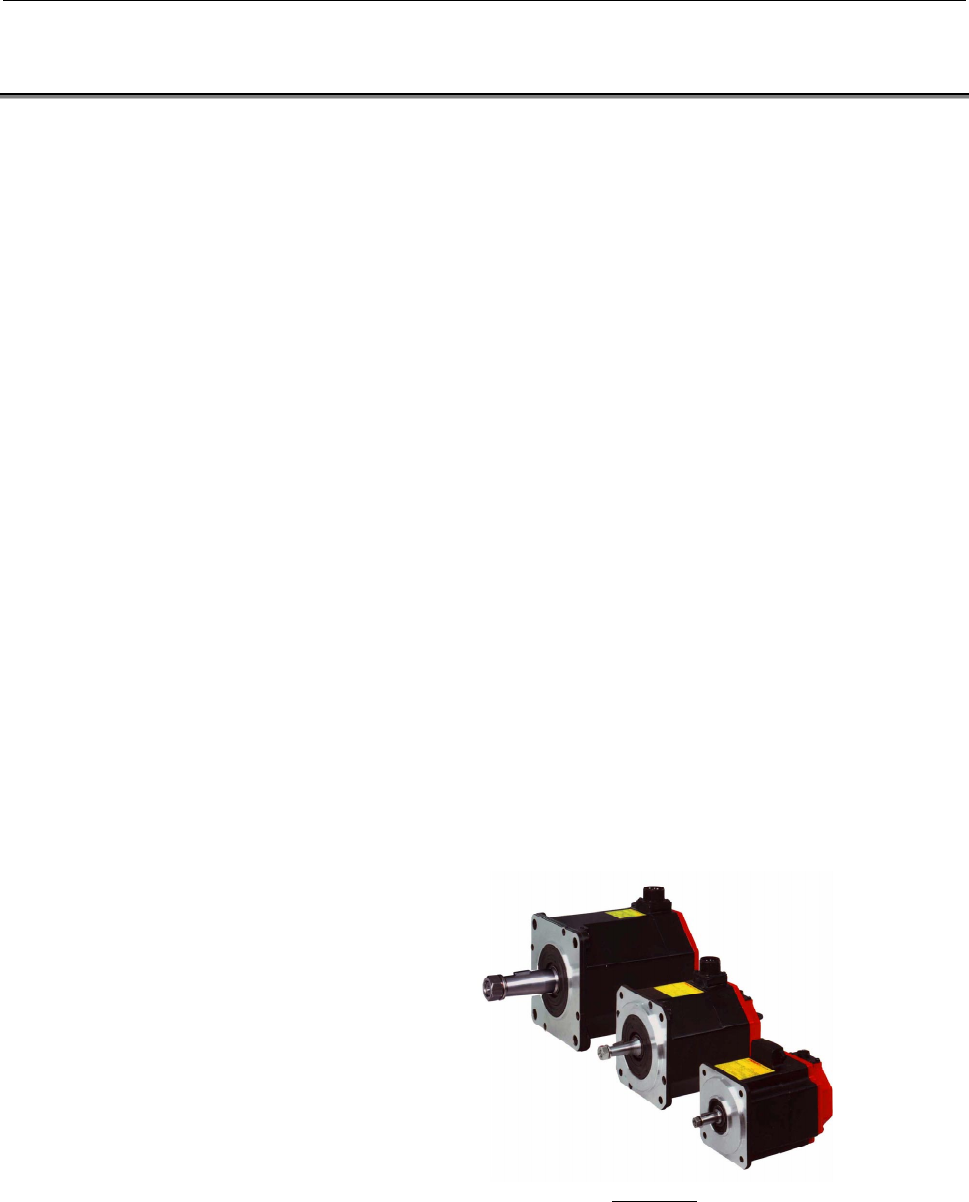

αα

αis series
