AC Servo Motor Alpha i/is Series Descriptions Page 229

Descriptions

Page of 368

/ 368

B-65262EN/03 FANUC AC SERVO MOTOR α(HV)iS SERIES 3.SPECIFICATIONS AND CHARACTERISTICS

- 211 -

odel Specificatio

A06B-0276-B

□

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 75 Nm

765 kgfcm

Stall Current

(*)

Is 39.6 A (rms)

Rated Output

(*)

Pr 14 kW

19 HP

Rating Speed

Nr 3000

min

-1

Maximum Speed

Nmax 3000

min

-1

Maximum Torque

(*)

Tmax 215 Nm

2190 kgfcm

Rotor Inertia

Jm 0.0145

kgm

0.148

kgfcms

Rotor Inertia (with Brake)

Jm 0.0151

kgm

0.154

kgfcms

Torque constant

(*)

Kt 1.90 Nm/A (rms)

19.4 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 66

V (rms)/1000 min

-1

Kv 0.63 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.1

Mechanical time constant tm 0.001 s

Thermal time constant tt 30 min

Static friction Tf 1.8 Nm

18 kgfcm

Weight w42 kg

Weight (with Brake) w48 kg

Maximum Current of Servo Amp. Imax 180 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

@50/3000HV*s ｗｉｔｈＦＡＮ

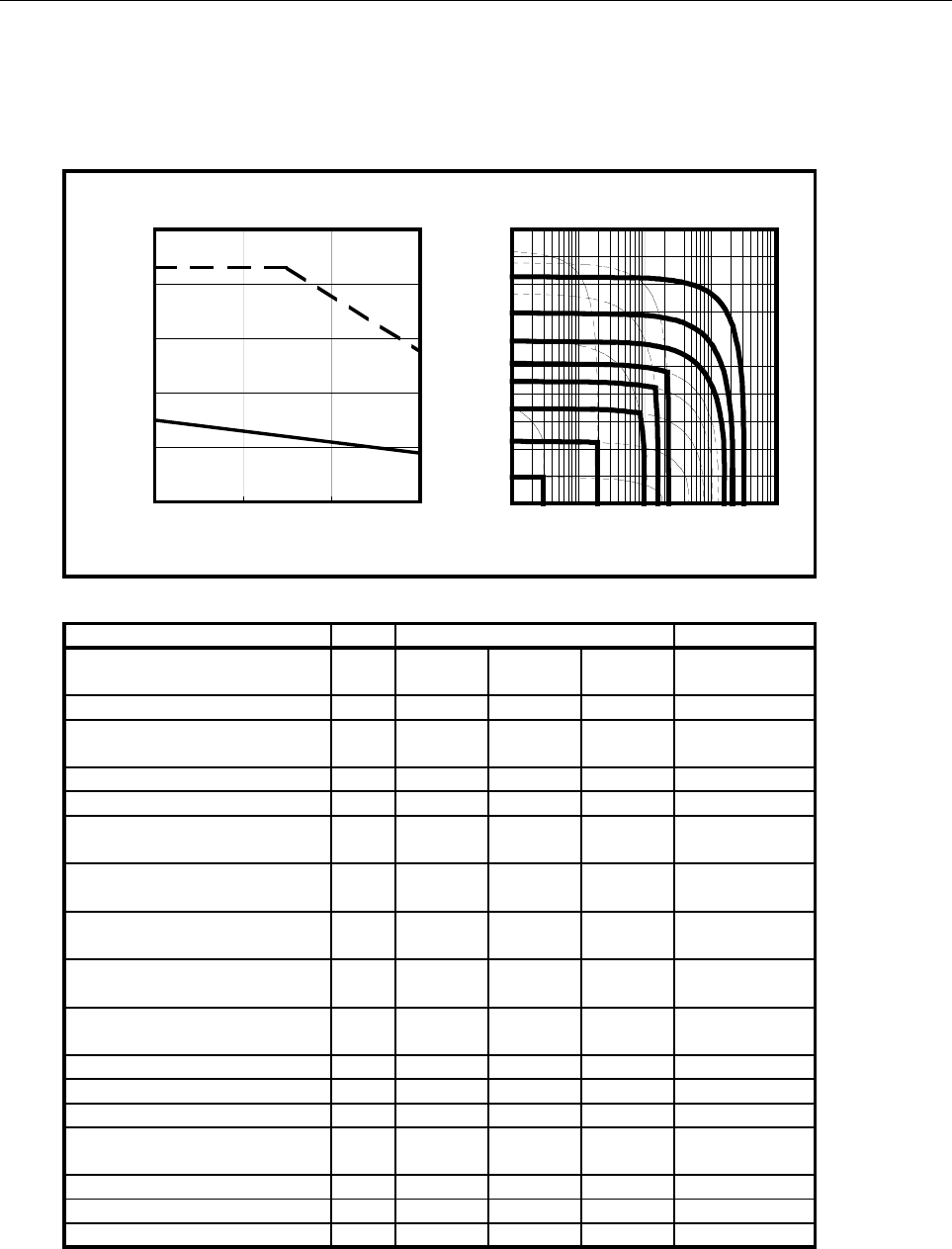

Over Load Duty

100

1 10 100 1000 10000

"On" time (sec)

Duty (time%)

Speed-Torque Characteristics

100

150

200

250

0 1000 2000 3000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
