AC Servo Motor Alpha i/is Series Descriptions Page 230

Descriptions

Page of 368

/ 368

3.SPECIFICATIONS AND CHARACTERISTICS FANUC AC SERVO MOTOR α(HV)iS SERIES B-65262EN/03

- 212 -

odel Specificatio

A06B-0286-B

□

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 130 Nm

1330 kgfcm

Stall Current

(*)

Is 40 A (rms)

Rated Output

(*)

Pr 11 kW

15 HP

Rating Speed

Nr 2000

min

-1

Maximum Speed

Nmax 2500

min

-1

Maximum Torque

(*)

Tmax 470 Nm

4800 kgfcm

Rotor Inertia

Jm 0.0252

kgm

0.257

kgfcms

Rotor Inertia (with Brake)

Jm 0.0262

kgm

0.267

kgfcms

Torque constant

(*)

Kt 2.54 Nm/A (rms)

25.9 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 88

V (rms)/1000 min

-1

Kv 0.84 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.052

Mechanical time constant tm 0.0006 s

Thermal time constant tt 80 min

Static friction Tf 2.2 Nm

22 kgfcm

Weight w95 kg

Weight (with Brake) w110 kg

Maximum Current of Servo Amp. Imax 180 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

@100/2500HV*s

Over Load Duty

100

1 10 100 1000 10000

"On" time (sec)

Duty (time%)

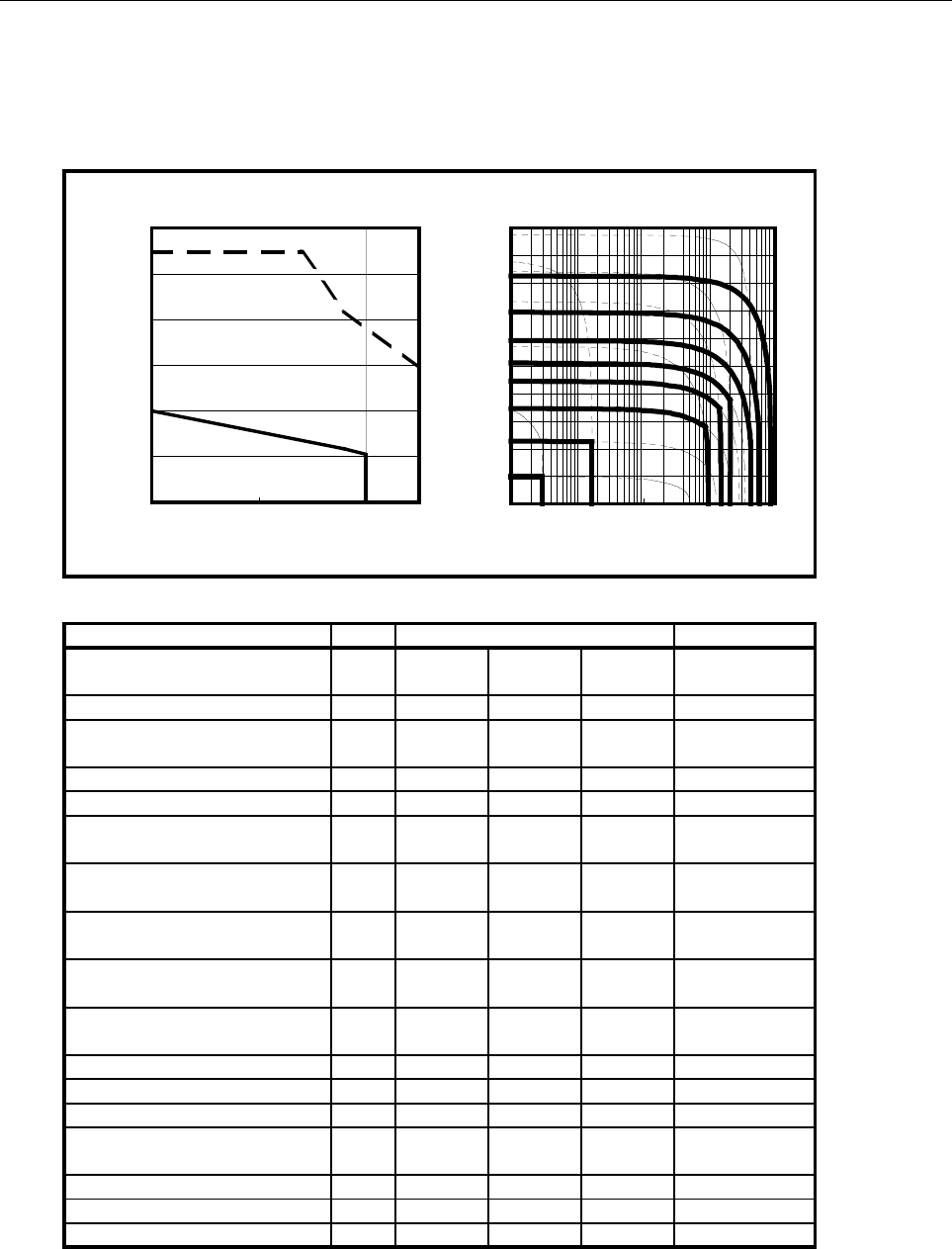

Speed-Torque Characteristics

100

150

200

250

300

0 1000 2000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
