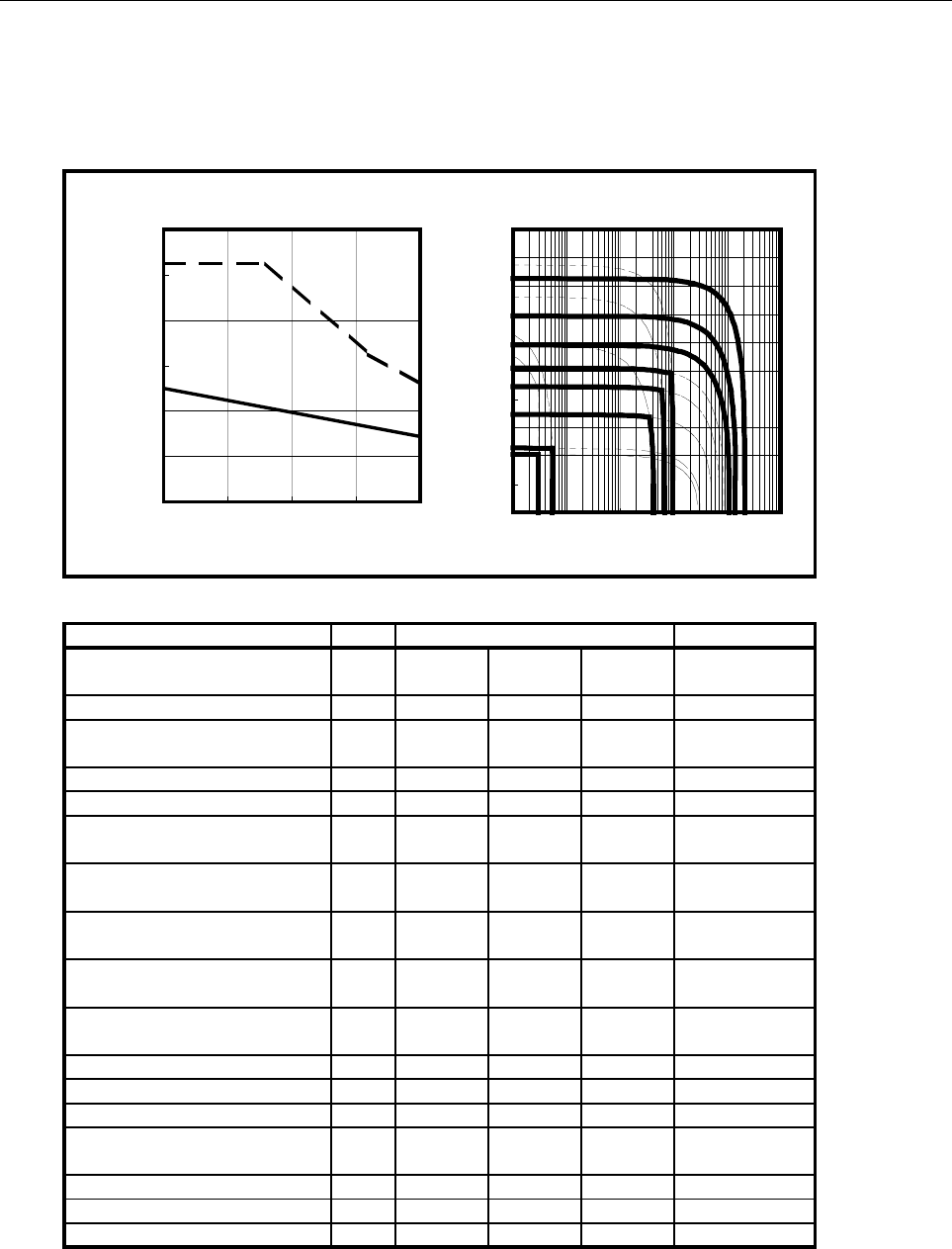

B-65262EN/03 FANUC AC SERVO MOTOR α(HV)iS SERIES 3.SPECIFICATIONS AND CHARACTERISTICS
- 215 -
M
odel Specificatio
n
A06B-0296-B
□
1
□
Data sheet
Parameter Symbol Unit
Stall Torque
(*)
Ts 500 Nm
5100 kgfcm
Stall Current
(*)
Is 115 A (rms)
Rated Output
(*)
Pr 60 kW
80 HP
Rating Speed
Nr 2000
min
-1
Maximum Speed
Nmax 2000
min
-1
Maximum Torque
(*)
Tmax 1050 Nm
10700 kgfcm
Rotor Inertia
Jm 0.127
kgm
2
1.3
kgfcms
2
Rotor Inertia (with Brake)
Jm -
kgm
2
-
kgfcms
2
Torque constant
(*)
Kt 4.3 Nm/A (rms)
44 kgfcm/A (rms)
Back EMF constant (
１
１１
１
phase)
(*)
Ke 150
V (rms)/1000 min
-1
Kv 1.4 V (rms)sec/rad
Armature Resistance (1 phase)
(*)
Ra 0.05
Ω
Mechanical time constant tm 0.001 s
Thermal time constant tt 200 min
Static friction Tf 4 Nm
41 kgfcm
Weight w240 kg
Weight (with Brake) w- kg
Maximum Current of Servo Amp. Imax 360 A (peak)
Value
(*) The values are the standard values at 20
℃
and the tolerance is ±10%.
The speed-torque characteristics very depending on the type of software, parameter setting,
and input voltage of the digital servo software. (The above figures show average values.)
These values may be changed without notice.
@500/2000HV*s
Over Load Duty
0
10
20
30
40
50
60
70
80
90
100
1 10 100 1000 10000 100000
"On" time (sec)
Duty (time%)
Speed-Torque Characteristics
0
200
400
600
800
1000
1200
0 500 1000 1500 2000
Speed (min
-1
)
Torque (Nm)
Intermitting
Operation
110%
120%
130%
140%
150%
170%
210%
MAX
Continuous
Operation
