AC Servo Motor Alpha i/is Series Descriptions Page 330

Descriptions

Page of 368

/ 368

FANUC CONTROL MOTOR α

series

DESCRIPTIONS

3／4

FANUC LTD

B-65262E/03-05

Description Desig. Date Edit.

01 04.06.01 FURUYA

Connection of power line of α300HVis / α500HVis

Title

Sheet

Draw. No.

3. Connection of the power line

FANUC AC SERVO MOTOR

α300/2000HVis / α500/2000HVis can be driven by one SVM1-360HVi or two

SVM1-180HVi. Usually one SVM1-360HVi is used for driving these motors.

The motors have two set of the terminal so as to connect two SVM1-180HVi.

If the motor is driven by one SVM1-360HVi, attach jumper wires to the terminal for parallel

connection as follows.

If the motor is driven by two SVM1-180HVi, connect the terminal and the amplifiers one to one.

The motors which shipped on and after June 2004 have the jumper wires in the terminal box.

If the motor is driven by one SVM1-360HVi,use this jumper wires. If the motor is driven by two

SVM1-180HVi,remove these jumper wires.

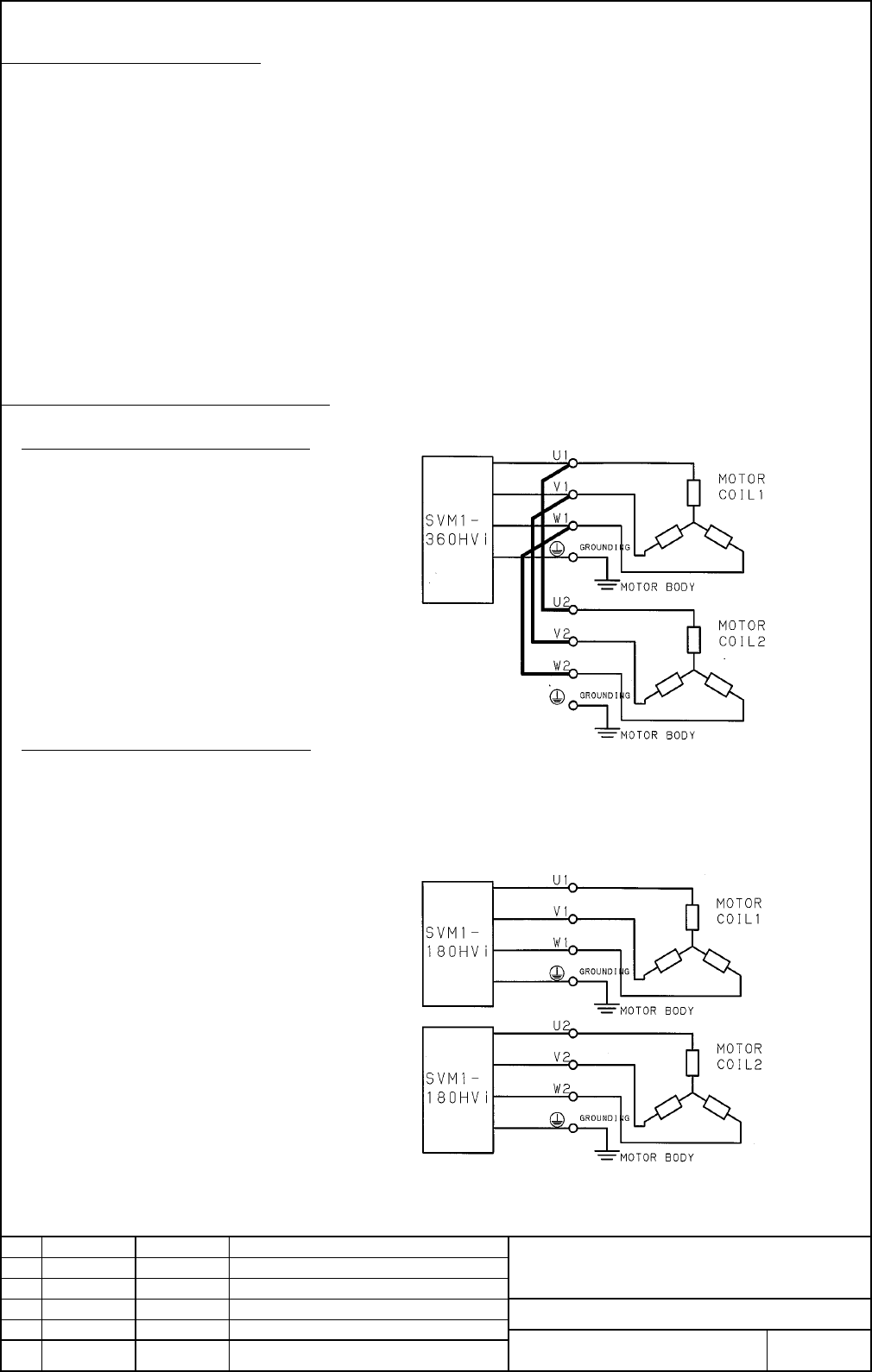

3.1 How to connection of the power line

In case of one SVM1-360HVi drive

Use the jumper wires for parallel connection.

In case of two SVM1-180HVi drive

Connect the amplifiers and the motors one to

one. Remove the jumper wires.
