AC Servo Motor Alpha i/is Series Descriptions Page 331

Descriptions
FANUC CONTROL MOTOR α
ι
series
DESCRIPTIONS
4／4
FANUC LTD
B-65262E/03-05
Description Desig. Date Edit.
01 04.06.01 FURUYA

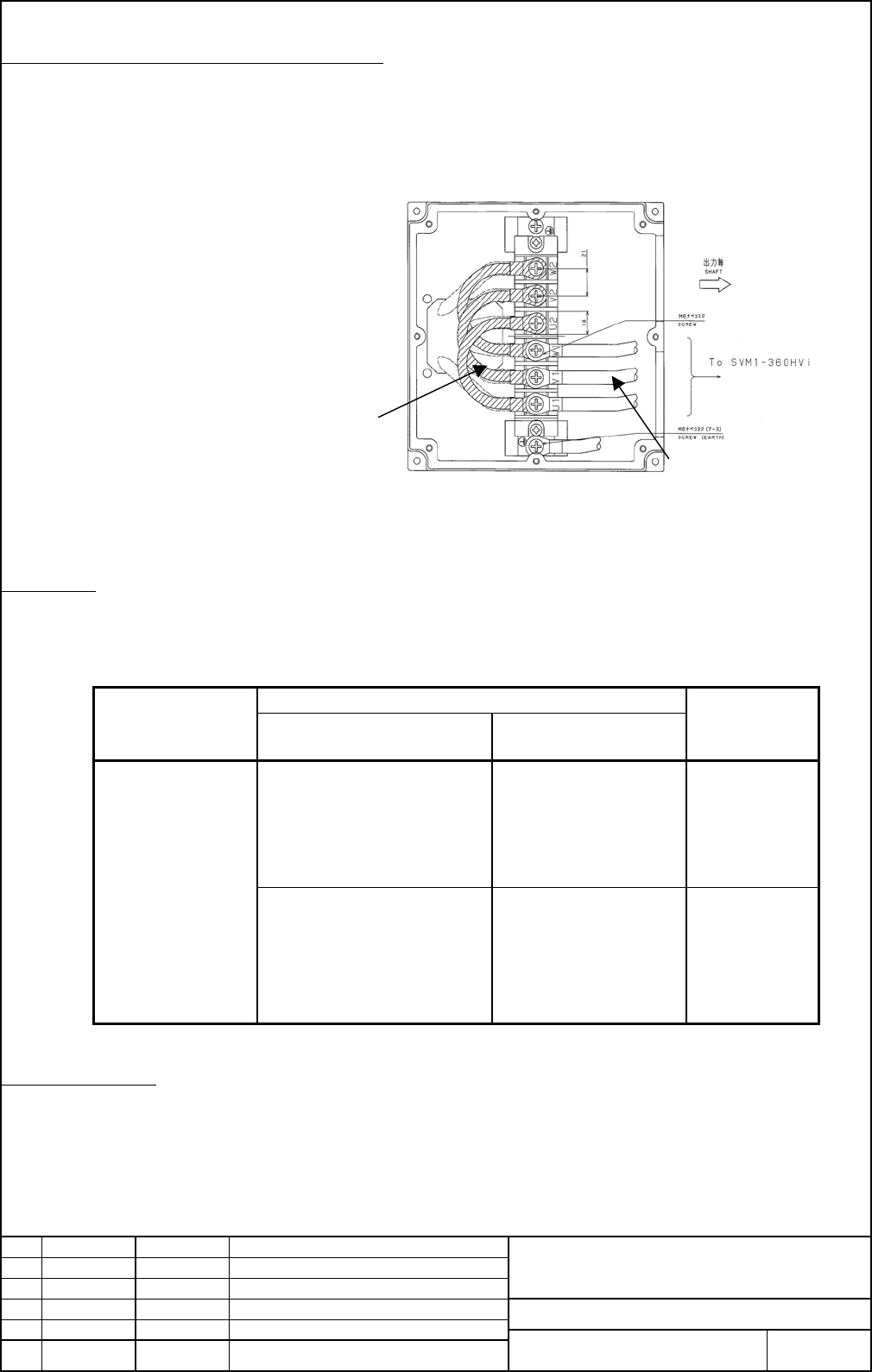

Connection of power line of α300HVis / α500HVis
Title
Sheet
Draw. No.
3.2 Details of the connection of the power line
In case of one SVM1-360HVi drive, attach the jumper wires to
the terminal for pararell connection as follows.
The motors which shipped on and after June 2004 have the
jumper wires in the terminal box.
4 Amplifier
α300/2000HVis / α500/2000HVis can be driven by one SVM1-360HVi or two SVM1-180HVi.
Other Amplifiers can not drive the motors.
Servo Amplifier Module(SVM)
Motor Models
Designation specification
Jumper wires
Need or no
need
One SVM1-360HVi
(need one DB Module)
Amplifier
A06B-6124-H109
DB Module
A06B-6079-H401
Need
Jumper
wires
α300/2000HVis
α500/2000HVis
Two SVM1-180HVi
(need two DB Module)
Amplifier
A06B-6124-H106
DB Module
A06B-6079-H401
No Need
Jumper
wires
5 Servo parameter
The servo parameter which loaded at “Servo parameter intialization” is for one SVM1-360HVi drive.
The servo parameter is different between one SVM1-360HVi drive and SVM1-180HVi drive partly.
If the motor is driven by two SVM1-180HVi, please ask FANUC Ltd for the servo parameter of
two SVM1-180HVi drive.
Jumper wires for parallel
connecton
Connection of the power line
To amplifier
