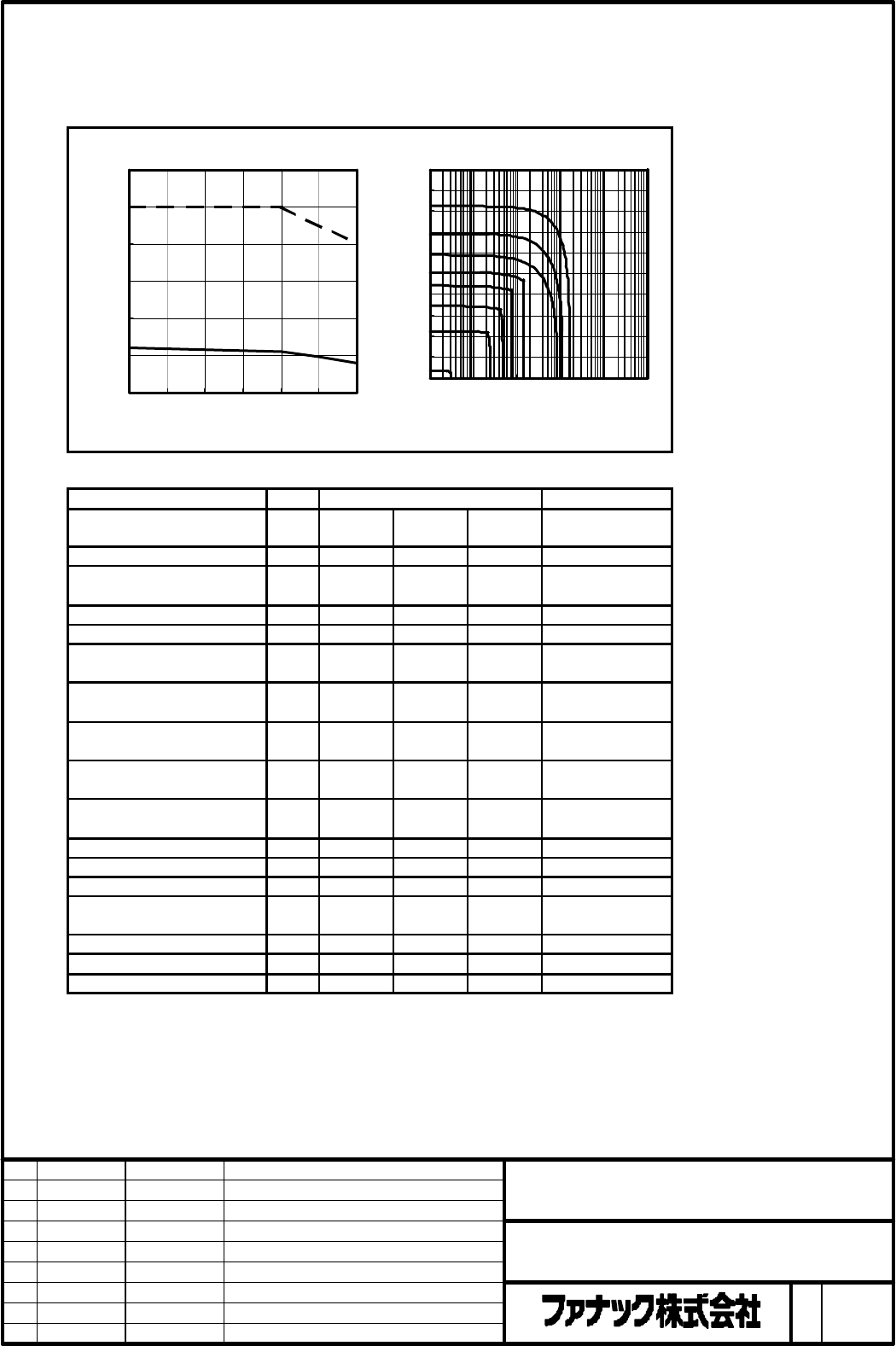

AC Servo Motor Alpha i/is Series Descriptions Page 339

Descriptions

Page of 368

/ 368

Edit

???

Title

Date Design Description

FANUC AC SERVO MOTOR αis/αi series DESCRIPTIONS

FANUC AC SERVO MOTOR βis series DESCRIPTIONS

High speed AC Servo motor for live tool

B-65262EN/03-6, B-65302EN/01-1

04.09.02 T.Tamaki

Draw.

Add High speed AC Servo motor for live tool

Model

1/6000

Specification

A06B-0116-

Data sheet

Parameter

Symbol

Value Unit

Stall Torque (*) Ts 1.2 Nm

12 kgfcm

Stall Current (*)

Is 2.7 A (rms)

Rated Output (*)

Pr 0.5 kW

0.67 HP

Rating Speed Nr 6000

min

-1

Maximum Speed Nmax 6000

min

-1

Maximum Torque (*) Tmax 5 Nm

51 kgfcm

Rotor Inertia

Jm 0.000034

kgm

0.000347

kgfcms

Rotor Inertia (with Brake) Jm 0.000043

kgm

0.000439

kgfcms

Torque constant (*) Kt 0.45 Nm/A (rms)

4.6 kgfcm/A (rms)

Back EMF constant (

phase) (*)

Ke 15.4

V (rms)/1000 min

-1

Kv 0.14 V (rms)sec/rad

Armature Resistance (1 phase) (*)

Ra 1.5 O

Mechanical time constant tm 0.0007 s

Thermal time constant tt 15 min

Static friction Tf 0.04 Nm

0.4 kgfcm

Weight

w 1.5 kg

Weight (with Brake)

w 1.9 kg

Max. Current of Servo Amp. Imax 20 A (peak)

(*) The values are the standard values at 20

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting, and

input voltage of the digital servo software. (The above figures show average values.)

Over Load Duty

100

1000

10000

100000

ON time[sec]

Duty[%]

Speed-Torque Characteristics

0 1000 2000 3000 4000 5000 6000

Speed [min-1]

Torque [Nm]

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operating

Intermitting

Operating
