AC Servo Motor Alpha i/is Series Descriptions Page 368

Descriptions

Page of 368

/ 368

Draw.

Title

Terashima05.10.25 01

PAGE

Feedback connector for αi / βis series

servo moto

2／2

FANUC LTD.

B-65262EN/03-09

DescriptionDesign Date Edit

Imai

3. Outline

The cable side feedback connectors by HIROSE ELECTRIC CO., LTD. are newly added to

the lineup as a second source (previous connector manufacturer: JAPAN AVIATION

ELECTRONICS INDUSTRY, LTD)

The connectors by JAPAN AVIATION ELECTRONICS INDUSTRY, LTD are cramping type

termination, and HIROSE’s connectors are soldering type termination.

These connectors can be applicable for the all models of α

i series and βis 0.4 to 22.

4. Added Specifications

For signal

Straight

type

HB34B-12WPA-10S or HB34B-12WPB-10S

(HIROSE ELECTRIC CO.,LTD.)

A06B-6114-K205#S (FANUC Specification)

Connector

specifications

Elbow

type

HB34B-12WLPA-10S or HB34B-12WLPB-10S

(HIROSE ELECTRIC CO.,LTD.)

A06B-6114-K205#

E (FANUC Specification)

Compatible cable O.D.

φ5.7 to φ7.3: HB34B-12WPA-10S or HB34B-12WLPA-10S

φ6.5 to φ8.0: HB34B-12WPB-10S or HB34B-12WLPB-10S

As for the FANUC specification, two types of bushings and

endnuts are included. :for φ5.7 to φ7.3 and for φ6.5 to φ8.0

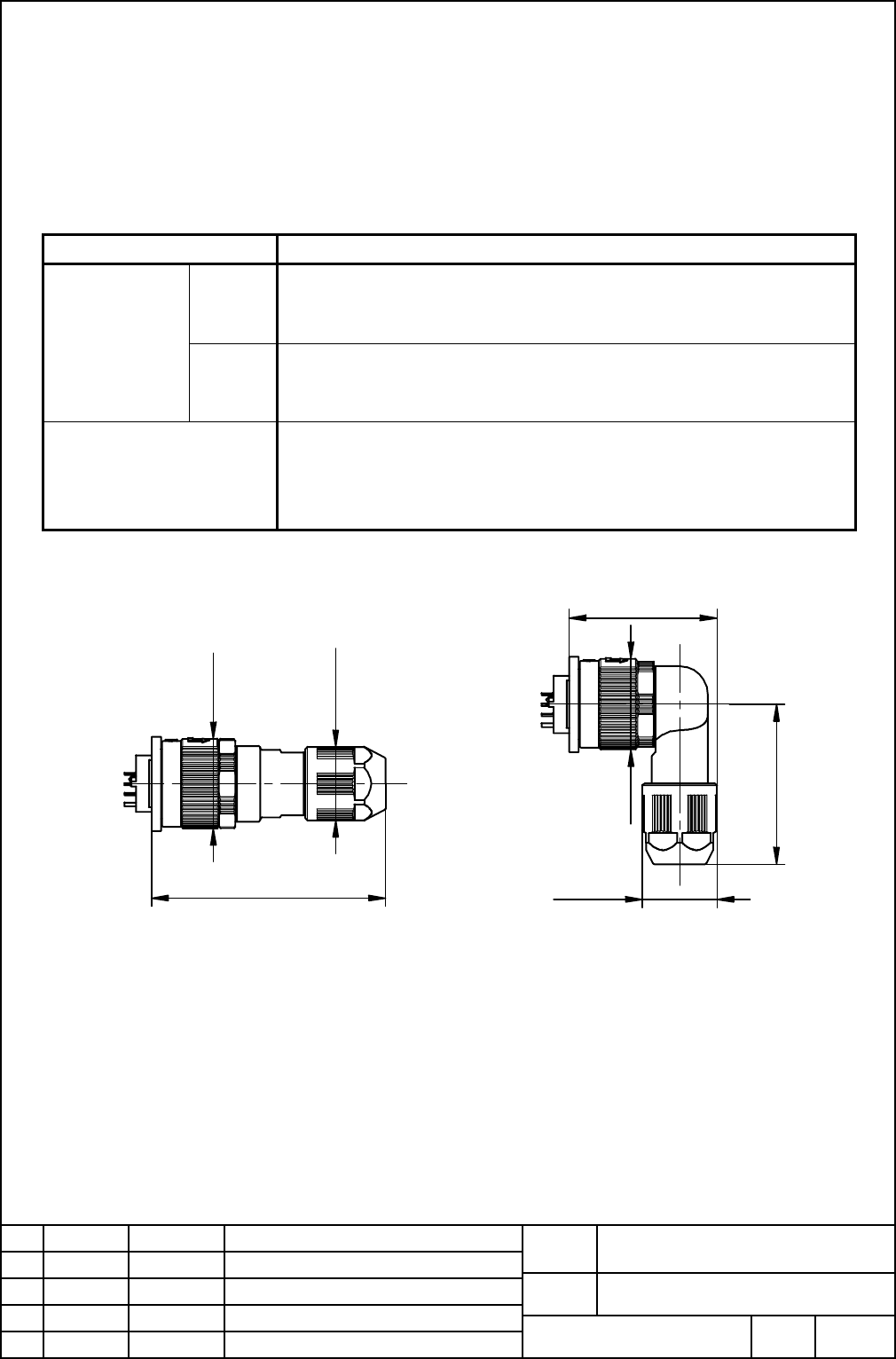

The size of connector when mated is as follows.

19O

15.6O

50.6 (m ax .)

19O

15.6O

31.0

34.5 (m ax .)

Straight type Elbow type
