B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 2.HOW TO USE SERVO MOTORS

- 21 -

2.2.3.4 Connectors on the cable side (for power : models α

αα

α8is to

αα

α50is or α

αα

α4i to α

αα

α40i)

To meet the IEC60034 standard, TUV-approved plug connectors and

cable clamps should be used in connecting the power cable. To meet

the IEC60034 standard by using a cable or conduit hose seal adapter,

contact the manufacturer for details. FANUC can provide TUV-

approved types (waterproof) and waterproof types as plug connectors

on the cable side for the FANUC αi series AC servo motors; all these

connectors are black. Of course, conventional plug connectors may be

used, because they are MS-compatible. The specifications of each

connector are explained based on the examples shown below.

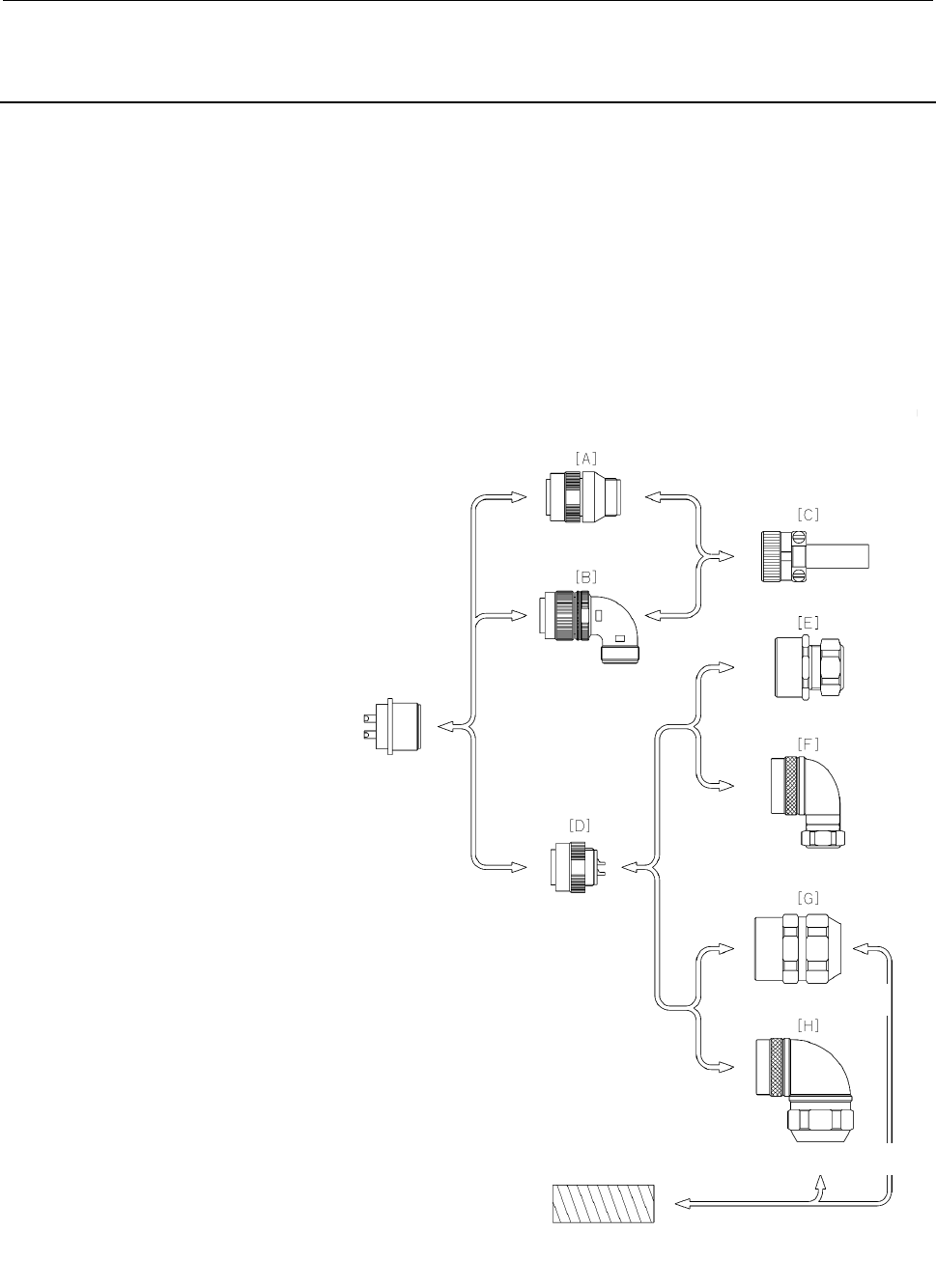

Example of connector connection

Plug connector

(straight type)

Plug connector

(elbow type)

Receptacle

connector

(motor side)

Cable clamp

Cable seal adapter

(straight type)

Plug connector

(single-unit block type)

Cable seal adapter

(90° elbow type)

Conduit hose seal adapter

(straight type)

Conduit hose seal adapter

(

90° elbow t

)

Conduit hose
