AC Servo Motor Alpha i/is Series Descriptions Page 43

Descriptions

Page of 368

/ 368

B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 2.HOW TO USE SERVO MOTORS

- 25 -

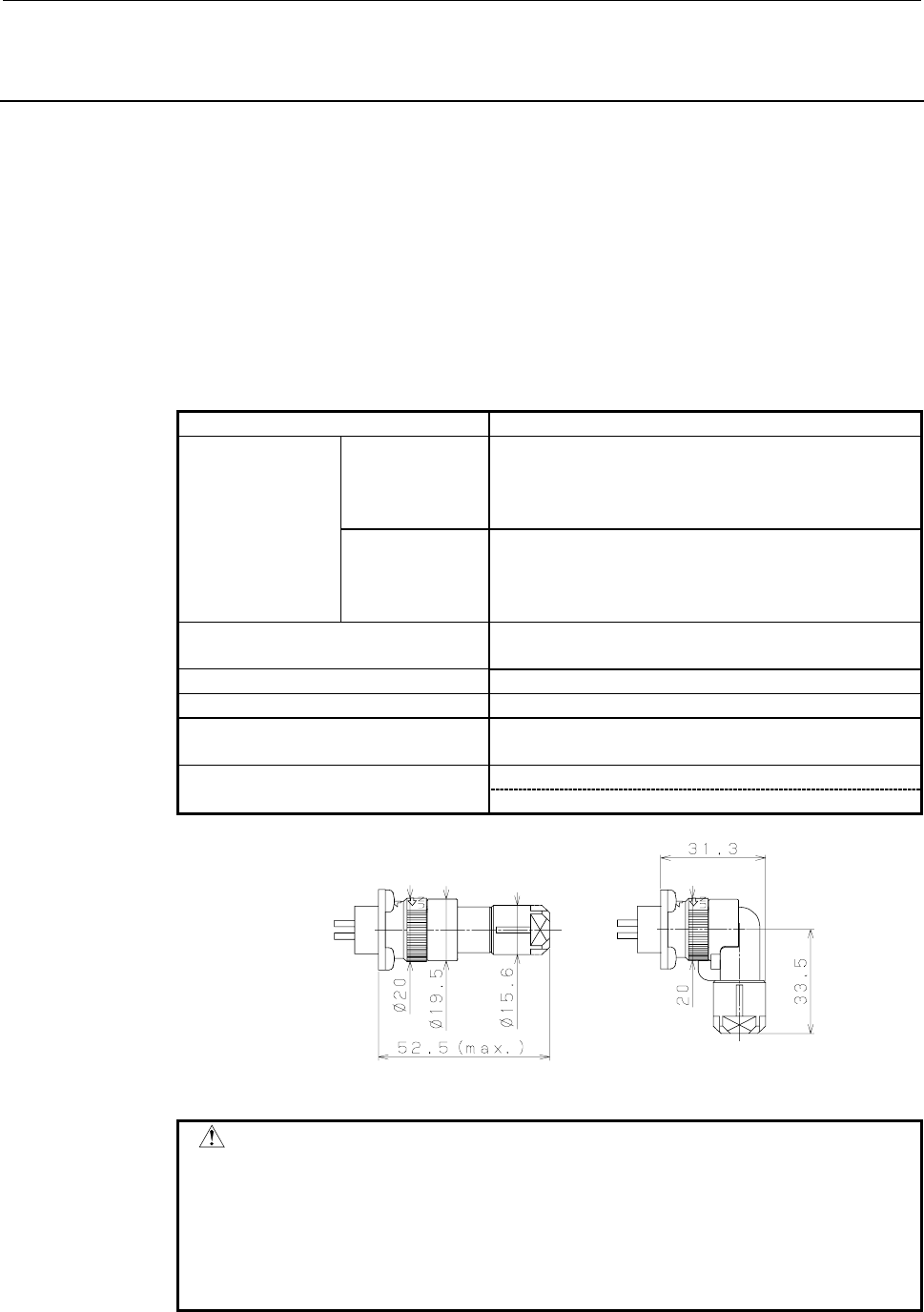

2.2.3.5 Connectors on the cable side (for brake : models α

αα

α8is to

αα

α200is and α

αα

α4i to α

αα

α40i)

The models α8is to α200is and α4i to α40i use a dedicated connector

to connect the built-in brake cable.

This connector is dripproof. It is connected by soldering, so no special

tool is required.

This connector differs from conventional connectors used for the α

series. The following subsection explains this connector.

Consider soldering, cable clamp, and voltage drop. Also note that

there are restrictions.

Specifications of connectors for brake

(models α

αα

α8is to α

αα

α200is and α

αα

α4i to α

αα

α40i)

For brake

Straight type

JN2DS04FK2

(Japan Aviation Electronics Industry)

A06B-6114-K213#S

(FANUC specification)

Connector

specifications

Elbow type

JN2FS04FK2

(Japan Aviation Electronics Industry)

A06B-6114-K213#E

(FANUC specification)

Applicable wire size

AWG#16 or less (1.25mm

or less)

* Solder pot diameter φ1.9

Insulation external diameter φ2.7 or less

Compatible cable O.D. φ6.5 to 8.0

Example of applicable wire

300-V two-conductor vinyl heavy-duty power cord

cable VCTF (JIS C 3306) or equivalent

0.75mm

(AWG#18) when cable length 30 m or less

Applicable wire size and cable length

1.25mm

(AWG#16) when cable length 50 m or less

Straight type

Elbow type

CAUTION

1 The same body is used for the brake and fan connectors. They

differ in the key position to prevent an improper insertion.

2 If the cable length is longer than or equal to 50 m, take measures

such as installation of repeaters so that the sum of wire resistance

(for both ways) becomes 1.5Ω or less.

3 For details of brakes, see Chapter 6, "BUILT-IN BRAKE."
