2.HOW TO USE SERVO MOTORS SPECIFICATIONS FOR THE αiS/αi SERIES B-65262EN/03

- 40 -

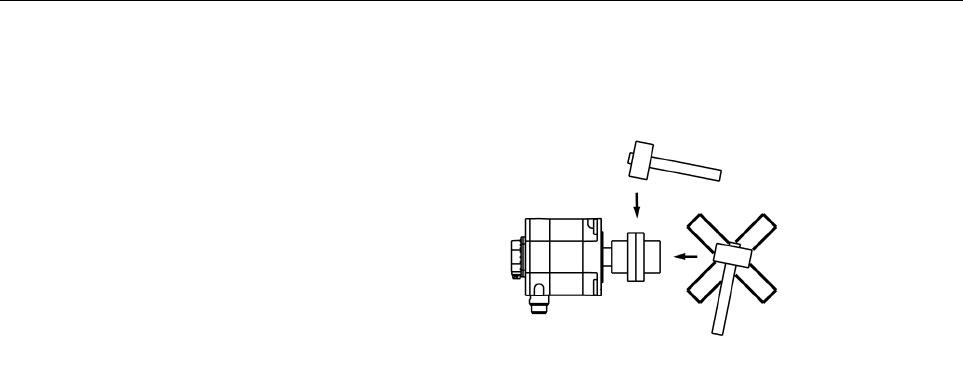

• When tapping slightly to remove the tightly contacted tapered

surface, tap in the radial direction to prevent a shock in the axial

direction.

• Suppress the rotary unbalance of the connected power

transmission element to the level as low as possible. It is usually

believed that there is no problem in the symmetrical form. Be

careful when rotating continuously the asymmetrical different

form power transmission element. Even if the vibration caused

by the unbalance is as small as 0.5G, it may damage the motor

bearing or the sensor.

• An exclusive large oil seal is used in the front flange of the

models α8is to α50is.

The oil seal surface is made of steel plate. Take care not to apply

a force to the oil seal when installing the motor or connecting the

power transmission elements.
