B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 3.SELECTING A MOTOR

- 47 -

Cautions in calculating the load torque

When calculating the torque, take the following precautions:

• Allow for the friction torque caused by the gib fastening force

The torque calculated only from the weight of a movable part

and the friction coefficient is generally quite small. The gib

fastening force and precision of the sliding surface may have a

great effect on the torque.

• The pre-load of the bearing or nut of the ball screw, pre-tension

of the screw, and other factors may make T

of the rolling

contact considerable.

In a small, lightweight machine tool, the friction torque will

greatly affect the entire torque.

• Allow for an increase in friction on the sliding surface (F

)

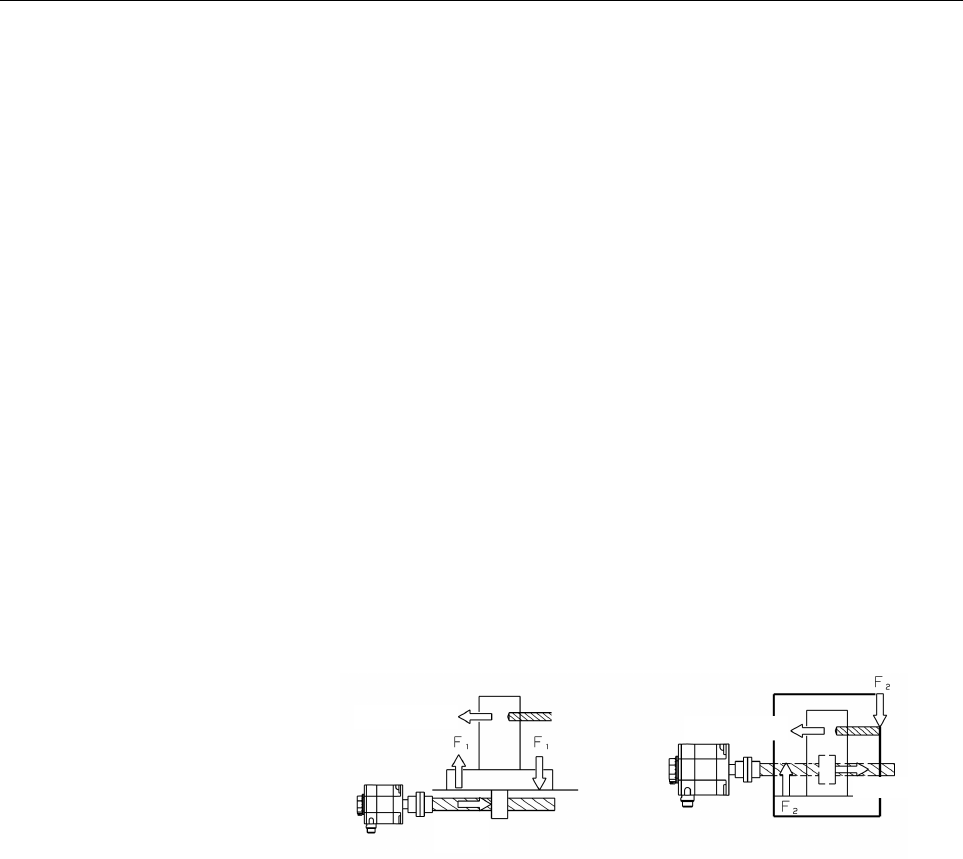

caused by the cutting resistance. The cutting resistance and the

driving force generally do not act through a common point as

illustrated below. When a large cutting resistance is applied, the

moment increases the load on the sliding surface.

When calculating the torque during cutting, allow for the friction

torque caused by the load.

Cutting force

Driving

force

Cutting force

Driving force

• The feedrate may cause the friction torque to vary greatly.

Obtain an accurate value by closely examining variations in

friction depending on variations in speed, the mechanism for

supporting the table (sliding contact, rolling contact, static

pressure, etc.), material of the sliding surface, lubricating system,

and other factors.

• The friction torque of a single machine varies widely due to

adjustment conditions, ambient temperature, and lubrication

conditions. Collect a great amount of measurement data of

identical models so that a correct load torque can be calculated.

When adjusting the gib fastening force and backlash, monitor the

friction torque. Avoid generating an unnecessarily great torque.
