3.SELECTING A MOTOR SPECIFICATIONS FOR THE αiS/αi SERIES B-65262EN/03

- 58 -

3.2.5 Calculating the Root-mean-square Value of the Torques

A motor gets hot in proportion to the square of the torque. For a servo

motor for which the load condition always changes, the calculated

root-mean-square value of torque in a cycle must be sufficiently

greater than the stall torque.

Root-mean-square value of torque in acceleration/deceleration in rapid

traverse

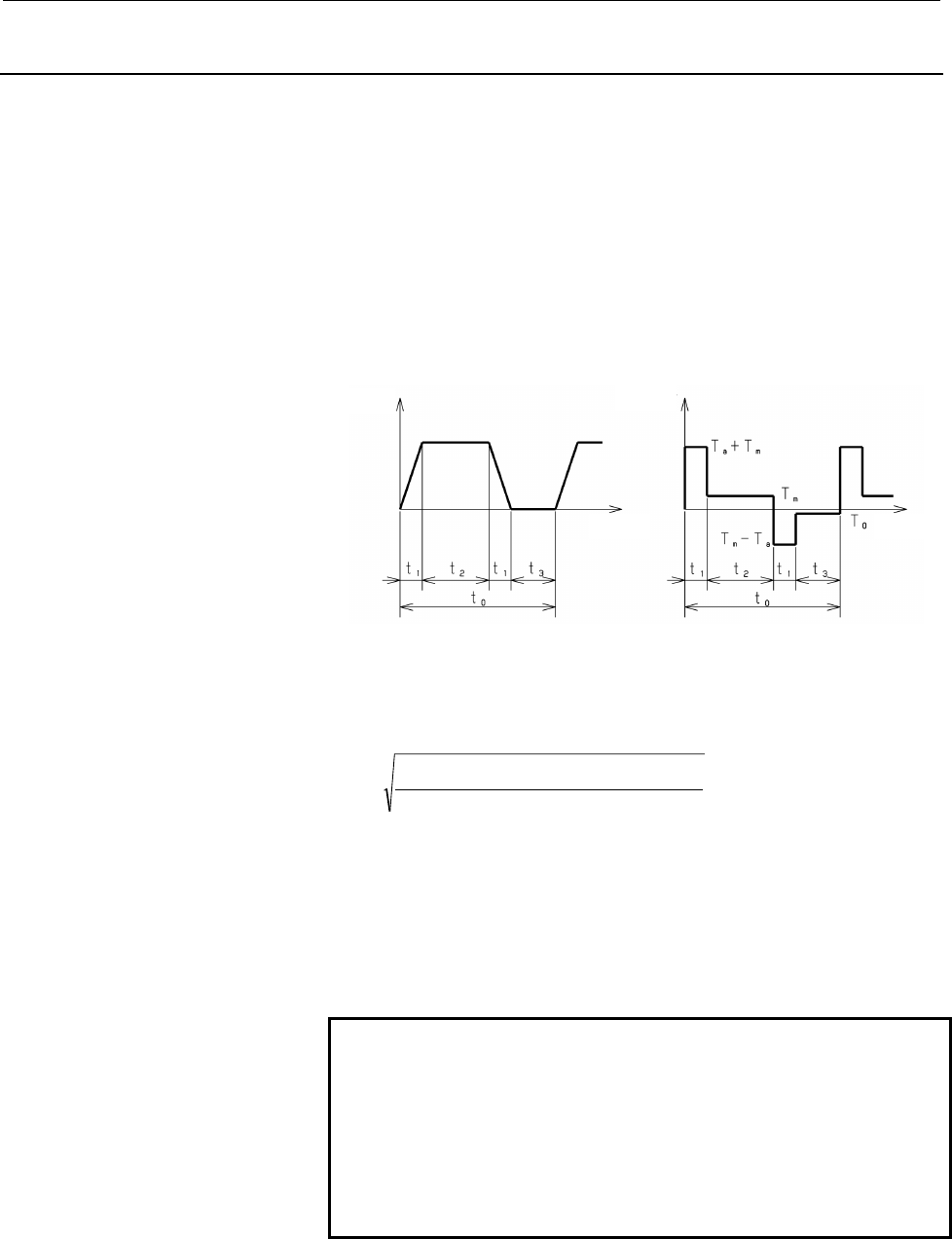

First, generate an operation cycle which performs acceleration/

deceleration in rapid traverse with a desired frequency of positioning

in rapid traverse. Write the time-speed graph and time-torque graph as

shown below.

Speed

Time Time

Torque

From the time-torque graph, obtain the root-mean-square value of

torques applied to the motor during the single operation cycle. Check

whether the value is smaller than or equal to the torque at stall.

() ()

30121

tTtTTtTtTT

mamma

rms

+−+++

: Acceleration torque

: Friction torque

: Torque when stopped

When T

rms

falls within 90% of the stall torque T

, the servo motor can

be used. (The entire thermal efficiency and other margins must be

considered.)

NOTE

The motor actually rotates, but the determination

must be based on the stall torque.

When the motor is being operated at high speed for

a comparatively large proportion of the time, you

must take the rotating speed of the motor into

consideration and evaluate whether output can be

specified in terms of a continuous operation torque.
