B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 3.SELECTING A MOTOR

- 77 -

3.4 CHARACTERISTIC CURVE AND DATA SHEET

Performance of each motor model is represented by characteristic

curves and data sheet shown below, which are given in Part II and

afterward.

3.4.1 Performance Curves

The characteristic curves representing the "speed-torque

characteristics" and "overload duty characteristic" are given for each

motor model.

Speed-torque characteristics

Speed-torque characteristics indicate the relationship between the

output torque and speed of the motor.

The motor can be operated continuously at any combination of speed

and torque within the continuous operating zone. Within the

intermittent operating zone outside the continuous operating zone, the

motor must intermittently be used using the duty cycle curve.

The limit of continuous operating zone is determined under the

following conditions.

• The ambient temperature for the motor is 20°C.

• The drive current of the motor is pure sine wave.

And this zone may be limited by the thermal protection of mounted

precision instrument. (Pulsecoder)

The torque decreases by 0.11% for the αis series or by 0.19% for the

αi series according to the negative temperature coefficient of

magnetic materials every time the ambient temperature increases by

1°C after it exceeds 20°C.

The intermittent operating zone may be limited by the motor input

voltage.

The following table shows the values when the input voltage is 200 V

for the αis and αi series or 400 V for the α(HV)is and α(HV)i series.

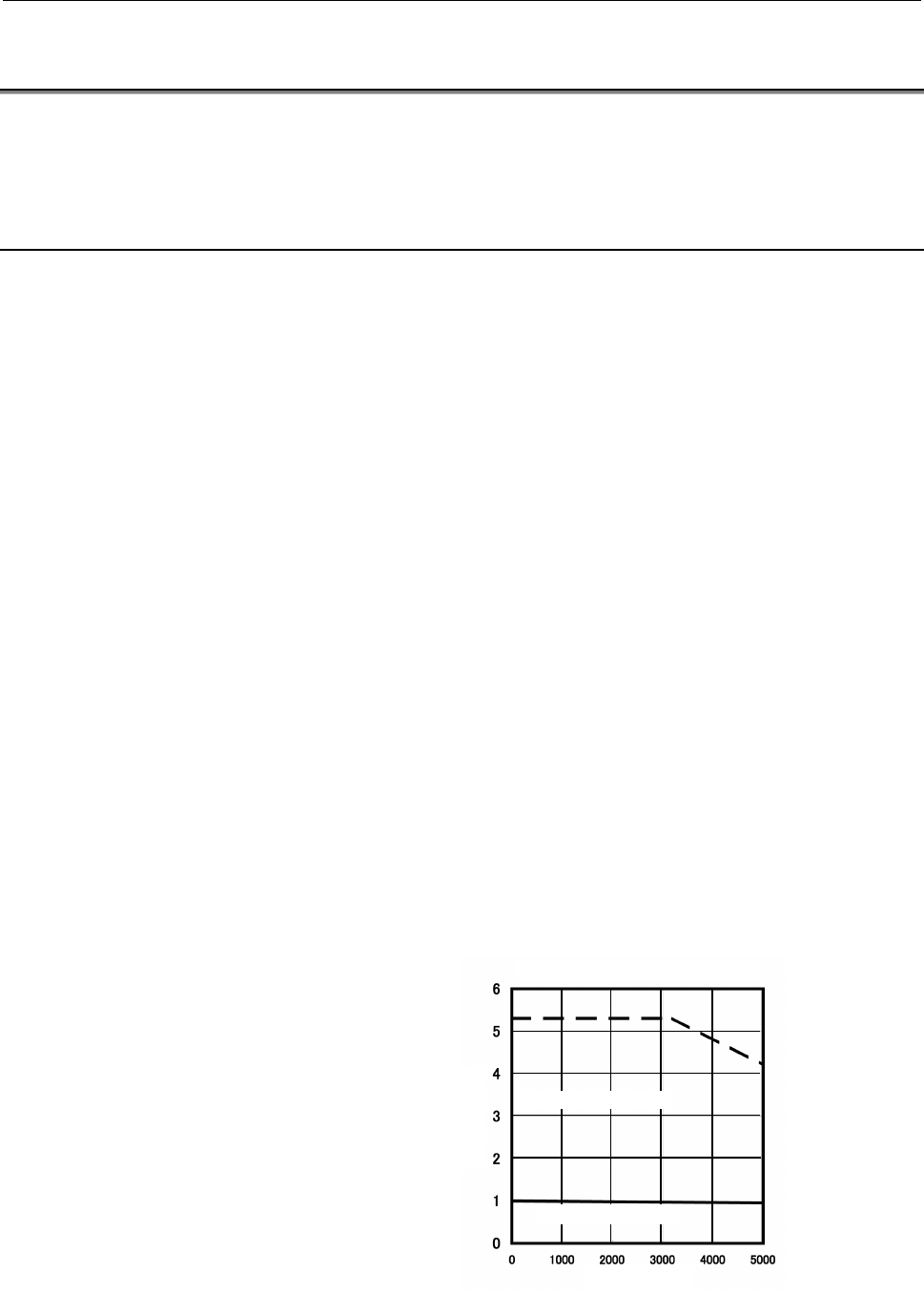

Speed - torque characteristics

Speed (min

-1

)

Intermittent operating

Continuous operating

Torque (Nm)

Fig.3.4.1(a) Example of α

αα

α1/5000i
