4. DESCRIPTION OF PARAMETERS
B–63610EN/01
220
NOTE
M04 is output when “0” is set.
5114
Return or clearance value of drilling canned cycle G83
Return value of high–speed peck drilling cycle G73
[Data type] Word
[Unit of data]
Increment system IS-A IS-B IS-C Unit
Millimeter input 0.01 0.001 0.001 mm
Inch input 0.001 0.0001 0.0001 inch
[Valid data range] 0 to 32767
For M series this parameter sets the return value in high–speed peck
drilling cycle G73 (G83 for T series).
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
G73 for M series

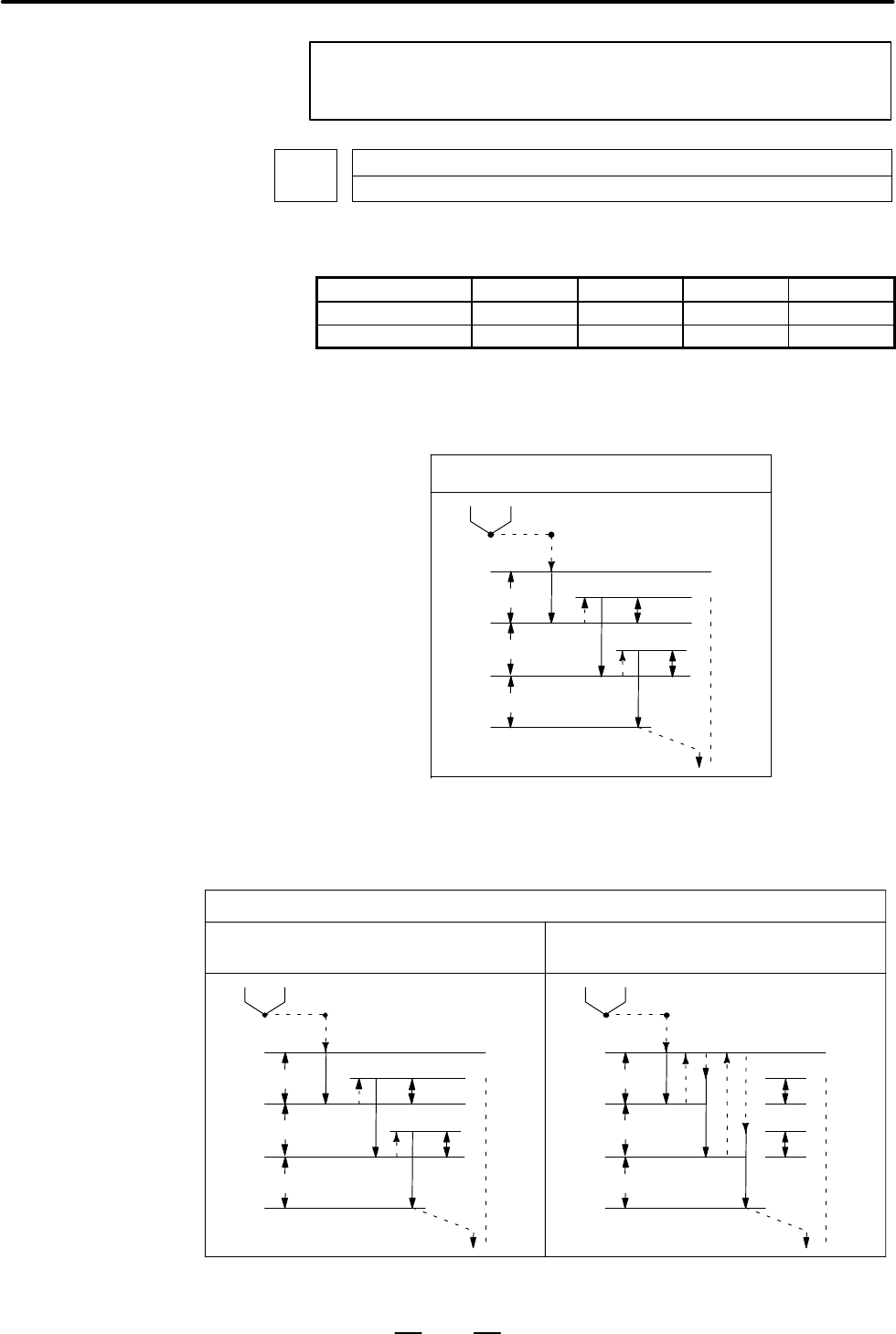

Fig.4.24.1 (a) High–speed Peck Drilling Cycle G73
For T series this parameter sets the return or clearance value in drilling
canned cycle G83.
Parameter No.5101 #2 RTR=0
(Peck drilling cycle)
Parameter No.5101 #2 RTR=0
(High speed peck drilling cycle)
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d
G83 for T series
Fig.4.24.1 (b) Drilling Canned Cycle G83
