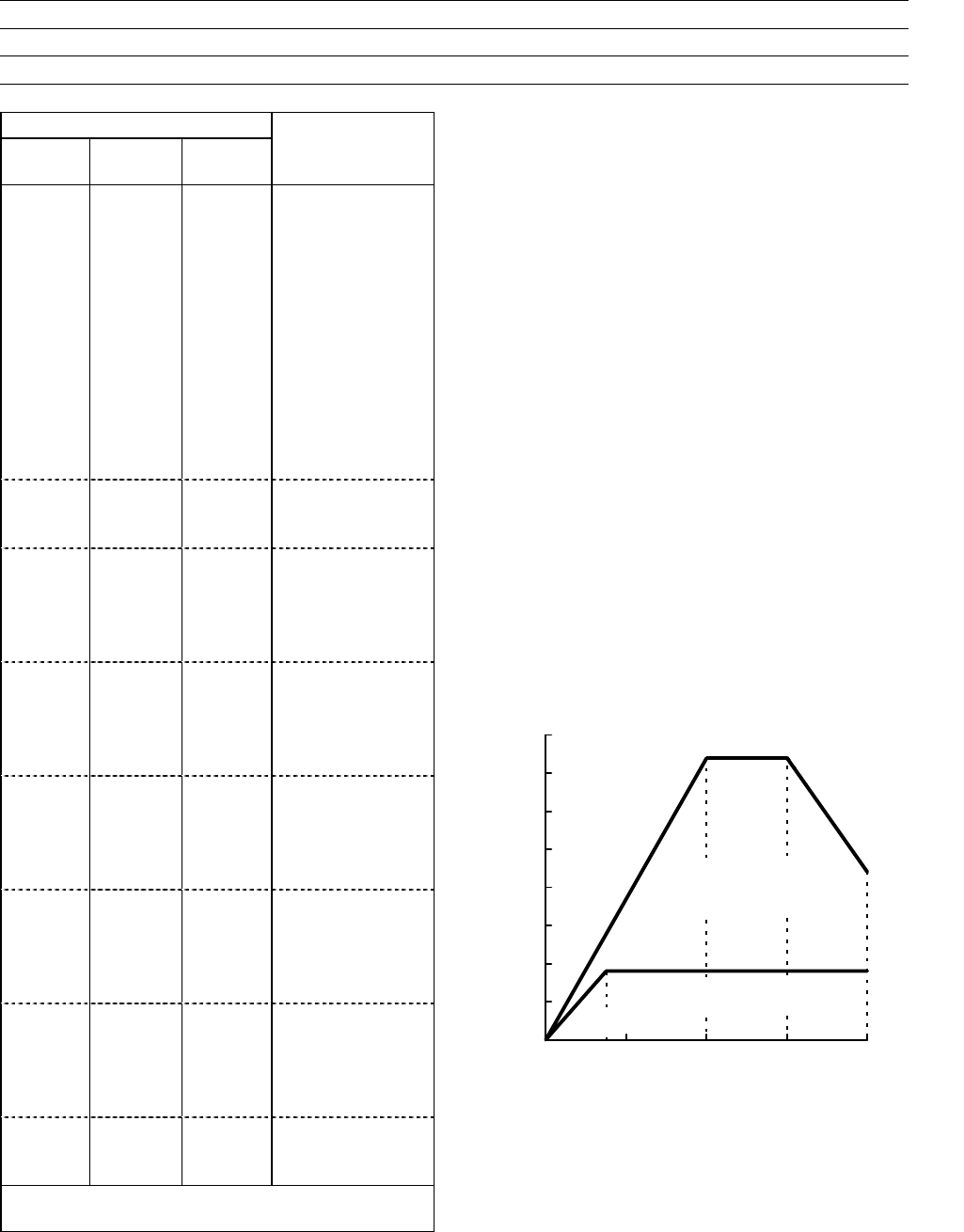

Spindle parameter table [SPINDLE HRV Control] (2005.03.10)
MTB: GENERAL
Spindle motor: A06B-1483-B305 α1.5/8000i (IP65) MZi sensor 128 teeth
Spindle amplifier: A06B-6121-H006#H550 SPM-5.5HVi (TYPE A) For FS16i, FS15i
A06B-6121-H006#H570 SPM-5.5HVi (TYPE A) For FS30i
Parameter No.
α1.5/8000i (IP65)
FS15i FS16i FS30i
0.9/3.7 kW
1500/8000 min
-1
3001 4001 4001 00000001
3002 4002 4002 00000000
3003 4003 4003 00000000
3004 4004 4004 00000000
3006 4006 4006 00000000
3007 4007 4007 00000000
3008 4008 4008 00000000
3009 4009 4009 00000000
3010 4010 4010 00000001
3011 4011 4011 00011001
3012 4012 4012 10000010
3013 4013 4013 00001100
3019 4019 4019 00000100
3020 4020 4020 8000
3039 4039 4039 0
3080 4080 4080 95
3100 4100 4100 4100
3101 4101 4101 100
3102 4102 4102 5534
3103 4103 4103 75
3104 4104 4104 3000
3105 4105 4105 0
3106 4106 4106 8000
3107 4107 4107 0
3108 4108 4108 0
3109 4109 4109 25
3110 4110 4110 563
3111 4111 4111 68
3112 4112 4112 200
3113 4113 4113 1635
3114 4114 4114 0
3115 4115 4115 100
3116 4116 4116 9598
3117 4117 4117 90
3118 4118 4118 100
3119 4119 4119 5
3120 4120 4120 0
3124 4124 4124 0
3127 4127 4127 493
3128 4128 4128 0
3129 4129 4129 0
3130 4130 4130 25700
3134 4134 4134 110
3169 4169 4169 0
Maximum power at acceleration
(for selecting PSM): 4.44 kW
[Parameter setting procedure]
(1) Load parameters automatically with th
e
model code 300.
Note) If you don't want to initialize adjuste
d
parameters, you should not loa
d
parameters automatically.
(2) Change parameters manually according t
o
the table.
(3) Set parameters for sensor system.
(4) Power off/on to activate the SPINDLE
HRV Control parameters surely.
Output
(kW)
0
0.5
1
1.5
2
2.5
3
3.5
4
0 2000 4000 6000 8000
Continuous operatin
g
zone
1500
2.2kW
3.7kW
0.9kW
10min, S3 15%
operating zone
Motor speed (min-1)
A
A-221416/01E
