Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A) Additional Manual Page 29

Additional Manual
4.7. Exchange of Touch Panel Protection Sheet
LCD Unit for is Series CNC has a Touch Panel Protection Sheet on the face of Touch Panel to
protect the Touch Panel. When the screen cannot be watched clearly because of some damages or
stains, exchange the Touch Panel Protection Sheet.
Unit Specification of Touch Panel Protection Sheet
1 with touch panel and soft-key A02B-0236-K110
2 with touch panel A02B-0236-K130
4.7.1. How to exchange

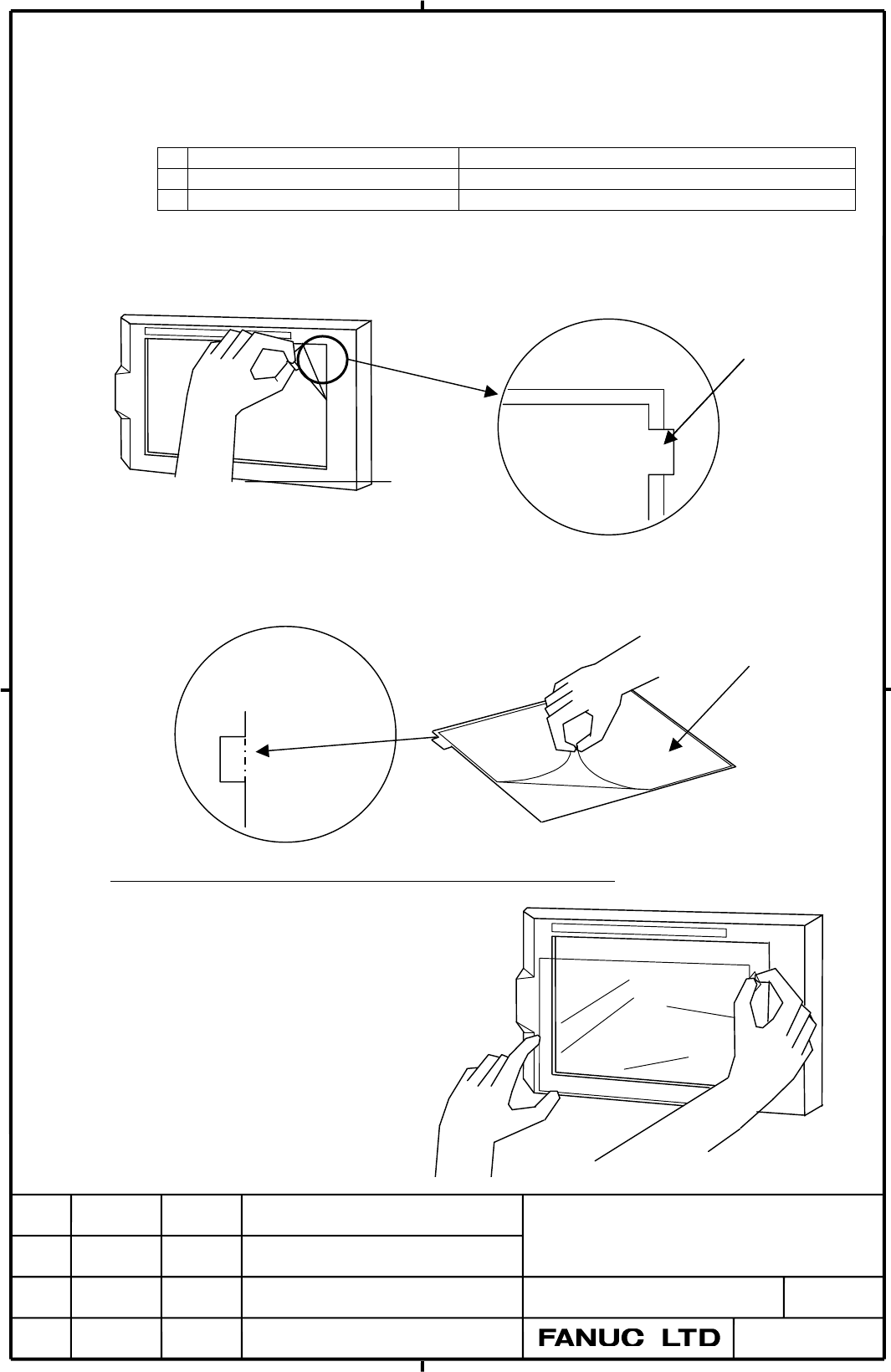

A) In case of A02B-0236-K110
(1) At first, remove the old Touch Panel Protection Sheet off.
(2) Clean the face of the LCD well.
(3) Bend the tab for exchange to the front side, and peel off the white film on the back
(facing the LCD side) of the new Touch Panel Protection Sheet.
LCD side
Touch Panel
Protection
Sheet
Bend the TAB
Tab for exchange
(4) Put the tab of exchange on the upper right side of the new one, and stick it on the face of the
LCD with care not to be entered the dust or etc. between the LCD and the Touch Panel
Protection Sheet as it enters into the
frame.
EDIT
SHEET 28
CUST
DESCRIPTION
DESIG.
DATE
CONNECTION and MAINTENANCE
MANUAL for
LCD Unit for is Series CNC
A-80907E
TITLE
DRAW. NO.
Previous page
Next page
