Modification of Connecting and Maintenance Manual for LCD Unit for is Series CNC (Model A) Additional Manual Page 7

Additional Manual
2. MOUNTING
2.1. Environment
When LCD Unit for is Series CNC is used, the following environmental conditions must be
ensured for the LCD Unit for is Series CNC
unit installation.
Ambient temperature
Operating : +0°C +53°C
Non-operating : - 20°C +60°C
Change in temperature Up to 20 degrees/hour
Ambient relative humidity
Standard : 10 to 75% (non-condensing)
Short-term : 10 to 90% (non-condensing)
(within one month)
Vibration
Operating : up to 0.5G
Non-operating : up to 1.0G
Environment Installed in a hermetically sealed cabinet
Altitude
Operating : - 60m 3000m
Non-operating : - 60m 12000m

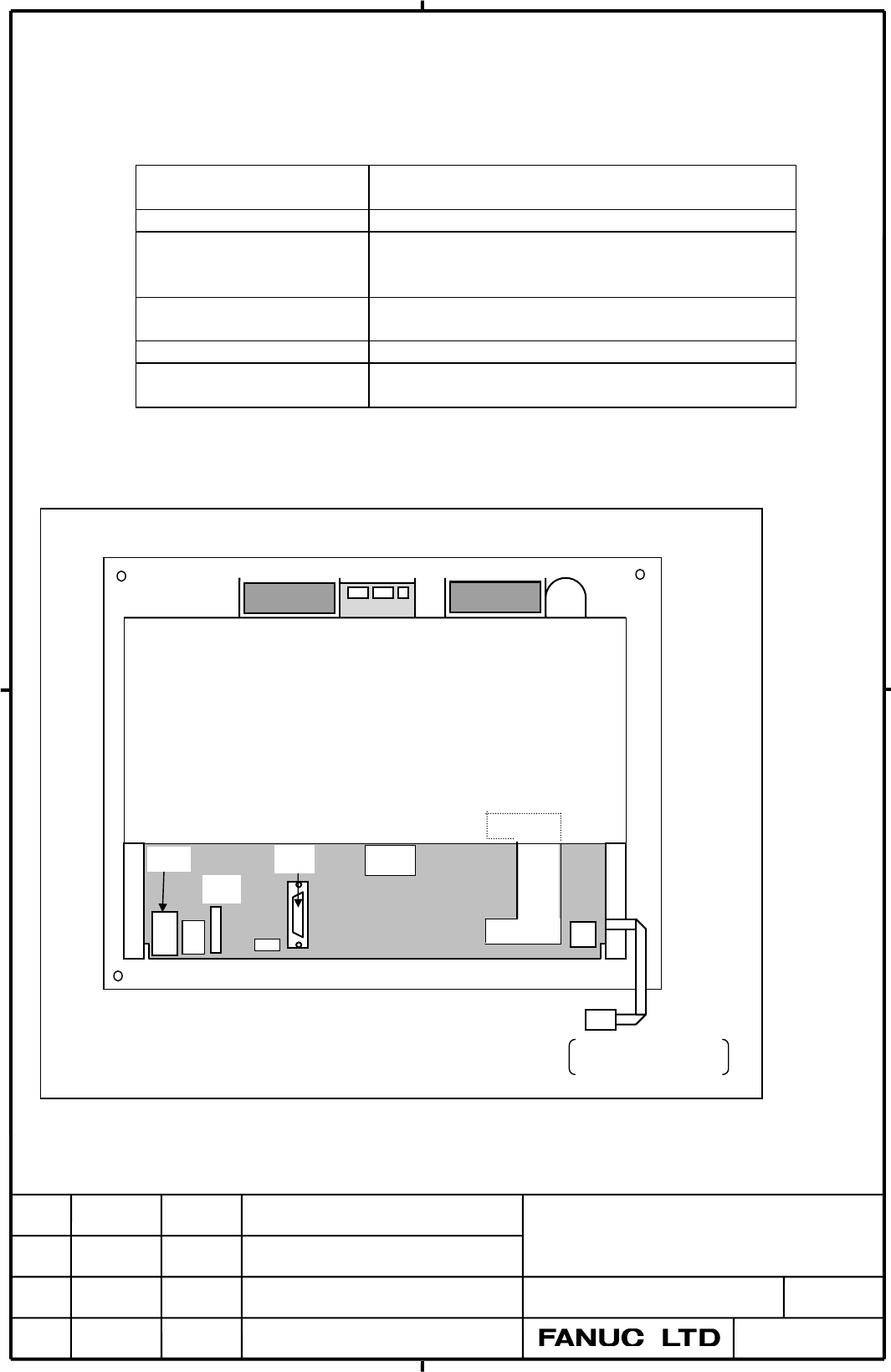

2.2. Connector location
View from backside
CFC1
COP7
COP7
JD40
CP1
CN9
CD38
(FUSE1)
CA60
Soft Key cable, in case
of unit with Soft Key
EDIT
SHEET 6
CUST
DESCRIPTION
DESIG.
DATE
CONNECTION and MAINTENANCE
MANUAL for
LCD Unit for is Series CNC
A-80907E
TITLE
DRAW. NO.
