7.UNITS B-70265EN/02

- 144 -

7.7 INVERTER

7.7.1 Checking the Parameters

With the digital operator's panel attached to the inverter, all

parameters can be set and checked. Operate the digital operator's

panel with the power to the oscillator turned on.

The parameters of an inverter purchased by FANUC are set before

shipment from the factory. So, usually, the parameters need not be

changed. If parameters need to be modified for a reason, detach the

cable connected to terminal No. 2 (soft lock signal) of the inverter

terminal block.

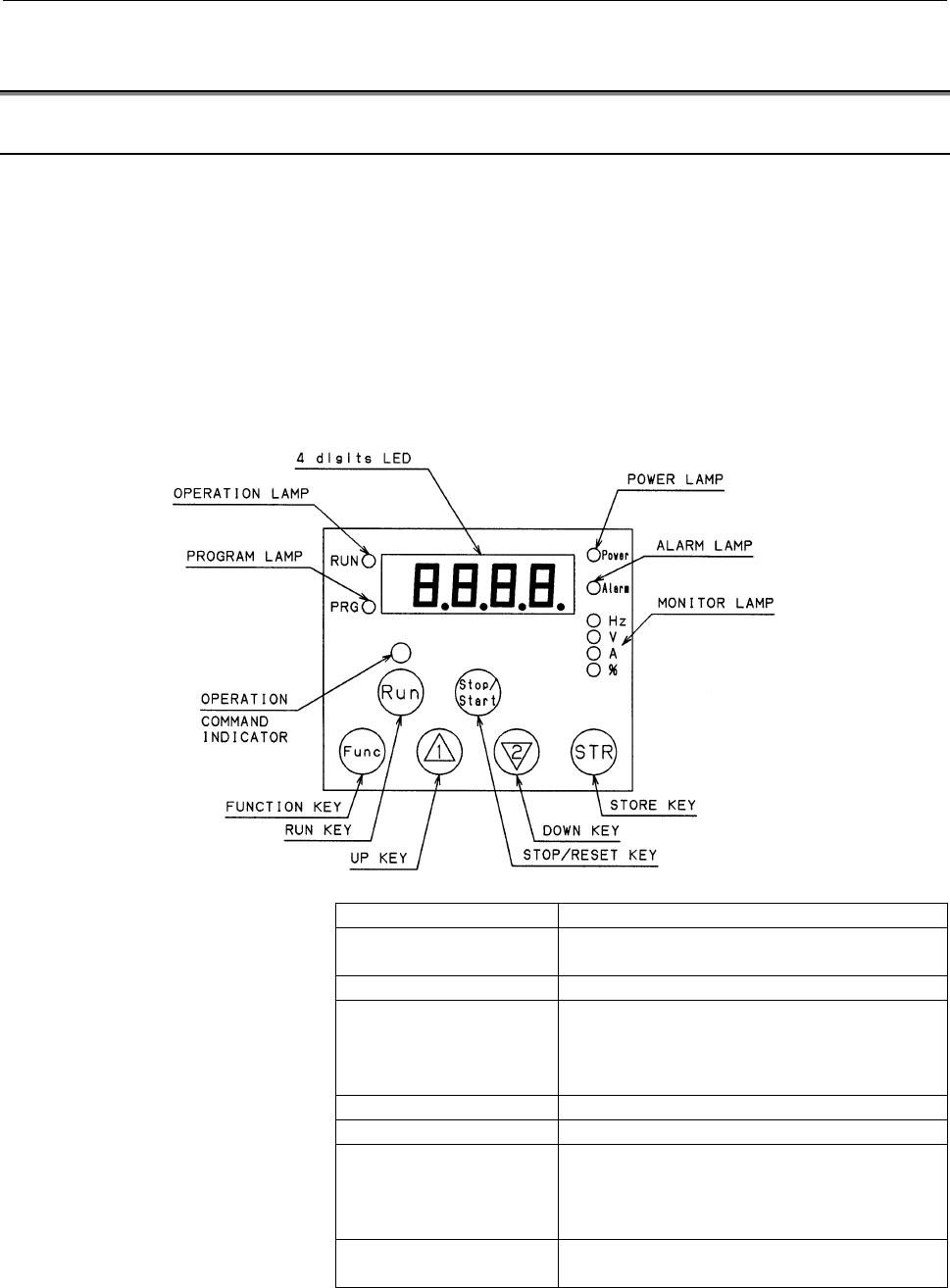

(1) Names and descriptions of the components of the digital operator's panel

Name Description

Monitor Displays settings such frequency and output

current values.

RUN (operation) lamp Turned on when the inverter is running.

Program lamp Turned on when the monitor displays the

setting of each function.

Blinks when a warning is given (when a setting

is incorrect).

POWER lamp Power lamp of the control circuit

ALARM lamp Turned on when the inverter trips

Monitor lamp Lamp for indicating the display status of the

monitor.

Hz: Frequency, V: Voltage, A: Current,

kW: Power, %: Ratio

Operation command

indication lamp

Turned on when the operation command

destination is set to the operator.
