B-65285EN/03 TROUBLESHOOTING 3.TROUBLESHOOTING AND ACTION
- 131 -
3.4.42 Alarm Code 82
The one-rotation signal of the motor sensor is not generated.
Troubleshooting when this alarm is issued
(a) The setting of a parameter is incorrect.
Referring to "FANUC AC SPINDLE MOTOR αi series
Parameter Manual (B-65280EN)," check the parameter for sensor
setting.
(b) The MZi sensor or BZi sensor is not adjusted correctly.
Adjust the sensor. If the sensor cannot be adjusted or the signal is
not observed, replace the connection cable and sensor.
(c) The external one-rotation signal is faulty.
Check the check pin EXTSC1 on the spindle check board. If the
signal is not generated per rotation, replace the connection cable
and position coder.
(d) The SPM is faulty.
Replace the SPM or SPM control printed circuit board.
3.4.43 Alarm Code 83
The SPM checks the pulse counts of phases A and B each time a one-
rotation signal is generated. The alarm is issued when a pulse count
beyond the specified range is detected.
(1) If this alarm is issued when the cable is moved (as in the case
where the spindle moves)
The conductor may be broken. Replace the cable. If coolant has
penetrated into the connector, clean the connector.
(2) Troubleshooting in other cases
(a) The setting of a parameter is incorrect.
Referring to "FANUC AC SPINDLE MOTOR αi series
Parameter Manual (B-65280EN)," check the parameter for
sensor setting.
(b) The MZi sensor or BZi sensor is not adjusted correctly.
Adjust the sensor. If the sensor cannot be adjusted or the
signal is not observed, replace the connection cable and
sensor.
(c) The shielding of the cable between the sensor and SPM is
faulty.
Referring to "Connection," in "FANUC SERVO
AMPLIFIER αi series Descriptions (B-65282EN)," check
the shielding of the cable.
(d) The signal cable is bundled with the servo motor power lead.
If the cable between the sensor and SPM is bundled with the
servo motor power lead, separate them from each other.
(e) The SPM is faulty.
Replace the SPM or SPM control printed circuit board.

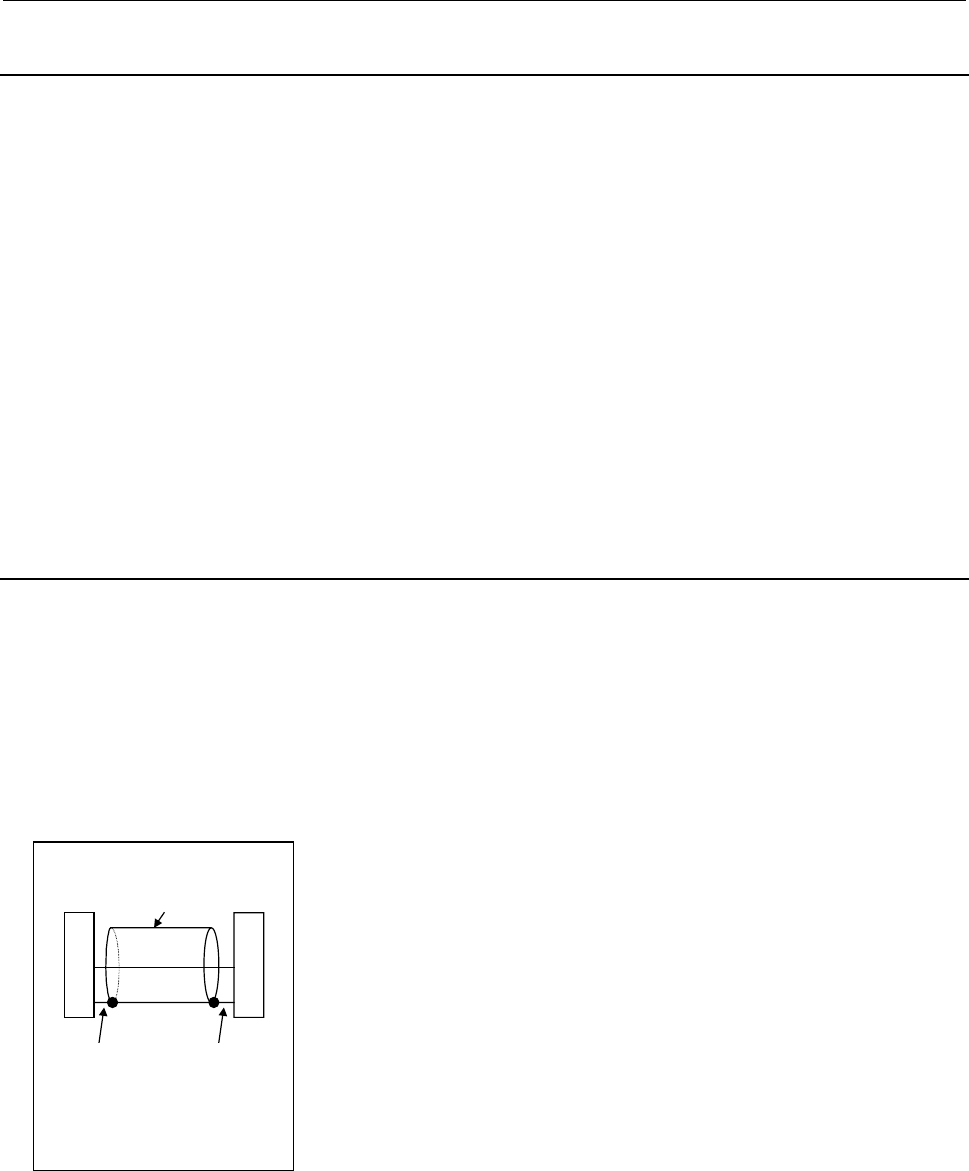

S
P
M
Sensor
The cable is
connected to the
pin specified in
the specifications
on the sensor
side.
The cable is
connected to
pin 10 on the
SPM side.
Shielded cable
MZ
i
or BZ
i
sensor
