Method for opening the lower cover of the Servo Amplifier alpha i series. Additional Manual Page 2

Additional Manual
01
Ed. Date
Takeshit
Name
Newly designed
Detail of modification
Subject
DWG.N
o.
Method for opening the lower cover
of the FANUC Servo Amplifier
á
i series
A-53866E-410
FANUC LTDFANUC LTD Page
1/ 2
17.Dec.01
Method for opening the lower cover of the FANUC Servo Amplifier αα i series
In the FANUC Servo Amplifier αi series there is a projection for locking the lower cover on the
right side of it. If you open the lower cover, you must take off the projection.
Method for opening the lower cover is as follows.
[Method for opening the lower cover]
Hold the right side of the cover. Push the cover toward outside and pull it.
Show the following picture.
Object : Servo Amplifier αi series 60mm-width Unit, 90mm-width Unit,
and 150mm-width Unit
(150mm-width Unit is taken in following picture)
Note) It is easy to open the lower cover by holding the right side and pushing it toward outside
because there is a projection for locking the cover on the right side of the Amplifier.
If you open the lower cover forcibly holding another place, the projection may be
broken.

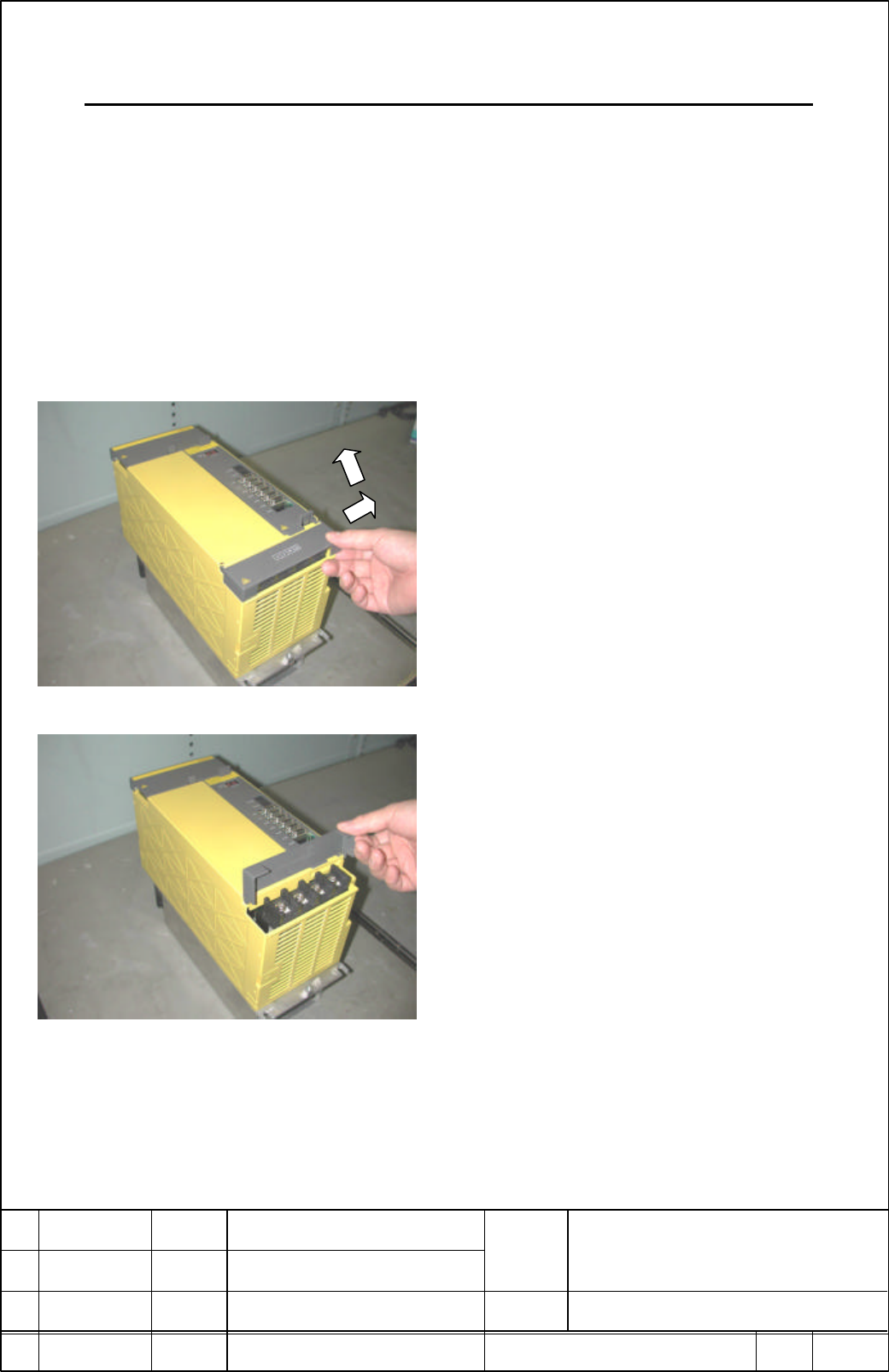

Hold the right side of the cover.
Open it (2) while pulling the cover to
the right direction (1).
(2)
(1)
