B-75044EN/02 5. OBSERVATION OF FA SYSTEM FOR PC
-169-
5.1.2 The Contents of Transmission Log File

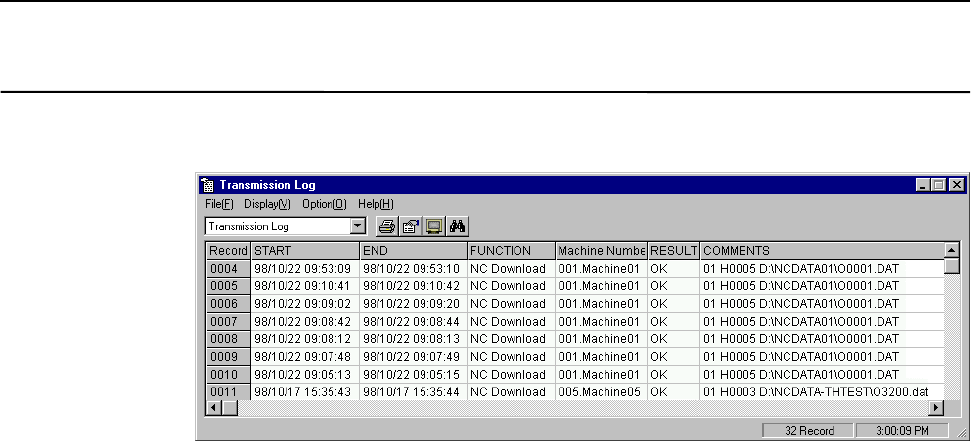

The following shows the display of the transmission log.
K START
The time when the transfer of NC program is started.
K END
The time when the transfer of NC program is finished.
K FUNCTION
Indicates the type of the transfer.
K Machine
Indicates the machine which an NC program is transferred to.
K RESULT
Indicates the result.
If the transfer is succeeded, a “OK” is displayed. If it is failed, the
error code of FA SYSTEM for PC is displayed. As for error codes ,
refer to “C. Error Code”.
K COMMENTS
Indicates the comment such as the file name of the transferred NC
program.
