FA System for PC Operators manual Page 200

Operators manual
B-75044EN/02 6. LIST FILE MANAGEMENT
-187-
Transfer by the [Edit] menu is specified as follows:
1 Select the record whose transfer order you want to change in the [List
File Details] list box.
2 Set the [Skip], [Pause] or [Cancel] commands in the [Edit] menu.

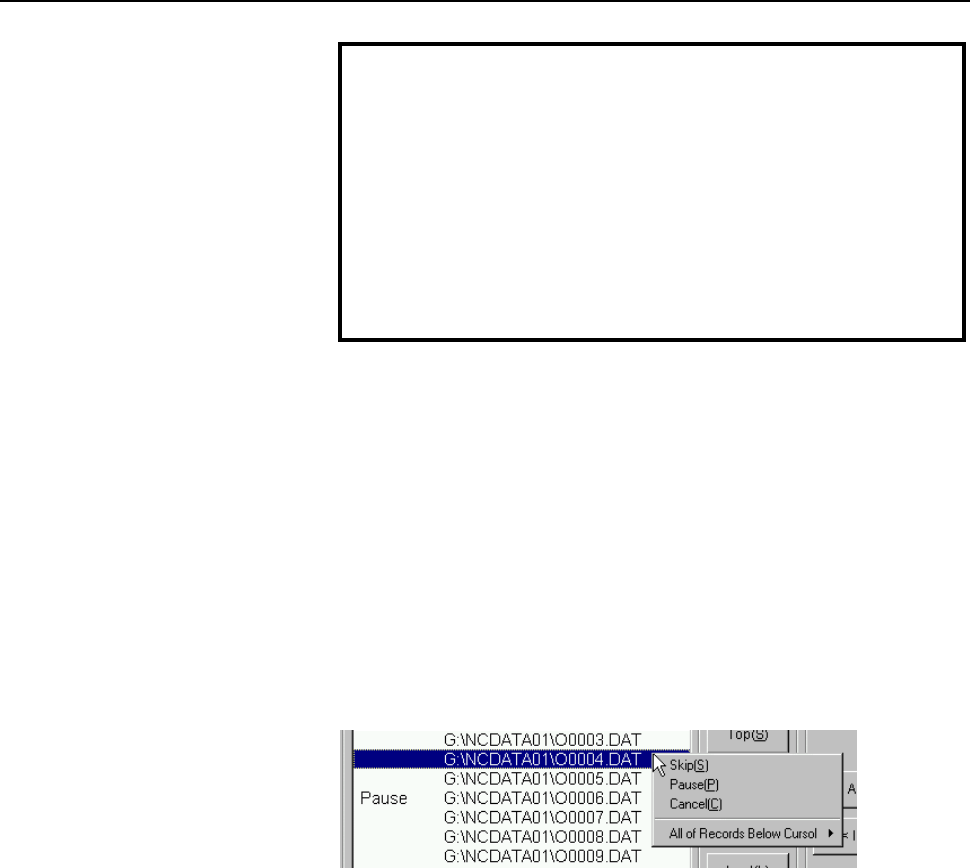

In addition to transfer by the [Edit] menu, you can also instruct transfer in the
context menu of the right mouse button.
1 Bring the mouse cursor to the record whose transfer order you want to
change in the [List File Details] list box, and press the right mouse
button.
2 The same menu as the [Edit] menu appears.
Registering Files in the Same Directory as List Files Using Only the File Name
Normally, the files to transfer to the List File are registered using their full
path.
The Option screen allows you to select whether to register only a file name or
register the file by its full path.
Specify registration by only a file name when you do not want to register a file
using its full path to copy a List File to another machine having a different
default directory.
To set this, click the [Option] command in the [Tool] menu.
NOTE
The meanings [Cancel] in Edit List File screen and [Cancel] in List File
Monitor screen are different.
K [Cancel] in Edit List File screen
[Skip] and [Pause] are canceled by all transmission using
specified List Files.
K [Cancel] in List File Monitor screen
[Skip] and [Pause] are canceled by only the List File currently
being transferred.
